Brand Name: YUANHAO

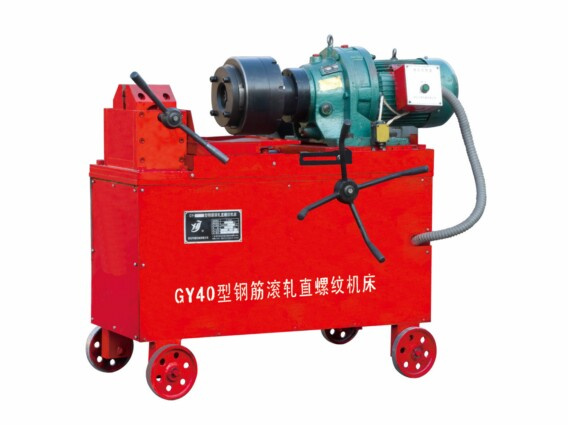

Commodity: Thread Rolling Machine
Model Number: GYL-40F
Automation: Semi-automatic
Place of Origin: HEBEI China (Mainland)
Application: peeL rebar rib&roll thread on rebar
Technical Data: Gross weight 500KGS
Electric motor power 4.0KW
Working voltage 3-380V, 50Hz
Dimension 1250*750*1050mm
Output rotate speed of reducer 62 R. P. M
Available rebar diameter Φ16-Φ40mm
Thread Pitch "p=2/P=2.5 Φ12-Φ22
P=3 Φ25-Φ32
P=3 Φ36-Φ40 "
Thread Angle: 60° / 75°
The Max Thread Length: 100mm
Rotated Speed: 62r/min
Reduction Ratio: 1: 17
Production Capacity: 800-1, 000 threads/day
Certification: ISO9001: 2000
Warranty: According to the factory policy
Packaging Detail: Wooden Case
Rebar thread rolling machine is mainly used in processing straight thread head of 12-40mm HRB335, HRB400 reinforcing steel bar.
(1) Strip rebar rib first. Rebar thread rolling machine
(2) Roll parallel thread on rebar end. Rebar thread rolling machine
(3) Splice two pieces of threaded rebar with coupler.
(3) contact with coupler
Machine Advantages:
1) High precision thread
2) High connection strength rebar thread rolling machine
3) High construction efficiency
4) Simple operation
5) Saving material rebar thread rolling machine
6) Lower cost
7) Shortening construction period
8) Reduce the labor intensity of workers rebar thread rolling machine
It is the upgrading technology of steel bar connection in the construction industry.
