1. Tilapia floating fish feed pellet machine Description:
Fish food processing line is suitable to make dry fish food pellet (catfish, aquarium, Tilapia, Freshwater fish and tropical fish etc. )
1). All fish food equipments are made of stainless steel.
2). The fish food whole line fully continuous and automatic.
3). Dingrun Company provide basic fish food receip according to your require.
4). The final fish food shapes and sizes can be various by changing the mould.
5). Supply different size mould free.
6). Packing machine could be supplied to work with the line (depend on your require).
2. Raw materials for Tilapia floating fish feed pellet machine:
Most fish food pellet inculding animal protein and plant protein, Plant protein adopts corn flour, rice flour, wheat flour, soybean flour, peanut cake powder...Animal peotein adopt fish meal, shrimp meal, crab meal, sleeve-fish meal and so on. You can add other ingredient according to the local fish live require.
3. Tilapia floating fish feed pellet machine can make the follow fish food Products:
This fish food processing line(Dingrun Company) can be used to produce fish food pellets, the pellets size can be from 1.0mm to 9.0mm by adjusting the extruder dies, Meanwhile this line can used to produce dog food, cat food by change some place. You can buy one whole line to make fish food and dog cat food together.
4. The Tilapia floating fish feed pellet machine Capacity(Dingrun Company):
100-150kg/h, 220-260kg/h, 400-500kg/h, 800-1000kg/h

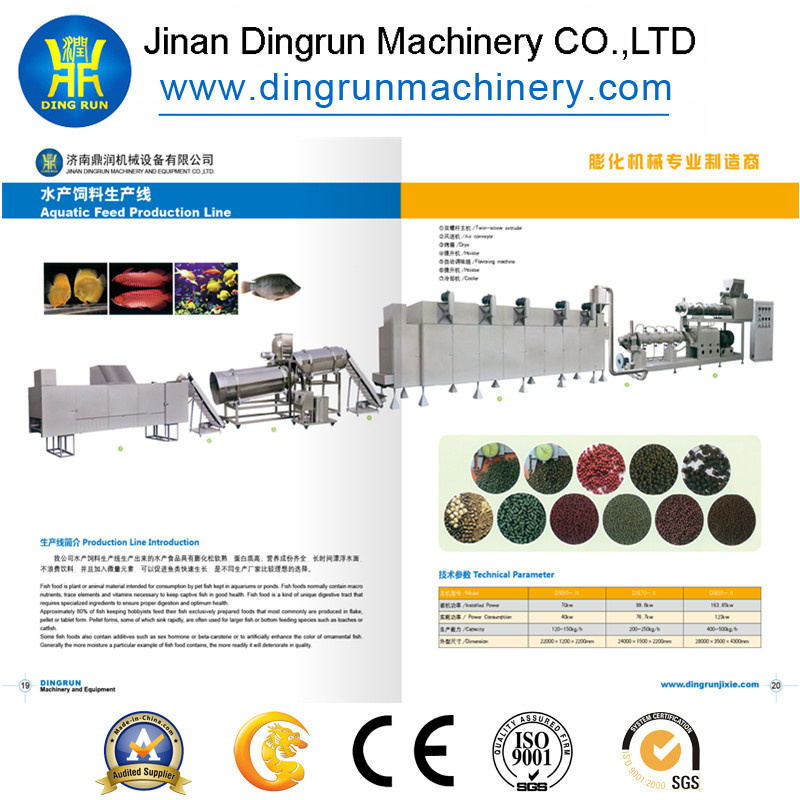

5. The Tilapia floating fish feed pellet machine (220-260kg/h)Flow chart:
Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
6. China standard industrial Voltage for the machine:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400V 415V 480V...).
7. Machines materials:
All the fish food machines are made by stainless steel, this whole line is with reasonable design and with high automation; The screws are made by alloy steel, with building block system structure and self-cleaning function.
Model
Parameters | DSE65 | DSE70 | DSE85 | DSE-90
(Gas style drying) |
| Input Voltage | 380V/50Hz ,3P | 380V/50Hz ,3P | 380V/50Hz ,3P | 380V/50Hz ,3P |
| Installed Power | 70 kw | 100 kw | 150 kw | 128.2 kw |
| Power Consumption | 40 kw | 70kw | 120kw | 116 kw |
| Capacity(output) | 100-150 kg/h | 200-300 kg/h | 300-550 kg/h | 600-1000kg/h |
| Installation Size | 17.0 x1.2x 2.5 m | 18.0 x1.2x 2.5 m | 22.0 x1.2x 2.5 m | 28.0 x3.0x 3.5 m |
| Manpower Needed | 1 ~2 workers | 1 ~2 workers | 1 ~2 workers | 1 ~2 workers |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel
|
Jinan Dingrun Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.
Our company congregates an exceptional food machine engineering team, personal customer service center and high quality manufacturing capabilities have evolved exponentially, We are working hard on explore constantly not only in the research of extrusion technology, but also in food technics to benefit our clients producing newfangled food in their markets. It making us become one of the preeminent providers of reliable extrusion equipment world-wide. Now we can guarantee customers superior quality machines up to design requirements and perfect working state.
With our many years research and development extrusion technics has been widely used in more fields. Our products consist of core filling extrusion snack machine, corn chips machine, bugles machine, twin screw food extruder, breakfast cereal and corn flakes machine, pet food machines and floating fish feed machinery, dog chewing food machine, aquarium fish feed machines, textured soya protein machine, modified starch machine, artificial rice machine, bread crumb machine, single screw extruder, potato chips machine and biscuits machine, instant flour machine, flat bread machine, ect. We can also provide special design and product according to our clients` special requirements.
Now, we have exported our machines to many countries in the world, such as Malaysia, Indonesia. Pakistan, Sri Lanka, Brazil etc., and get good reputation from the clients. Some of them become our agents in their area. We hope to have long friendly business relationship with more clients all over the wrld in the future.
