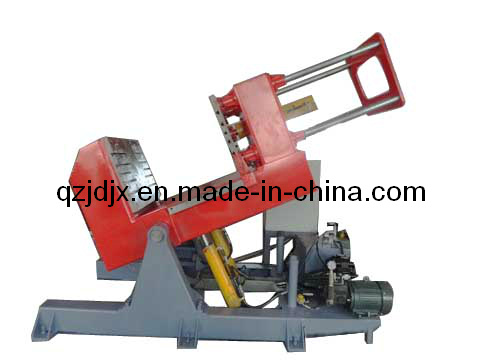

Tilt Gravity Die Casting Machine (JD-700)

Tilt Gravity Die Casting Machine (JD-700)
Price: US $ 14300set
Trade Terms: FOB
Min Order: 1set
Pay Type: T/T
√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time

JD700-5K  Aluminum alloy casting machine
Technical parameters:
1.Maximum size of mould frame:(700*500*700)mm
2.Maximum clamping force: 40KN
3.Maximum opening mould :32KN
4.Minimum shut height:350mm
5.Maximum stroke of dynamic mold:350mm
6.Top core oil cylinder output:38KN
7.The angle of working platform rotation:0°- 90°
8.The speed of working platform rotation:8°/S≤V≤4°/S
9.Hydraulic station power:3.75kw
10.Hydraulic system pressure rating:6.5Mpa
11.Hydraulic system working pressure:5.5-10Mpa
12.Control:manual,automatic
13.Plunger pump (Taiwan imports):25cc/rev
14.Human-computer conversation:Siemens touch screen

The advantage of gravity casting technology
ItemGravity casting technologyFoundry casting technology
  Product qualityThe structure of the casting is compact
and both of its inside and outside surfaces
are smooth . The  sizes of castings are
concordant . The fine machining
speed is fast  and polishing rate is high .
There are some dregs and sands on
the surface of the castings. Its structure
is loose and both of the inside and
outside surfaces are rough. The sizes of
castings are not concordant . The fine
machining speed is slow and polishing
rate is low.
  Qualified rate92%~98%, high qualified rateHigh rejection rate
Labor productivityIt needs only 7 persons .It needs more than 14 persons .
   Pollution situationCasting temperature is low . Its pollution
and noise are also low .
It produces smoke . Its pollution and noise
are high .

Prod Model: JD-700
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Size Of Mould Frame: (700*500*700)mm
Maximum Clamping Force: 40kn
Maximum Opening Mould: 32kn
Minimum Shut Height: 350mm
Maximum Stroke Of Dynamic Mold: 350mm
Top Core Oil Cylinder Output: 38kn
The Angle Of Working Platform Rotation: 0°- 90°
Hydraulic System Pressure Rating: 6.5MPa
Plunger Pump (Taiwan Imports): 25cc/Rev
Human-Computer Conversation: Siemens Touch Screen
"Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.

Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.

We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
