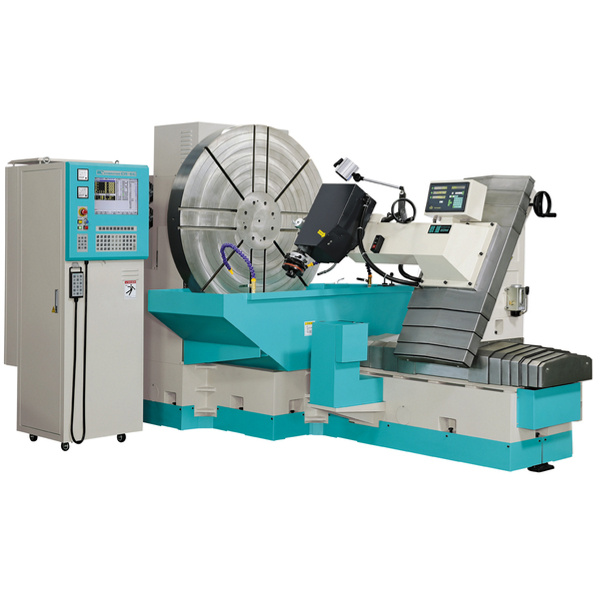

Main Unit Features:
1. Closed-loop feedback control on C-axis assures extra high positioning accuracy of up to 0.001° . (Patented)
2.30° Slant column construction. (Patented)
3. Spindle tilts ± 90° Forward and backward. (Patented)
4. Designed for machining various tire molds, such as segmented parting mold, two-piece mold and stamping steel plate.
5. The electrical discharge machining system is specially designed for tire mold machining.
6. State-of-the-art CNC control with 15" TFT LCD monitor.
7. Comprehensive lubrication design ensures extra smooth movement.
Rotary Optical Scale on C-axis:
The C-axis is equipped with an imported high precision rotary optical scale, providing a close-loop feedback control. This is a combined with the use of DC servo motor for positioning control, featuring extra high positioning accuracy of up to 0.001° . This outstanding feature makes the machine excellent for producing high precision tire molds. (Patented)
Features of CNC Control:
The control employs INTEL PENTIUM industrial grade master board.
15" TFT LCD monitor.
Conversational operation interface.
Automatic table type editing for 10-step machining programs creation.
Tungsten steel, extra hard and special material eroding circuit.
Graphite machining circuit is ideal for machining bronze and graphite.
MPG handwheel for micrometric positioning adjustment. (Optional)
Unlimited machining programs fully meet flexible machining requirements such as various angles and patterns of tire molds.
Relative coordinate, absolute coordinate and constant indexing function make the machine suitable for machining any tire mold.
Random home position function. Machining home position can be set as desired.
Specially designed protection function to prevent electrode from bumping against the mold.
Indexing accuracy 0.001° .
13. Allows for inconsistent indexing machining.
| Specification for machine unit: |
| CNC600T |
|
|
| X-axis turning angle | degree | 0-90 |
| Table travel (X1-axis) | mm | 70 |
| Table travel (Y-axis) | mm | 480/700 |
| Table travel (Z-axis) | mm | 180 |
| Quill travel (Z1-axis) | mm | 890 |
| Worktable dimension | mm | 1300 |
| C-axis angle | degree | 360 |
| W-axis(Z-axis F/B) revolving angle | degree | Front 40°/Back 40° |
| W1-axis(Z-axis L/R) revolving angle |
| Left 30°/Right 30° |
| X-axis resolution | mm | 0.05 |
| Y-axis resolution | mm | 0.001 |
| Z-axis resolution | mm | 0.001 |
| C-axis resolution | degree | 0.001 |
| Control type (C-axis) |
| Fully enclosed |
| Max. Electrode weight | kg | 40 |
| Max. workpiece weight | kg | 2000 |
| Max. workpiece diameter | mm | 1500 |
| Max. workpiece thickness | mm | 500( with jigs) |
| Work tank inner dimensions (WxDxH) | mm | 1264x764x427 |
| Oil tank dimensions (WxDxH) | mm | 2450x800x440 |
| Max.Capacity of dielectric fluid | liter | 800 |
| Machine unit weight( including indexing table) | kg | 5300 |
Creator Precision Co., Ltd. Was established in Taiwan at 1986.
In 1997, Creator Industry (Suzhou) Co., Ltd. Was found to extend Mainland China market. Till now, the registered capital is USD 5, 080, 000. The new factory covers 24, 680sqms and holds a building area of 19, 000sqms. There are 250 employers which assure the annual production at least as 600 sets of EDM and 100 sets of VMC.
After Service Team:
Our professional experience and after sale service enhance the worldwide sales network. We hold more than 50 professional engineers to support our after-sale service system, which assures excellent and fast service to our customers.
Competitive cost control:
In machining department we process various machinery casting by advanced equipments: LEAD CHV850/CHV1020/CHV1500 VMC, FEMCO R2 horizontal boring machine. Harford 326 planer-type VMC. HC 6m horizontal & vertical milling machine, 2.5m vertical planer-type milling machine, 2000 horizontal & vertical milling machine. SW 3m vertical planer-type milling machine. TOPONE 3HG vertical milling machine, 6K milling machine. LINGYUN 53K vertical milling machine. FREEPORT 3468 surface grinding machine. KENT 715A/510 surface grinding machine. PROTH 60120 steering grinding machine. MASTER 430 lathe. QIHANG Z6163 lathe. NANJING 4TH 3050 radial drilling machine. KS HEJI S10N horizontal saw-banded machine. LEAD CJ345 EDM. WUXI GGC15-0.3 high-frequency surface heat-treatment machine etc.
