Tire vulcanizing machine
1. For PCR, LTR tire
2. Mechanical BOM type
3. Two cavities
4. High quality with competitve price

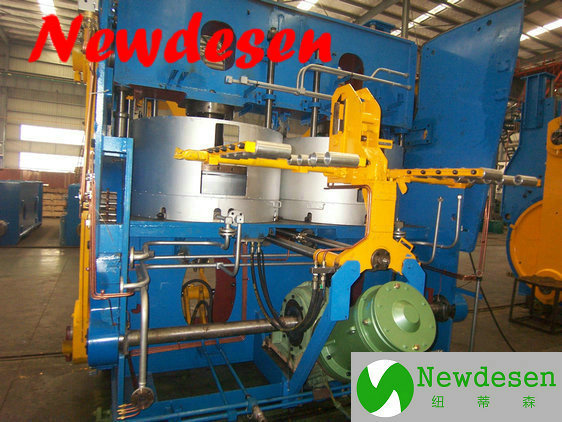

Tire vulcanizing machine for PCR and LTR tires (B-Type)
This curing press is a mechanical type, the beam moves vertically and is tilting over for tyre loading and unloading. The center mechanism is BOM type and the curing mould is heated by platen. Other features of this type are: Dual-column vertical chuck loader, Dual-cylinder unloading device, PRO-Bar style mould stripping unit. As per customer's request, auto mould-adjusting device, SMO drive device, PCI and single, double or triple position Green tyre holder is available. Curing piping can also be made to order.
This curing press uses PLC for real-time control and industrial PC for Human-Machine Operation Interface. All parameters can be re-set during curing cycle, and real-time data collection/ preservation. Alarming, as well as data back dating can also be realized through this system. With Ethernet interface, Curing press group management is available.
This curing press is applicable for curing PCR, LTR and bias tyres with Nitrogen or steam as curing medium.
| Item |
| Unit | Specification |
|
|
|
|
|
| 1050 | 1145 | 1170 | 1220 |
| Curing cavity No. |
|
| 2 | 2 | 2 | 2 |
| ID of Mould shield |
| MM | Φ 1050 | Φ 1145 | Φ 1170 | Φ 1220 |
| Max squeezing force |
| KN | 1370x2 | 1715x2 | 1715x2 | 1800x2 |
| Height of mould |
| MM | 155-381 | 230-490 | 200-460 | 300-560 |
| Center Mechanism |
|
| BOM | BOM | BOM | BOM |
| Diameter of suitable tire bead |
| Inch | 12-16 | 12-18 | 13-20 | 13-20 |
Max O. D.
of cured tire | Segmented mold | MM | 770 | 800 | 850 | 850 |
| Two piece mold | MM | 820 | 850 | 900 | 900 |
| Max section width of cured tire |
| MM | 330 | 360 | 360 | 360 |
| Max height of green tire |
| MM | 450 | 550 | 650 | 450 |
| Designed mould open/close time |
| S | 24/18 | 28/18 | 24/19 | 24/19 |
| Max load of VCL |
| Kg | 60 | 60 | 60 | 60 |
| Max weight of mold |
| Kg | 2500 | 2500 | 2500 | 3000 |
| Max external pressure |
| Mpa | 1.4 |
|
|
|
| Max internal pressure |
| Mpa | 2.8 |
|
|
|
| Hydraulic water pressure |
| Mpa | 1.8-2.1 |
|
|
|
| Compressed air pressure |
| Mpa | 0.7 |
|
|
|
| Control air pressure |
| Mpa | 0.25-0.35 |
|
|
|
| PCI inflation pressure |
| Mpa | 0.7 |
|
|
|
| PCI rim width |
| MM | 76-203 | 100-285 | 100-285 | 100-285 |
Qingdao Newdesen Industry Co., Ltd. is one of the leading manufacturers of rubber machinery in China and located in Jiaonan, Qingdao, China and has got ISO9001 quality system certificate.
The main products are semi-steel radial tire building machine (First stage and second stage), all-steel radial tire building machine (Two drum and three drum), tire curing press (45, 48, 55, 63.5, 65.5 inches), all kinds of conveyor belt press-lines, all kinds of batch off and large two-roll mixing mill series, etc. Our company can also design and manufacture all kinds of non-standard rubber machines according to the requirement of clients. We can provide the service for large projects including machines and technology of bias tire, all-steel radial tire, semi-steel radial tire and all kinds of conveyor belt, etc.
