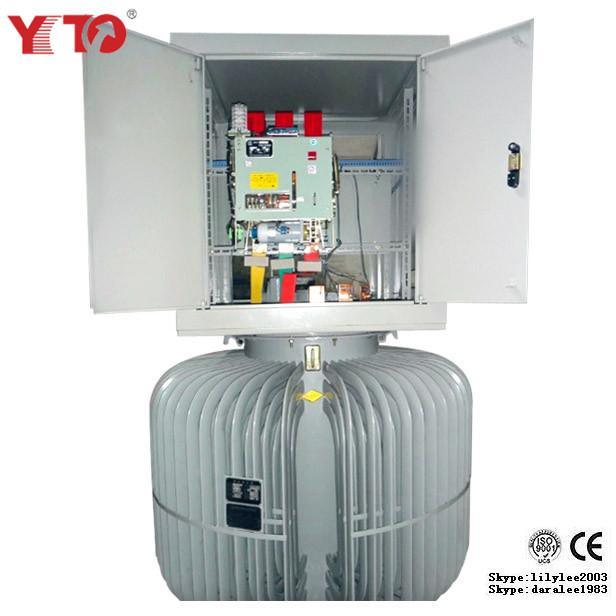

Tnsja Oil Immersed Induction Voltage Stabilizer

Feature:
The oil immersed voltage stabilizer is composed of voltage regulator and transformer SSTS (including, oil tank, stator, rotor top Cover, drive control motor M, hand wheel, control circuit board and secondary circuit elements for voltage regulation control. It achieves the rotational voltage regulation through electric motor drive or hand wheel and gear coupling within the rotation range of 180o. Besides, it is provided with the electric SS limit and mechanical limit on the upper end of the oil tank. For electric SS limit, the power supply of motor is switched off by a limit switch and for the mechanical limit, the rotational limit is stopped by bolt protector. The stator winding and rotor winding are fixed by the base frame and put into the oil tank with 10 # transformer oil. When the load generates heat, the heat dissipates from the radiating pipe by the way of Oil-immersed cooling. The oil immersed voltage stabilizer has the functions of phase failure, phase loss, overvoltage and over-current protections, and its main circuit has the characteristics of contactless voltage regulation, no mechanical wearing, no spark, no interference and low failure rate. In addition, this voltage stabilizer has the advantages of high impact resistance, super strong instantaneous overload capacity, long service life and maintenance free.

A. Stepless voltage adjustment (brushless)
With inductive and contactless voltage regulation, the voltage stabilizer can increase and decrease the load voltage linearly.
B. Excellent features
By using high-magnetic-inductivity silicon steel sheet made in Japan, this voltage stabilizer minimizes the no-load loss and no-load current, and with its performance utilized best, reduces power loss.
C. Robust, durable and long life expectancy
The internal body of this voltage stabilizer is induction voltage regulator IVR, containing no carbon brush and its main characteristics are permanent wear-proof, robust and long service life.
D. Efficiency >98%, with no waveform distortion

Application:
Large size machine tool, plastic mold factory, voltage stabilization for workshop and whole factory etc.

Specification:
Phase No.: Three phase four system
Input voltage:
Phase voltage 220V+/-20%(176~264VAC), wire voltage 380V+/-20%(304~356VAC) or
Phase voltage 220V+/-30%(154~286VAC), wire voltage 380V+/-30%(266~494VAC)(Optional)
Output voltage: Phase voltage 220VAC, wire voltage 380VAC
Accuracy of voltage: +/-1-5%(adjustable)
Frequency: 50Hz/60Hz
Efficiency: >95%
Response time: <1.5S(against 10% input voltage deviation)
Ambient Temperature: -10C~+40C
Insulation resistance: >2MΩ
Waveform distortion: Non additional waveform distortion
Protection:
Over-voltage/ under-voltage, phase sequence, over current, overload and alarm device etc.
Over-load capacity: 1min. At the rated current of 2times
Electricity-resistance strength: Power frequency sinusoidal is 2000VAC without breakdown and flash over when it lasts 1min.

Remarks:
Custom-made specifications are acceptable.
