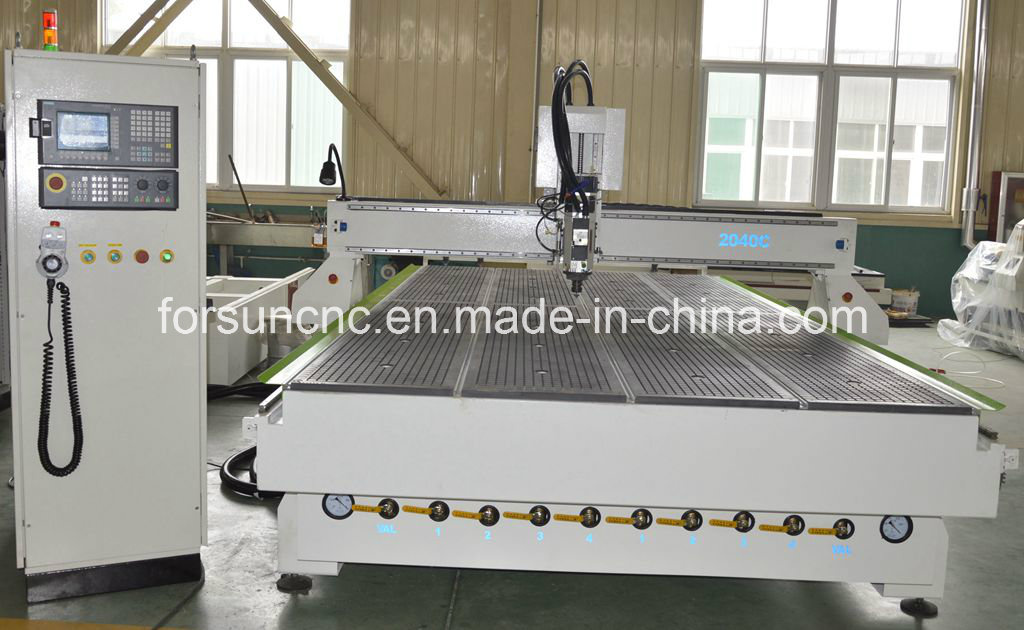

Tool Chang Cylindrical Wood Engraving Machine

Tool Chang Cylindrical Wood Engraving Machine
Price: US $ 20000/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Tool chang Cylindrical wood engraving machine
Cooperation brand: SIEMENS,HSD,DELTA, Schneider,TBI


Applicable Industry and materials:

1) Mould: wood,wax, wood, gypsum,foams,wax
 2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
 3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, ABS
 4) Decorate industry: Acrylic, PVC, MDF,plastic and soft metals such as copper, aluminum


Machine configurations of Alibaba China wood carving router machine

1) Working area: 1500mm*3000mm*200mm
2) T-Slot Vacuum Table
4) SIEMENS control system from Germany
5) SIEMENS servo motor and drives from Germany
6) 9.0 KW HSD air cooling spindle from Italy
7) DELTA inverter made in Taiwan
8) Automatic tool changer in line with 8 position
9) ArtCam software
10) OMRON Switch from Japan
11) Taiwan HIWIN Linear guide
12) TBI ball screw
13) 3PH 220V 60HZ / 3PH 380V 50HZ
14) Plywood case package

Option item of CNC Carving Engraving machine


1.  Water cooling or Oil-free air-cooled vacuum pump
2.  Dust collector system
3.  Oil mist cooling system (We suggest if processing on hard material)
4.  Original type3 software from France
5.  Carousel type auto tool changer
6.  Laser light curtain safety system

Technical parameter of CNC Carving Engraving machine

Technical Data
NODescriptionParameter
1X,Y,Z Traveling Positioning Accuracy±0.03/300mm
2X,Y,Z Repositioning Accuracy:±0.03mm/300mm
3Max. Rapid Travel Rate80000mm/min
4Max. Working Speed45000mm/min
6Spindle Speed0-24000RPM
7Command LanguageG Code
8Flash Memory512M
9ColletER32
10X,Y Resolution<0.03mm
11Running Environment Temperature0 - 45 Centigrade
12Relative Humidity30% - 75%
13Packing Size3520*2280*2500mm
14N.W.1500KG
15G.W.1700KG

Machine spare parts picture

 1.9.0kw HSD spindle original famoue brand from Italian,also can choose  Kolumb spindle



2.Auto tool changer in line of woodworking cnc router with atc




3.SIEMENS servo and drives system from Germany



Please Let's talk more details
Prod Model: FS2040C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Forsun
Work Size: 1300*2500mm
Controller: Siemens Control System
Motor: Siemens AC Servo Motor
Spindle: 9.0kw Hsd Spindle
Weight: 1800kg
Dimension(L*W*H): 3.75*2.28*1.95m
Max Working Speed: 45000mm/Min
Max Rapid Speed: 80000mm/Min
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: ISO
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles, THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer. As a machine builder, the exacting manufacturing processes we have created ensure that even custom systems can be engineered, manufactured and delivered with the shortest manufacturing lead times in the industry. We are near to you physically, and only a phone call or email away electronically for machinery, software and consumable sales as well as after sales support. Count on Forsun to work with you in your machine decision process, to build you an excellent quality CNC router that will work for years, and to continue to support you and your machine decision for years to come. We strive toward exemplary customer satisfaction, employee career fulfillment and corporate citizenship. Success in these areas, we believe, will yield long-term benefits for the Forsun brand, Forsun employees and our partners.
