Features

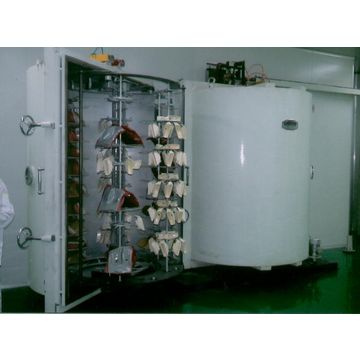

Magnetic control, intermediate frequency, multi arc ion plating equipment are applied in hardware, glass crafts, ceramic crafts, etc., such as watches, mobile phones, metal shell, sanitary ware, cutting tools, moulds, electronic products, crystal glass and so on.
This series of equipment are mainly the technology integration of dc magnetron sputtering (set), intermediate frequency sputtering and arc ion , can adapt to the coating material,
No matter metal , medium or compound material, can take advantage of the sputtering process for coating and film forming, and improve the film adhesion, density, complex degree and color consistency. It can plate TiN and TiC, TiCN and TiAlN, CrN, CU, AU, diamond film (DLC), decorative film and nonmetal and its compound membrane and composite membrane layer. Programmable controller (PLC) + touch screen (HMI) combined electrical control system, fully automatic control.
Technical parameters
Film type
Black gold titanium nitride, titanium carbide, 7 colour titanium oxide and wear-resistant film, super hard film, diamond film, metal decorative film, etc
The power supply type
Dc power supply, intermediate frequency power supply, arc power supply, filament, pulse bias power supply
Mutli-arc target
Mutli-arc target5 or 18,
The twin target
Intermediate frequency twin column target or target plane (1-4cuples)
Vacuum chamber structure
Vertical before the door structure (double or sink type cooling water jacket type), rear extraction system
Vacuum system
Rotary vane pump, roots pump and diffusion pump + maintain pump (or optional: molecular pump, cryogenic pump, cryogenic system)
Heating system
From room temperature to 350 degrees adjustable control (PID temperature control), stainless steel heating tube heating
Pneumatic system
Mass flow controller (1-4line)
Ultimate vacuum
6×10-4 pa(Light, clean room)
Extraction time
5×10-3 pa<13minutes
The rate of keeping air pressure
1h≤0.6pa
Work piece rotating way
Common rotation frequency conversion stepless control is adjustable, 0 to 20 RPM
The control mode
Manual, semi-automatic and fully automatic integration/touch screen + PLC
note
Vacuum chamber size can be customized according to
Zunhua Fu Sen Titanium Equipment Limited Company is located in ZunHua, HeBei Province. It is a professional manufacturer of vacuum coating equipment, and a high-tech enterprises to develop and promote coating technology, which has passed the national quality management system certification, and has the right to export.
Fu Sen titanium devotes to the technical progress, using domestic first-class mechanical equipment and raw materials with high technology, advance and reliability. Many technical backbone engage in the vacuum coating for more than twenty years, and they coperation with the many research institutes and universities in Beijing, Shenyang, Dalian, Xian, Ningbo, which makes Fu Sen has strong technical strength, and certain market share in PVD surface treatment industry.
Fu Sen holds on Quality first, Service first as purpose from the begining, General manager of the company and staff sincerely hopes to cooperate with customers at home and abroad.
