Tungsten Carbide Drawing Dies
1.100% virgin tungsten carbide
2. Long lifetime
3. Using for drawing non-ferrous metal
4. Advantage:
A) Wide range of sizes
B) Lower cost
C) Anti-corrosion and high wear resistance
Features:
1)Micro-grain and normal grades are optional to meet various demands
2)Automatic CNC powder press ensure high accuracy and consistency of carbide blanks
3)HIP sintering ensures stable and compacted microstructure
4)Innovative geometry with optimized lubricant zone, working zone and bearing zone
Application:
Drawing for different material like mild steel high carbon, stainless steel, nonferrous alloys, wires, bars, tubes, pipe etc.
Specifications:
Material: 100% virgin tungsten carbide

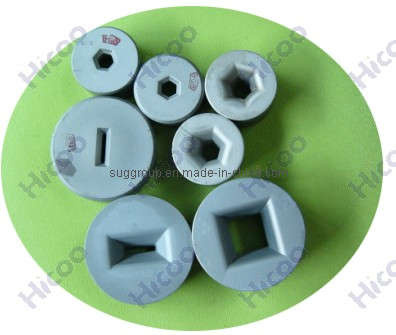

Hole Shape:
1)Round
2)Rectangle
3)Square
4)Regularhexagon
Type:
Finished Tungsten Carbide Drawing Dies
Semi-Finished Tungsten Carbide Drawing Dies
Whole Tungsten Carbide Drawing Dies
Tungsten Carbide Nib Dies
Tungsten Carbide Extrusion Dies
Recommended Grade:
YG6, YG8, YG6X, YG8X, YG15, YG20C, YD40, YD45 etc.
We will machine parts to your specifications. Small order be acceptable.
Any other special request, we can do according to customer request.
PACKAGE AS PER CUSTOMER REQUIREMENT
Apart from this, also manufacture all types Extrusion Wire Dies in Carbide, Repolishing and resizing PCD Drawing Dies.
|
Grade |
ISO |
Density
(g/cm3 ) |
HRA |
T. R. S
(Mpa) |
Application |
|
YG3X |
K05 |
14.9 |
≥ 91.5 |
≥ 1300 |
For drawing non-ferrous metal wire and stainless steel wire etc. |
|
YG6 |
K10 |
14.8 |
≥ 90.0 |
≥ 2150 |
For drawing steel wire and stainless steel wire etc. |
|
YG6X |
K10 |
14.8 |
≥ 92.0 |
≥ 1860 |
For drawing nonferrous metal wire,
steel wire, stainless steel wire
Good wear resistance and high toughness. |
|
YG8 |
K20-K30 |
14.8 |
≥ 89.5 |
≥ 2320 |
For drawing steel wire, stainless steel wire.
Good general performance. |
|
YG11 |
|
14.4 |
≥ 88.5 |
≥ 2420 |
For fabricating drawing dies of steel tubes and rods under high compreesibility ratio; punching,
stamping, forging tools under large stress. |
