Tungsten Carbide Mould Series
1. Tungsten Carbide Die for Tooling
Description
Tungsten carbide extruding dies are manufactured with the highest quality carbide. Featuring high compressive strength, this kind of tungsten carbide die can handle extreme pressure and can provide higher quality finished products. Our company can customize to your specifications. We provide both solid tungsten carbide dies and tungsten carbide inserted dies in a steel casing body. These dies can provide you with the same set-up of your present steel application, but give you the performance and quality of a carbide die.
Application
Tungsten carbide stamping dies can be manufactured in various sizes and configurations based on customers' drawings. We can provide both solid tungsten carbide stamping dies and tungsten carbide inserted dies in a steel casing body.
Tungsten carbide shaving dies are used to remove surface defects that occur in the drawing process. These are available in various sizes and configurations.

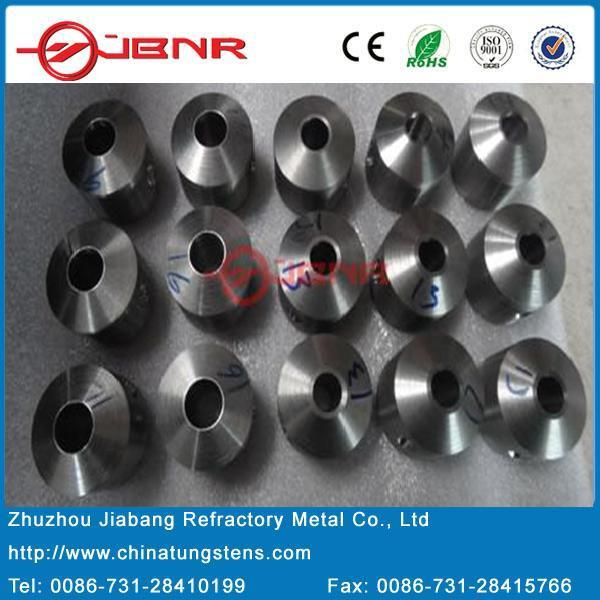

2. Tungsten Carbide Wire Drawing Die
Description
For steel wire and other large-size wire drawing applications, tungsten carbide die is ideal that makes cost savings a priority over die wear resistance and wire surface finish. Its hole sizes normally vary from 0.15 mm to 50 mm. Tungsten carbide die we manufacture characterizes excellent corrosive wear resistance and available sizes.
Application
Tungsten carbide wire drawing die is a wise economical choice for most ferrous wires, large diameters and applications where corrosive wear is the primary cause of die failure. This tungsten carbide die can be used for carbon steel wire of all sizes, tire cord and welding wire.
Properties and Applications of Tungsten Carbide Die
Grade | Density
g/cm³ | T.R.S
MPa | Hardness
HRA | Performance & application recommended | Approx
Grades in
China |
| MK11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | YG11 |
| MK15 | 14.0 | 2500 | 87.5 | For fabricating drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping and forging tools under large stress. | YG15 |
| MG20 | 13.5 | 2800 | 85.5 | For fabricating stamping dies, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | YG20 |
| MK05 | 14.9 | 2500 | 90.5 | Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. | YK05 |
| MK8C | 14.7 | 2400 | 88.5 | YG8C |
| YM32 | 13.7 | 2800 | 84.5 | Impact resistance forging dies. | YG16C |
| YM36 | 13.7 | 2800 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | YG18C |
| YM40 | 13.5 | 2850 | 83.5 | Dies for wear resistant or impact resistant application. | YG20C
ZL40.2 |
| YM45 | 13.3 | 2900 | 83.0 | Nut forming dies and high impact resistance forging dies. | YG22C
ZL40.5 |
| YM50 | 13.1 | 2950 | 82.5 | Stainless bolt header dies and rollers. | YG25C
ZL40B |
| YM90A | 13.2 | 3200 | 82.0 | Screw cap forming dies with high impact resistance (Highest impact resistance forging dies). |
|
Package and Transformation
We pack tungsten carbide dies in plywood case and send them by ocean or air.
