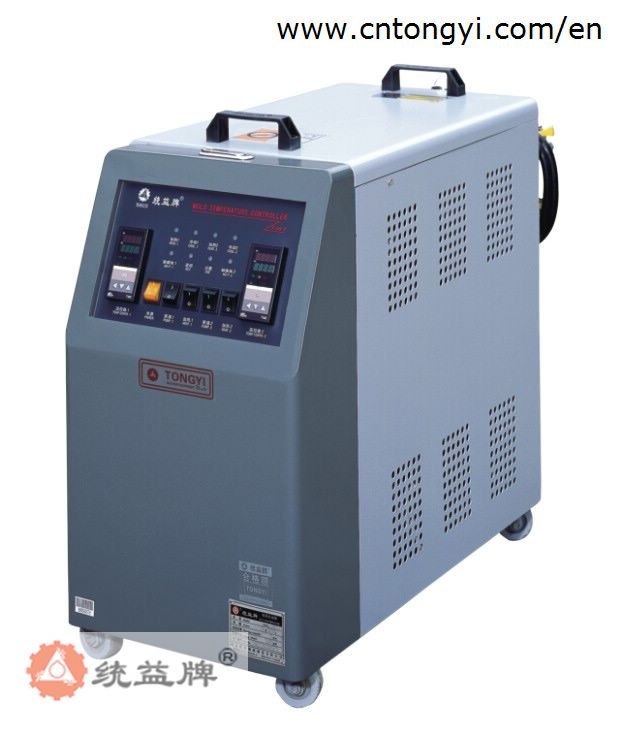

SAFETY SYSTEM of the two in one precise mould temperature controller:
1. The two in one precise mould temperature controller with electric power lack-phase & reversed-phase protector and signal light
2. The two in one precise mould temperature controller with heating tube overload protector
3. The two in one precise mould temperature controller with pump overload protector and signal light
4. The two in one precise mould temperature controller with oil overflow protection and reserved interface
5. The two in one precise mould temperature controller with butterfly valve design for safe operation and maintenance
6. The two in one precise mould temperature controller with pump rolling back protector and signal light
7. The two in one precise mould temperature controller with lack-media buzzer, protector and signal light
8. The two in one precise mould temperature controller with built-in ultra temperature protector and temperature controller
9. The two in one precise mould temperature controller with automatic oil recycling installation and reserved interface for clean and economic mould change
10. The two in one precise mould temperature controller with explosion-proof oil circuit design for safe operation and maintenance
FEATURE
1. The two in one precise mould temperature controller with two controlling system to control the temperature of the front and back moulds with different temperature requirement at the same time
2. The two in one precise mould temperature controller with heat transfer media of water or/and heat inductive oil on demand
3. The two in one precise mould temperature controller with temperature controller of Intelligent PID automatic calculation to display and control accurately the required mould temperature with the accuracy of 1º C.
4. The two in one precise mould temperature controller with two-stage heating structural design to adjust the electric power according to the required temperature, and save time and electricity
|
MODEL |
PUMP POWER HP |
HEATING POWER KW |
PUMP FLOW L/MIN |
PUMP PRESSURE |
INLET OUTLET TUBE DIAMETER FT |
DIMENSIONS MM |
WEIGHT KG |
|
TMC-66 |
0.5/0.5 |
6/6 |
40/40 |
2.2 |
3/8"*2 / 3/8"*2 |
650*350*600 |
75 |
|
We reserve the right to change specifications without prior notice. |
