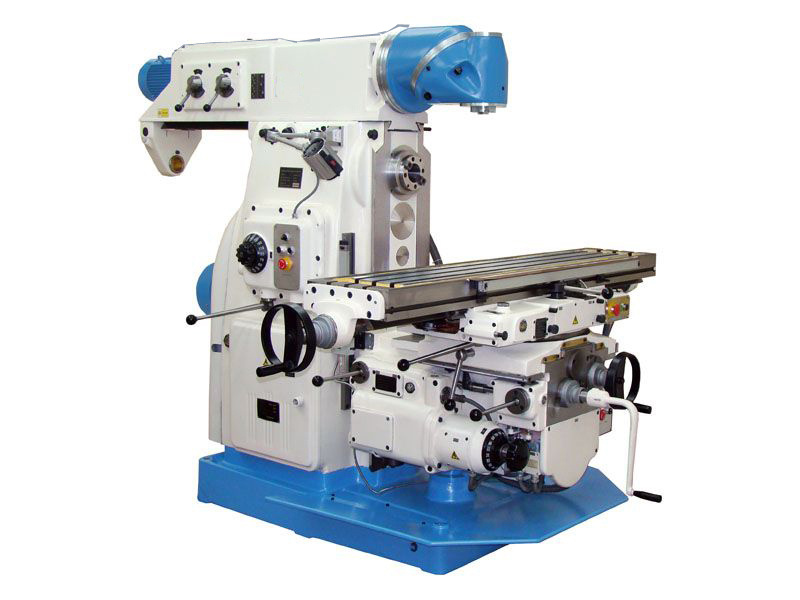

Universal rotary head milling machine (X6232C)
MAIN FEATURES
Hardened guide ways
7: 24/40 standard spindle
Hand lubricate system
X, Y axis auto feed
High quality, high efficiency
The spindle rotation at any angle
Structure characteristics
Can realize, responding to a processing function and milling lie.
Adopts two rotary milling head, spindle rotation in arbitrary Angle and adjust.
Can be used for machining shell adopts and mould.
Responding to the worktable X, Y to maneuver.
The Universal Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotary table, machine vice, transmission box, boring and facing milling head, milling chuck, etc. Its machining scope/capacity greatly enlarged. X6232C/1: Digital readout(2 dimensional or 3 dimensional) is added to X6232C machine which can improve the machining accuracy and producing efficiency. X6232X16: The same as X6232C, except that the Table length Extended to 1600mm.
|
Universal rotary head milling machine (X6232C) |
|
|
Product Type: |
X6232C |
|
work table area (width*length): |
320*1320mm |
|
T-slots(number of slot-width*pitch) slot-width*pitch): |
3-18*70mm |
|
Max weight of workpiece: |
500Kg |
|
Table swivel angle: |
±45° |
|
Max.stroke longitudinal/transversal/vertical(manual): |
680/240/300mm |
|
Max.stroke longitudinal/transversal/vertical(power) (manual): |
700/255/320mm |
|
Distance from center line of horizontal spindle to table surface: |
30-350mm |
|
Distance from vertical spindle nose to table surface: |
250-570mm |
|
Vertical milling head max. swivel angle: |
360° |
|
spindle motor power (horizontal/vertical spindle): |
5.5/3Kw |
|
Spindle taper (horizontal/vertical spindle): |
ISO(50/40)/XT(50/40) |
|
Spindle speed range (horizontal/vertical spindle): |
18 steps 30-1500/9 steps 125-2000r/min |
