UPVC double wall corrugated pipe making machine
UPVC Double wall corrugated pipe material is UPVC. The design of structure is new and reasonable. Smooth inner layer and hollow corrugated outer layer composed. UPVC double wall corrugated pipes are one mould profile two layer extrudings. Applies to rain water drainage, sewage drainage in residential district, or pollutant and exhaust gas discharge as well as sewage drainage for mine industry, or organic pollutants drainage from people's life, agricultural drainage, low pressure irrigation and coalmine ventilation. It has many advantages, such as: Good ability bearing external load, high strength, light weight, smooth inner wall, impact resistance, corrosion resistance, construction convenient, and low cost and so on. The pipe adopts socket expanding and seal ring connecting which prevents expanding from hot and shrinking from cold.

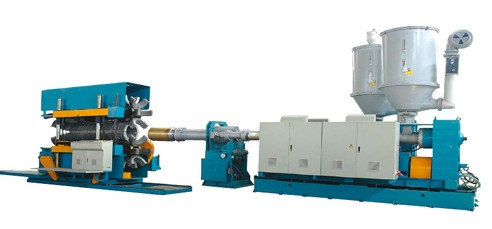

UPVC Double Wall Corrugated Pipe Extrusion Line adopts one conical twin screw extruder directly extruding and forming technology, human-machine interface control system. It makes high automation degree, reliable quality and stable production become true. And this Corrugated Pipe production line wins our home and abroad customers' good reputation.
|
Model |
SXJBG-250 |
SXJBG-500 |
SXJBG-1000 |
|
Diameter(mm) |
ODΦ 63-Φ 250 |
ODΦ 200-Φ 500 |
ODΦ 500-Φ 1000 |
|
extruder |
SXSJ-65 |
SXSJ-80 |
SXSJ-92 |
|
Extrusion die, mould |
Φ 63, Φ 75, Φ 110,
Φ 125, Φ 160, Φ 200, Φ 250 |
Φ 200, Φ 250
Φ 315, Φ 400, Φ 500 |
Φ 500, Φ 630, Φ 800, Φ 1000 |
|
Corrugated forming machine |
SXBG-200
Horizontal style |
SXBG-400
Horizontal style |
SXBG-800
Horizontal style |
|
Total power |
230 |
300 |
500 |
dimension
(L× W× H)m |
37× 6× 5.32 |
38× 6× 5.32 |
40× 6× 5.32 |
|
Total weight |
30 |
50 |
80 |
Qingdao Jinfuxin Plastic Machinery Co., Ltd is a state designated enterprise producing plastic machinery and high-tech enterprise in Qingdao. Mainly engaged in research & development, manufacturing, sales, and after-sale service of new plastic machinery. Products consist of PVC Crust Foam Board Production Line, Plastic Grass Mat Machine, PET/PP Strap Production Line, PA/PP/PE/PET/PBT Filament Extruding Machine, etc. And all kinds of plastic pipe, profiles, board, bar extrusion line and auxiliary equipment. Our machines are popular with the customers, which are sold all over the country and exported to Southeast Asia, Russia, Ukraine, Iran and other countries.
Since our company has establishd, it always takes the domestic and international market as the guide, the technology as leader, the quality as the life, strengthens joint units with domestic colleges and universities of science and technology and brings in and absorbs foreign advanced technology, in a timely manner to develop new plastic industry products according to the market demand, provides customers with a complete innovative set of production line, takes customer satisfaction as the ultimate goal, to strive for the best plastic machinery in China.
And expand the Qingdao Jin Xinquan Plastic Products Co., Ltd., production of plastic corrugated pipe products are mainly used for electrical threading pipe, auto threading pipe, casing, machine tool products, food packaging machinery, electric locomotives, engineering installation, lamps and lanterns, automation instruments and meters, etc
Jinfuxin company aim "morality for the surplus, credit management, service oriented, joint development, shaping the future".
