Material: From Germany Bayer, GE lexan.
Production line: 5 lines, Workshop requirement: ISO9001: 2008, 9S
Quality: 100% virgin Bayer material, 50 micron UV layer, 10 years warranty, approved by ISO9001: 2008, SGS, RoHS, delivery time 7-15 days

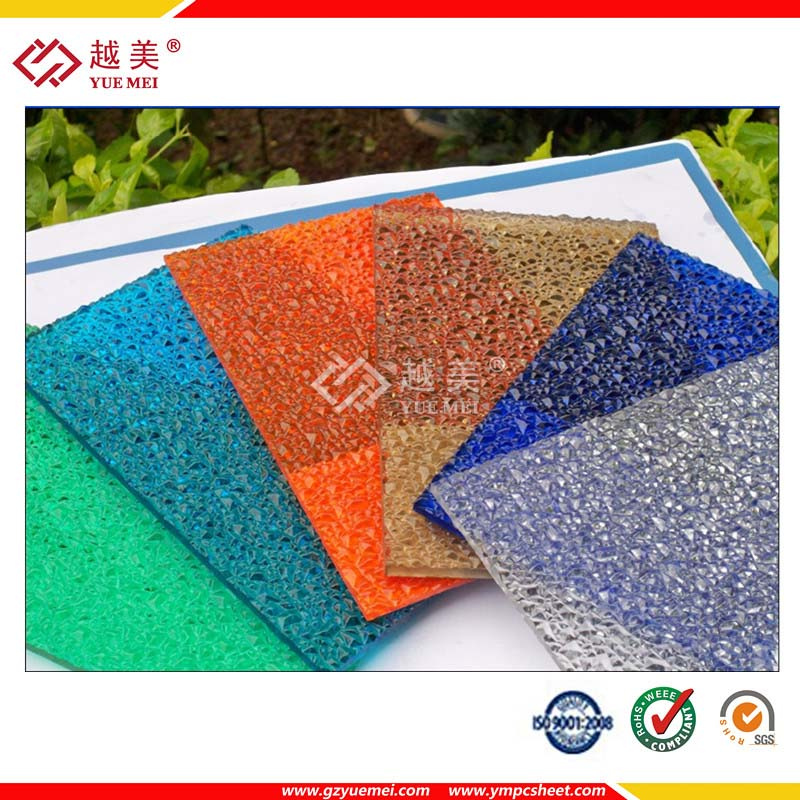

PC diamond sheet, PC embossed sheet are produced based on Manufacturing technology of PC solid sheet, changing part mould and processes, so that the surface have physical changes happen, so having optical properties and visual, sensory changes due to the structural changes in the surface.
PC embossed sheet, diamond sheet is consistent with the solid on mechanical properties, electrical properties, flame retardant, anti-ultraviolet capability, different from the appearance and optical
Performance, which through its own surface convex-concave shape, convex-concave density and size so that reach the effect of non-see fuzzy by scattering, transmission.
Thickness: 2mm-8mm
Maximum width: 2100mm
Color: Clear, PAL, lake blue, green blue, green, bronze
| Item | Standard width
(mm) | Thickness
(mm) | Weight
(kg/ m 2 ) | Min curving radius
(mm) | General color | Remark |
| PC diamond sheet | 1220
1560
1820
2100 | 2.0 | 2.4 | 360 | Clear
Opal
Blue
Green
Bronze
Orange | 1.5mm-3.0mm, 30m/roll
3.6mm-4.5mm, 18m/roll
5mm or above packed as sheet |
| 2.4 | 2.88 | 430 |
| 3.0 | 3.6 | 540 |
| 3.8 | 4.56 | 680 |
| 4.0 | 4.8 | 720 |
| 5.0 | 6 | 900 |
| 6.0 | 7.2 | 1080 |
Guangzhou Yuemei Plastic Industrial Co., Ltd. Started since 1991 and are an influential enterprise specializing only in PC (polycarbonate) sheeting and PC profile. We have 4 main production lines and we use 100% virgin Makrolon resin from Bayer and Lexan resin from GE. Our annual production capacity is 9000 Metric Tons. We got ISO9001: 2008 quality system certificate from CQC and RoHS certificate from SGS. BV production & trade proved!
Our YUEMEI brand hollow PC sheeting, solid PC sheeting and PC profile is available in a diverse variety with complete specifications, thus it is able to meet the different requirements of our customers. With products ranging in high and medium quality, we can also process large orders to our customers' specifications and samples. Furthermore, we can also process skylights with PC solid sheeting and related accessories for installation.
YUEMEI products feature super weather and impact resistance, and good light transmission. Light in weight, and easy to install, they are widely used in construction projects, for decorative use, in advertising displays and an extremely varied and wide range of other uses.
As a result of our products' high quality, competitive price and large selection, YUEMEI PC sheets sell well both at home and abroad. We sincerely invite interested parties to contact us and all enquiries will receive our closest attention.
