Specifications
lunch box vacuum foaming machine 1.machine for processing ps foam sheet 2.products--ps foam containers 3.PLC control Parameter of the machine |
Item | Unit | HY-1100/1250 |
Forming area | mm | 1100x1250 |
Forming depth | mm | 100 |
Production efficiency | s/Die | 3-5 |
Heating area | mm | 1200x2800 |
Installation power | kw | 110 |
Installation size | m | 16x5x3 |

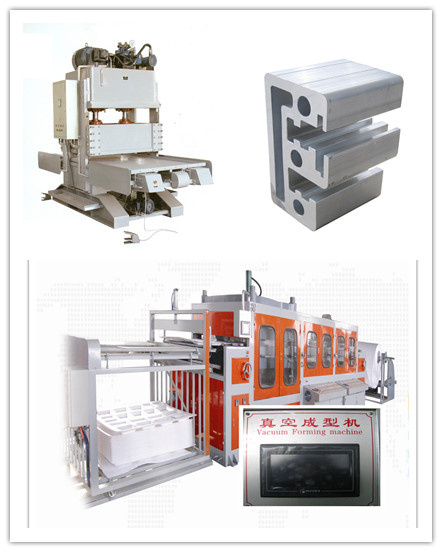

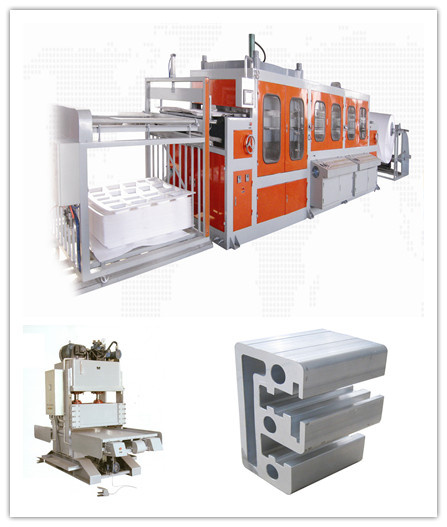

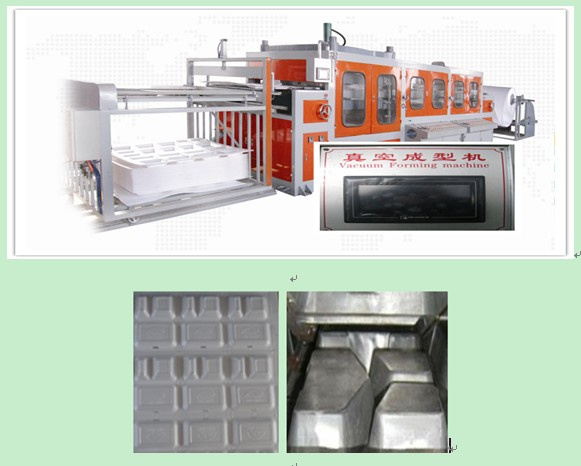

vacuum forming machine for ps foam plates

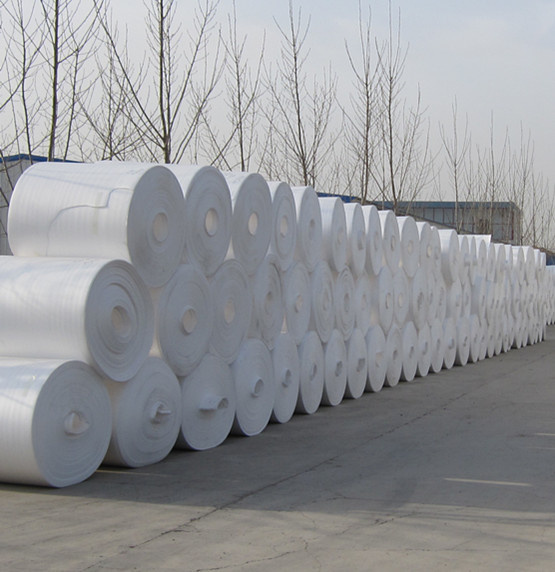

1.feeding .ps foam sheet for processing .polystrene mixin granules
2.the machine for making ps foam container
make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)
parameter of the machine HY-1100/1250
forming area of the machine is 1100x1250mm
heating area of the machine is 1200x2800mm
installation power is 110kw
Parameter of the machine |
Item | Unit | HY-640/850 |
Forming area | mm | 640x850 |
Forming depth | mm | 100 |
Production efficiency | s/Die | 3--5 |
Heating area | mm | 750x1700 |
Installation power | kw | 75 |
Installation size | m | 14x5x3 |
1. This hydraulic cutting machine is a helping machine of food container production line.
2. To cut the formed sheet as single products.
3. Widely used with VF series thermal forming equipment together to form an automatic production line.
4. This PS cutting machine is mainly used for cutting whole dies vacuum hot forming products, also used for cutting packages and decorative products.
5. It can cut overlapping multiple sheets, and its die change is quick and easy.
6. It can cut at single working position.
Haiyuan Plastic Machinery Co., Ltd is professional in manufacturing PS foam fast food box(one time dishes) production line and plastic package machinery. Meanwhile, we are the supplier of PS fast food boxes and food trays to some chain supermarkets in domestic and aboard. With strong technical strength and abundant experience, basis on advanced technology from domestic and abroad, we have successfully developed and produced various equipments...Haiyuan sincerely welcome the friends all over the world to visit us!
