Variable Elbow Forming

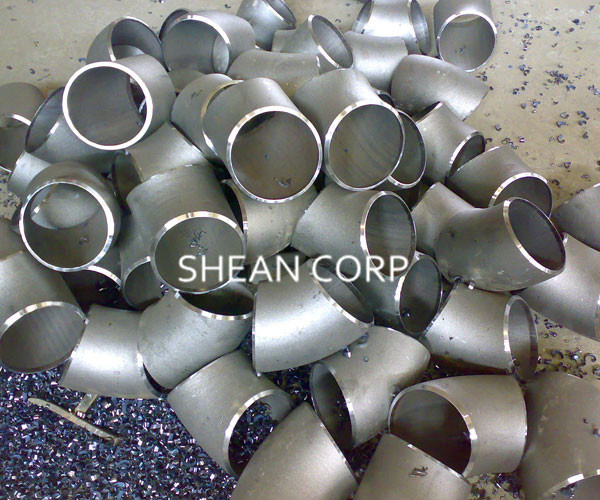

Variable Elbow Forming is made by hot forming machine. The joint type is connecting with pipe directly with bevel ends, application for gas, petroleum, water pipeline etc.
1. Hot Formed 180 Degree Elbow has long radius type and short radius type. Long radius type's curvature radius equal to 1.5 double of NPS pipe, so named as R=1.5D. Short radius type's curvature radius equal to1, double of NPS pipe, so named as R=1D.
2. Hot Forming For China Elbow collect by grade, it has Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60,
Sch80s, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS, . It is same with American standards.
Shean(cangzhou)CORP LTD supplies Variable Elbow Forming, Trustful Elbow China, Bending Machine, Butt Welded Fittings., can face different requirements, welcome send inquiries to us. Is made by hot forming machine. The joint type is connecting with pipe directly with bevel ends, application for gas, petroleum, water pipeline etc.
Nominal pipe size |
Outside Diameter at Bevel |
Center to End |
Center to Center |
Back to Faces |
45° Elbows |
90°Elbows |
180°Return |
H |
F |
P |
K |
DN |
INCH |
Series A |
Series B |
LR |
LR |
SR |
LR |
SR |
LR |
SR |
15 |
1/2 |
21.3 |
18 |
16 |
38 |
- |
76 |
- |
48 |
- |
20 |
3/4 |
26.9 |
25 |
16 |
38 |
- |
76 |
- |
51 |
- |
25 |
1 |
33.7 |
32 |
16 |
38 |
25 |
76 |
51 |
56 |
41 |
32 |
11/4 |
42.4 |
38 |
20 |
48 |
32 |
95 |
64 |
70 |
52 |
40 |
11/2 |
48.3 |
45 |
24 |
57 |
38 |
114 |
76 |
83 |
62 |
50 |
2 |
60.3 |
57 |
32 |
76 |
51 |
152 |
102 |
106 |
81 |
65 |
21/2 |
76.1(73) |
76 |
40 |
95 |
64 |
191 |
127 |
132 |
100 |
80 |
3 |
88.9 |
89 |
47 |
114 |
76 |
229 |
152 |
159 |
121 |
90 |
3 1/2 |
101.6 |
- |
55 |
133 |
89 |
267 |
178 |
184 |
140 |
100 |
4 |
114.3 |
108 |
63 |
152 |
102 |
305 |
203 |
210 |
159 |
125 |
5 |
139.7 |
133 |
79 |
190 |
127 |
381 |
254 |
262 |
197 |
150 |
6 |
168.3 |
159 |
95 |
229 |
152 |
457 |
305 |
313 |
237 |
200 |
8 |
219.1 |
219 |
126 |
305 |
203 |
610 |
406 |
414 |
313 |
250 |
10 |
273 |
273 |
158 |
381 |
254 |
762 |
508 |
518 |
391 |
300 |
12 |
323.9 |
325 |
189 |
457 |
305 |
914 |
610 |
619 |
467 |
350 |
14 |
355.6 |
377 |
221 |
533 |
356 |
1067 |
711 |
711 |
533 |
400 |
16 |
406.4 |
426 |
253 |
610 |
406 |
1219 |
813 |
813 |
610 |
450 |
18 |
457.2 |
478 |
284 |
686 |
457 |
1372 |
914 |
914 |
686 |
500 |
20 |
508 |
529 |
316 |
762 |
508 |
1524 |
1016 |
1016 |
762 |
550 |
22 |
559 |
- |
347 |
838 |
559 |
NOTE: 1) Do not use the figures in the parenthesis as far as possible 2) please first select A series |
600 |
24 |
610 |
630 |
379 |
914 |
610 |
650 |
26 |
660 |
- |
410 |
991 |
660 |
700 |
28 |
711 |
720 |
442 |
1067 |
711 |
750 |
30 |
762 |
- |
473 |
1143 |
762 |
800 |
32 |
813 |
820 |
505 |
1219 |
813 |
850 |
34 |
864 |
- |
537 |
1295 |
864 |
900 |
36 |
914 |
920 |
568 |
1372 |
914 |
950 |
38 |
965 |
- |
600 |
1448 |
965 |
1000 |
40 |
1016 |
1020 |
631 |
1524 |
1016 |
1050 |
42 |
1067 |
- |
663 |
1600 |
1067 |
1100 |
44 |
1118 |
1120 |
694 |
1676 |
1118 |
1150 |
46 |
1168 |
- |
726 |
1753 |
1168 |
1200 |
48 |
1220 |
1220 |
758 |
1829 |
1219 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
