Vertical Sand Molding Machine for Iron Casting (DL-Z4050)

Vertical Sand Molding Machine for Iron Casting (DL-Z4050)
Price: US $ 92500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Vertical Sand Molding Machine for Iron Casting Car Spare Parts (DL-Z4050)

ADVANTAGES:
1) Over 20 years experience in brass/iron casting equipment.
2) First and most accepted China brand.
3) Most competitive price and quality.
4) Short delivery time.
5) Instant aftersale service on line.
6) Import and Export License.
7) OEM.

APPLICATION:
Widely used in machinery parts, auto and motorcycle parts, valves, bearings, etc .
More competitive for those products require inner sand core.



SALE & AFTER-SALE SERVICE:
Warranty 1 year free.
Lifetime maintenance.
Afersale service: instant and fluenct English service, by on line chatting, or by phone, or by local agent repair(such as India, Iyan, etc.), or other way by negotiation.


MAIN TECH. SPEC:

DESCRIPTIONDATA
1,Size of  Sand Mold (mm×mm) 400*500mm
2,Sand Mold Thickness ( mm)Upper mold:<120 mm
Lower mold:<110mm
3,Moulding speed (Sec/mold)35-50(Without the time of putting sand core)
4,Compaction Pressure≤13Mpa
5,Air Consumption0.3m³(Normal/mold)
6,Drive ModeHydraumatic-pneumatic
7,Total Power15.5kw
8,Power Supply380V,50HZ
9,Machine Appearance Size2960×2100×2800(L×W×H)
10,Net Weight5.5t
11,Humidity of Sand Mold2.5%~4%
12,Mold Plate Thickness15 ~20mm

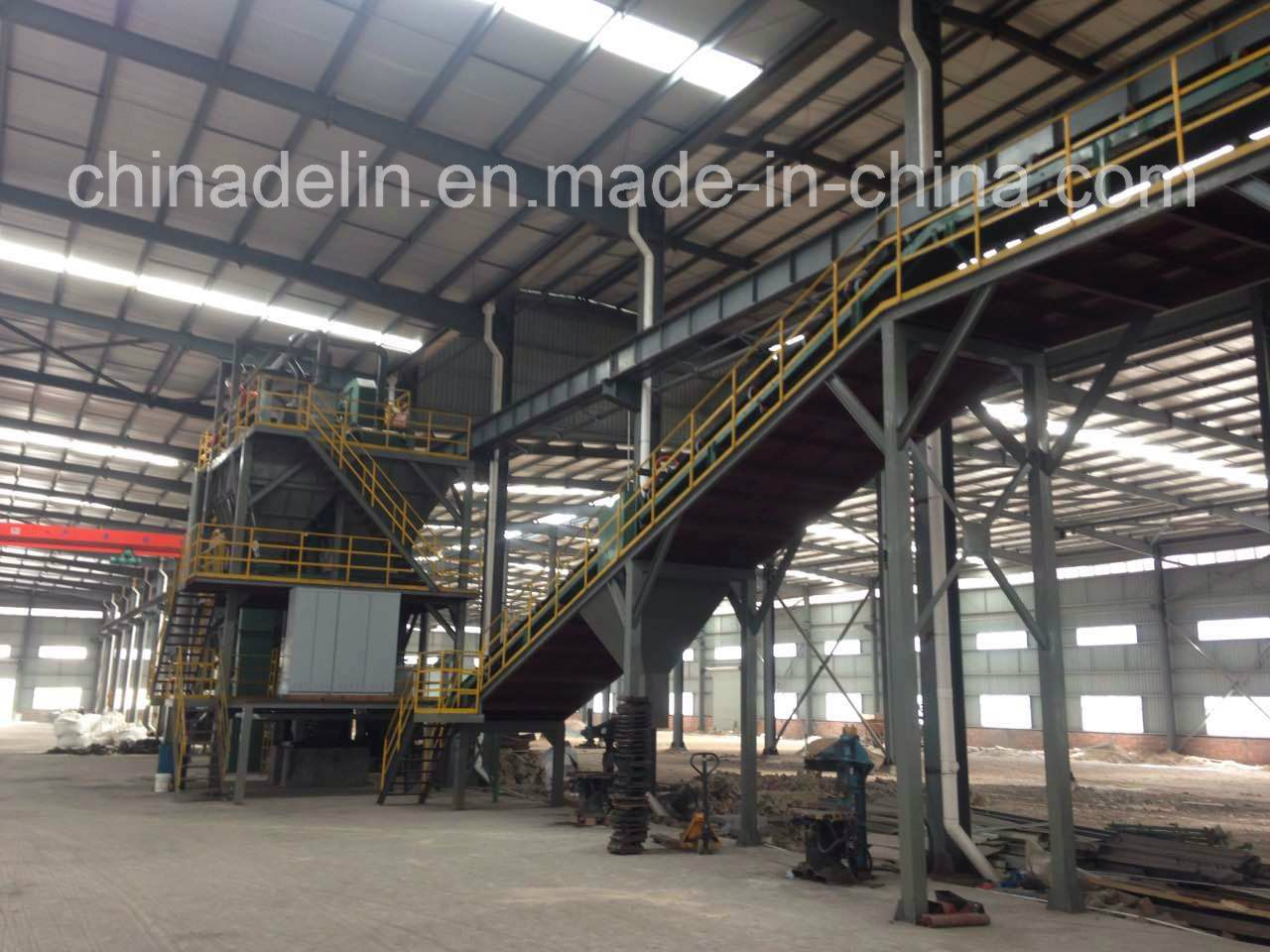

ONE OF OUR CUSTOMER'S WORKSHOP:

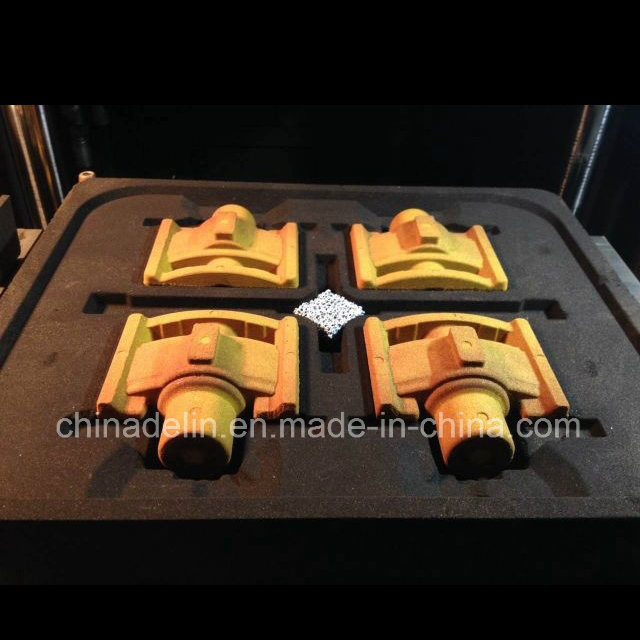

SAMPLES BEFORE CASTING

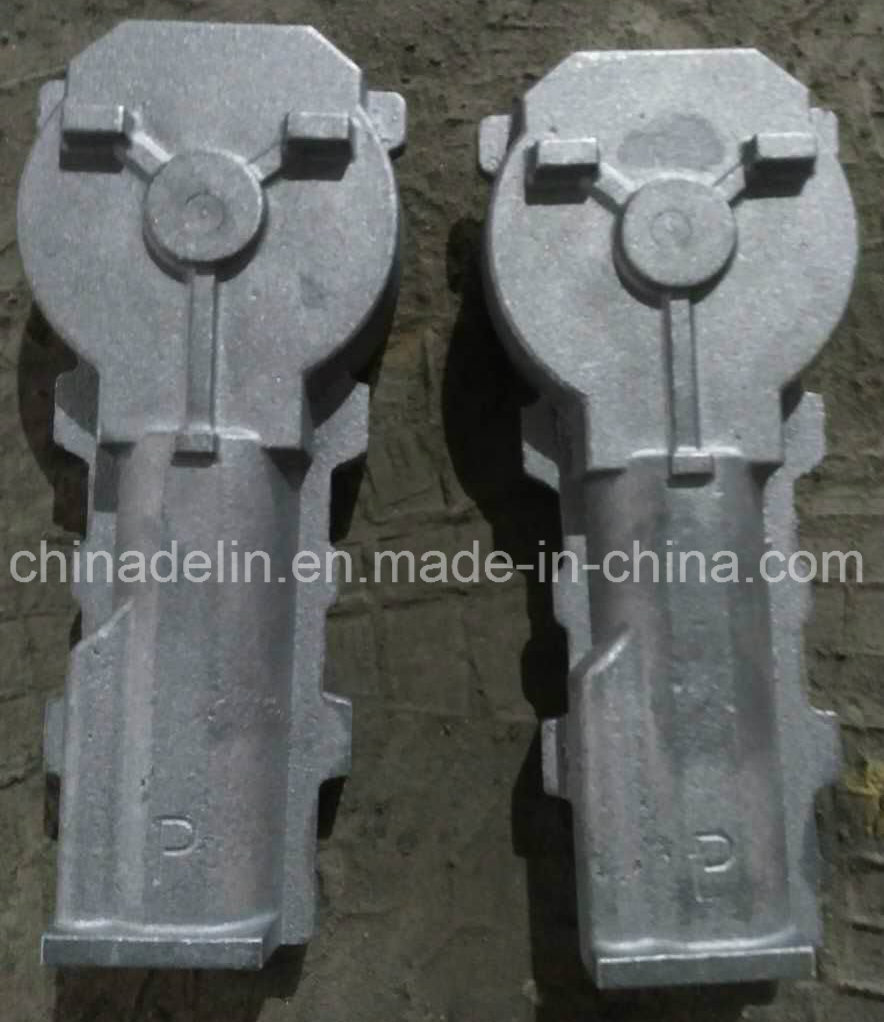

SAMPLES AFTER CASTING






Prod Model: DL-Z4050
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Function: Machinery Parts, Auto and Motorcycle Parts, Valve
Size Of Sand Mold: 400*500mm
Sand Mold Thickness (Upper): <120 mm
Sand Mold Thickness (Lower): <110mm
Moulding Speed (Sec/Mold): 35-50(Without The Time of Putting Sand Core)
Compaction Pressure: <13MPa
Air Consumption: 0.3m³(Normal/Mold)
Drive Mode: Hydraumatic-Pneumatic
Total Power: 15.5kw
Mold Plate Thickness: 15 ~20mm
Type: Clay Wet Sand
DELIN company established in 1998 with an area of about 50000 square meters and staffs about 350. It located in sanitray hometown-Nanan, with very convenient transportation, only 1 hour from Xiamen airport.

Our company is specialized in making complete line of casting machine. In 2013, DELIN mergered Changjiang Industry, which is famous for Auto polishing machine manufacturing. And in 2015 it mergered another first-class team in China which has been specialized in manufacturing manual and auto-working Drilling and Tapping machine.

Products are widely used in Sanitaryware, car spares, valves, as well as in Iron casting fields.

The following are our main products: Low pressure casting machine, Gravity die casting machine, furnace, ( Automatic) core shooting machine, Mix sand machine, ( CNC ) Drillling and Tapping machine, Auto-polishing machine, Molding machine, Abrator, etc...

We have many sales and sale service centers, our products sale to home and abroad. In our country, we hold 70% of the market, especially in provice of fujian, guangdong, zhejiang. In these provice we have our sale and service centers. In the abroad, we have saled to many country, such as Iran, Vietnam, India, Egypt, Bangladesh, Russia, etc.
