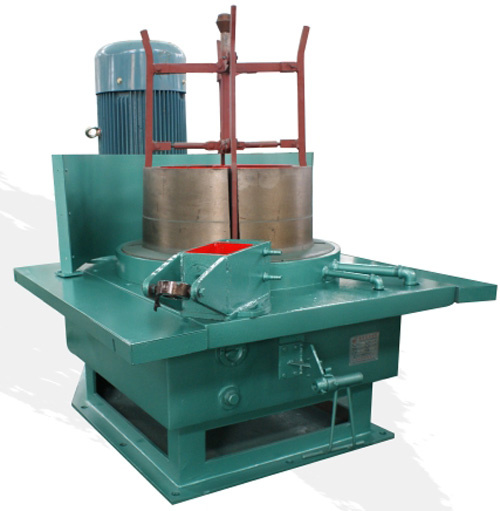

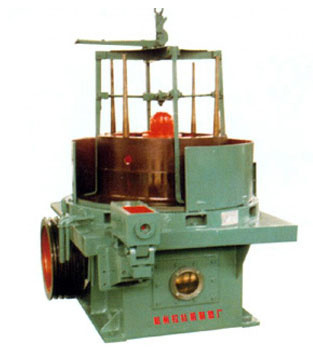

Vertical Type Single Head Wire Drawing Machine (LD-350)
| Price: |
US $ 2000-4000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
MACHINE MODEL: LD-350
DESCRIPTION:
This machine, mainly used to draw high carbon steel wires, as well as low and medium carbon steel wires and wires of non-ferrous metals, is applicable to standard parts, wireropes and galvanized wires etc. that are drawn in batches.
Technical Data:
Diameter of the spool: 350mm
Max inlet wire diameter: 3-14mm
Min outlet wire diameter: 2-12mm
Speed of the spool:20-50RPM
Power of machine:5.5-75kw
External dimension(LxWxH):2500x1600x1900mm
Weight: 4500kg
We are the professional manufacturer for different types of Wire Drawing Machines and Wire Straight and Cutting Machines. We will make the complete project of machines for each abroad customers according to their detail requirement such as the special products, required capacity and different purposes etc. If you have any inquiry, pls don't hesitate to contact with us at any time! We are willing to assist you and looking forward to cooperate with you in the near future!
| Prod Model: |
LD-350 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Drum Block: |
350mm |
| Max Inlet Wire Diameter: |
3-14mm |
| Min Outlet Wire Diameter: |
2-12mm |
| Compression Ratio: |
<25% |
| Drawing Speed: |
10-60m/Min |
| Power: |
5.5-75kw |
| Control System: |
Stepless Frequency Conversion Timing |
| Type: |
LD Single Metal Drawing Machine |
| Usage: |
Rope Wire |
| Outlet Diameter: |
2-12mm |
| Max. Number Of Block: |
1 |
| Certification: |
CE |
