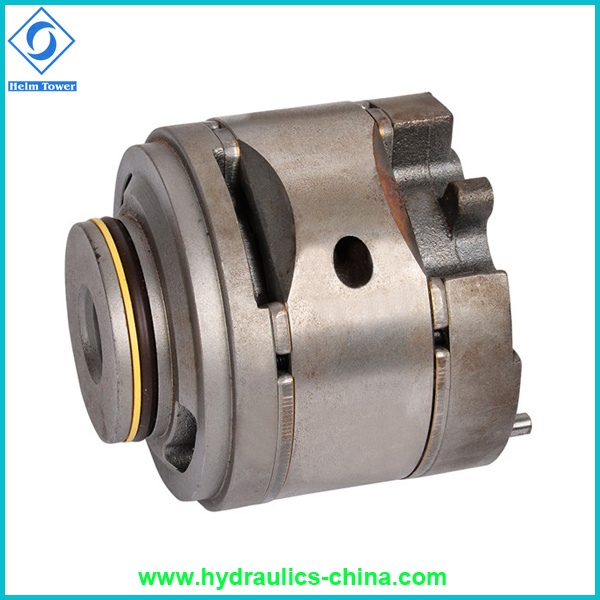

Vickers Cartridge Kits for Vane Pumps
| Price: |
US $ 100-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Cartridge kit for Vickers VQ series Vane Pump:
Hydraulic pumps artrige kits
Hydraulic cartridge kits for Vickers vane pumps
Best replacement for the Vickers vane pumps
| Series | Φ A | B | C | Φ D | E | Φ F | Φ G | H | K | M | N |
| 20VQ | 82.5 | 81.5 | 70.1 | 47.2 | 61.5 | 4.8 | 76.2 | 7 | 73.6 | 82.76X72.26X3.5 | 40X3.5 |
| 25VQ | 96.8 | 98.8 | 87 | 52.2 | 71.2 | 4.8 | 90.5 | 7 | 88.19 | 97X91X3.5 | 44X3.5 |
| 35VQ | 114.3 | 117.7 | 105 | 72.2 | 90.3 | 6.4 | 108 | 7 | 103.94 | 114.5X108.5X3.5 | 63.09X3.53 |
| 45VQ | 133.35 | 141.1 | 129.6 | 80.2 | 105.5 | 6.4 | 127 | 8 | 123.8 | 133.6X127.6X3.5 | 71X3.55 |
| Series | Inside spline tooth outline parameter of rotor |
| Number of leeth | Pitch | pressure angle | major diameter | Minor diamter |
| 20VQ | 30 | 48/96 | 45 o | 16.617 | 15.56 |
| 25VQ | 40 | 48/96 | 45 o | 21.9 | 20.86 |
| 35VQ | 37 | 40/80 | 45 o | 24.38 | 23.10 |
| 45VQ | 14 | 12/24 | 30 o | 32.59 | 27.60 |
Vickers V/VQ series Vane Pump
High speed and pressure intra-vane pumps meet the vehicle.
Large capacity, Compact size, Low noise level and Longer service life features.
Widely used in hydraulic systems for Machine-tools, Presses, Die casting machines, Engineering, Plastic injection moulding, etc.
Vickers V/VQ series hydraulic vane pumps' application & features:
V/VQ hydraulic vane pump rated pressure of 170 , the displacement of 5.8~116 ml/r It is a motor output will be converted to mechanical energy to the hydra compact , small size , uniform flow, pressure pulsation small , low noise, high efficiency and reliable performance, and reasonable price, is the pressure of the vane pump replacement products. The high-pressure hydrauic pump stator blades, rotor blade with streaming into a screw fastener assembly, ease of assembly and maintenance, and with axial clearance compensation structure.
Vickers V/VQ series hydraulic vane pump are widely used in all kinds of high-pressure in the hydraulic system, such as the variety of metal-cutting machine tools, hydraulic machines, as well as various types of plastic machinery in the construction machinery. Vickers V/VQ series vane pump is generally tranferred , in accordance with the need to be installed into reverse.
Order information:
Complete type example: 25V21A-1A22R
| Prod Model: |
Vickers V/VQ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Hydraulic Motor |
Ningbo Helm Tower Noda Hydraulic Co., Ltd (Previously named Ningbo Wenkui Hydraulic Manufacturing Co., Ltd. ) is a subsidiary factory belongs to Wenkui Group Company. Which is a professional designer, manufacturer and exporter enterprise for MS hydraulic motor, MCR hydraulic motor, all kinds of hydraulic system and hydraulic spare parts. It obtained the Certificate of ISO9001: 2008 and ISO14001: 2004 Quality Management System, CCS certificate, Coal mine work safety License.
Our company is located in Ningbo High Technology Zone, Holding $5 million registered capital, covering area is over 10, 000 square meters. In the spirit of "concentration, profession, innovation" Ningbo Helm Tower Hydraulic Technology Co., Ltd. is dedicated to the research and development of hydraulic system and hydraulic components for long time, our products are widely used in marine, coal mine machinery and project machinery, metallurgy, agriculture, garden, environment protection synchronously and so on. We possesses over 100 high quality technology staff who consist of senior doctor, master, senior engineer, and assistant engineer work in the hydraulic industry for many years which can provide powerful technology and competitive advantage in product D&R, technology support and service, all of those lead to our MS hydraulic motor and MCR hydraulic motor can completely replace same type hydraulic motor of the oversea famous brand, our vane motor with three series of HVK, HVN, HVL total 10 size which can used in ship crane and port crane. Which can replace Japan IHI series vane motor. Due to the strong process capability, the quality of main parts processed by CNC can be guaranteed well. Not only the main parts of our products used high-grade alloy steel material like 20CrMnTi, 42CrMo, but also adopted advanced heat treatment technology including treatment of carbon penetration, quenching, salt bath and nitrogen treatment to promise the product quality, every single part is inspected and every product rigorously tested before it leaves our factory to ensure their unimpeachable standard and quality. After assembly, the whole machine will be tested on our test platform 100%.
The key parts such as screw cartridge valves, sealing, and screw bolts all were imported from USA, Germany, Italy, France and Taiwan.
We are a group manufacturing company owned more then 10 subsidiary factories. Consisting of head office, Ningbo Wenkui I/E Co., Ningbo Wenkui Hydraulic Manufacturing Co., Ningbo Helm Tower Hydraulic Motor Co., it's located in Ningbo, and other subsidiary factories which specializing in manufacturing orbit motors and piston pumps located in Shandong and Jiangsu province. With strict quality management system, advanced produce technical procedure, fine engineering, technical personnel and excellent after service, keeps the products are exported to Europe countries, USA, America, Australia, Middle East, part of Asia and other countries /region which win extremely praise and favor by the customers.
With competitive price, excellent performance and prompt delivery, holding the principle of "Exist by Quality, Develop by Credit", we sincerely welcome you to establish co-operative relationships with us in the near future.
Warmly welcome to contact us and visit our factories.
