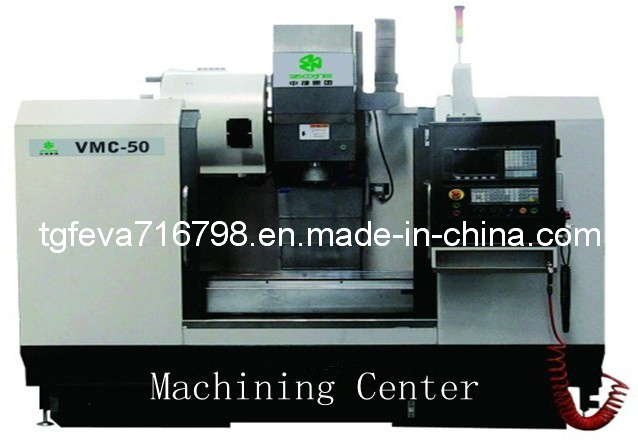

The machine tool has good dynamic performance, exact movement, accuracy control, stable machining precision and fine stability by repeated tests; The parts could automatically completed in a clamping to finish milling, drilling, expanding, boring, reaming, tapping and other manufacturing procedure; It is easy to use, operate and maintain, especially suitable for parts batch processing, which is the preferred equipment for auto, motorcycle parts, military industry, valves, machinery, textile, printing packaging, mold manufacturing and vocational education and training.
Prominent feature;
1, large work surface, z model (50 vl) with large stroke, dedicated to the fixture and all kinds of nc rotary table function extension;
2, the optional and variety of increasing output shaft torque structure, meet the demand of customer heavy cutting processing;
3, unique tool magazine collision prevention, comprehensive interlock and protection, perfect design of PLC, ensure safety and reliability;
4, interface with PLC and modularization software to increase the functional components and software upgrade at any time.
|
|
Model |
Units |
VMC-40 |
VMC-40L |
VMC-50/50L |
VMC-60/60L |
VMC-70 |
VMC-80 |
VMC-90L |
|
Work-bench |
Size |
mm |
400*900 |
420*800 |
500*1050/1000 |
600*1300 |
700*1360 |
800*1700 |
900*2000 |
|
T-groove (number of slots-slot width*slot pitch) |
mm |
3-14*100 |
3-14*135 |
3-18*150 |
5-18*120 |
5-18*152.5 |
5-22*135 |
5-22*165 |
|
Max loading |
kg |
400 |
500 |
750 |
1000 |
1200 |
1800 |
2500 |
|
Travel |
Travel of X spindle |
mm |
680 |
660 |
820/800 |
1020 |
1250 |
1550 |
1800 |
|
Travel of Y spindle |
mm |
400 |
410 |
510/500 |
610 |
720 |
810 |
900 |
|
Travel of Z spindle |
mm |
450 |
500 |
550/700 |
620/640 |
610 |
710 |
720 |
|
Distance between main spindle nose and worktable |
mm |
140-590 |
60-560 |
100-650/800 |
170-790/ 140-780 |
110-720 |
170-880 |
160-860 |
|
Distance from main spindle axis to vertical guideway |
mm |
450 |
480 |
550/575 |
655 |
785 |
950 |
|
|
Travelling rate |
Rapid travelling speed of X spindle |
m/min |
18 |
18 |
24 |
20/18 |
15 |
15 |
15 |
|
Rapid travelling speed of Y spindle |
m/min |
18 |
18 |
24 |
20/18 |
15 |
15 |
15 |
|
Rapid travelling speed of Z spindle |
m/min |
15 |
15 |
20 |
18*15 |
12 |
12 |
12 |
|
Cutting feed rate |
m/min |
0.005-6 |
0.005-6 |
0.005-6 |
0.005-6 |
0.005-6 |
0.005-6 |
0.005-6 |
|
Main spindle |
Power of spindle driving motor (rating/intermittent) |
kw |
5.5/7.5 |
5.5/7.5 |
11/15 (VMC-60L AND VMC-70 is wide-range motor) |
11/15 (VMC-60L AND VMC-70 is wide-range motor) |
11/15 (VMC-60L AND VMC-70 is wide-range motor) |
15/18.5 wide-range motor |
15/18.5 wide-range motor |
|
Max. output torque at main spindle (rating/intermittent) |
Nm |
26.3/47.7 |
26.3/47.7 |
52/95 (VMC-60L is 140/286) |
52/95 (VMC-60L is 140/286) |
140/286 |
263/442 |
263/442 |
|
Range of main spindle speeds |
r/min |
60-8000 (VMC-60L: 45-6000) |
60-8000 (VMC-60L: 45-6000) |
60-8000 (VMC-60L: 45-6000) |
60-8000 (VMC-60L: 45-6000) |
45-6000 (8000) |
45-6000 (8000) |
45-6000 (8000) |
|
Serial number of taper hole of spindle |
No. |
ISO No. 40/ BT 40 (No. 50 is available for more than 50V, VMC-60L is BT 50) |
ISO No. 40/ BT 40 (No. 50 is available for more than 50V, VMC-60L is BT 50) |
ISO No. 40/ BT 40 (No. 50 is available for more than 50V, VMC-60L is BT 50) |
ISO No. 40/ BT 40 (No. 50 is available for more than 50V, VMC-60L is BT 50) |
ISO No. 50/ BT 50 |
ISO No. 50/ BT 50 |
ISO No. 50/ BT 50 |
|
Tool magazine |
Tool magazine capacity / time of tool change (tool to tool) |
knifes/sec |
10 (bamboo hat)/ 6s |
10 (bamboo hat)/ 6s |
20 (bamboo hat)/ 6s (VMC-60L: 16) |
20 (bamboo hat)/ 6s (VMC-60L: 16) |
24 (tool arm)/ 5s |
24 (tool arm)/ 5s |
24 (tool arm)/ 5s |
|
16 (tool arm)/ 3s |
16 (tool arm)/ 3s |
24 (tool arm)/ 3s (VMC-60L: 5s) |
24 (tool arm)/ 3s (VMC-60L: 5s) |
Chain 32 (tool arm)/ 5s |
Chain 32 (tool arm)/ 5s |
|
Max weight of cutting tool |
kg |
5 |
5 |
8 (VMC-60L: 12) |
8 (VMC-60L: 12) |
12 |
15 |
15 |
|
Max diameter/length of cutting tools |
mm |
70/ 200 |
70/ 200 |
80/240 ((VMC-60L: 115/240) |
80/240 ((VMC-60L: 115/240) |
115/240 |
150/240 |
150/240 |
|
Precision |
Positioning accuracy (VDI standard) |
mm |
0.013 |
0.013 |
0.016 |
0.016 |
0.020 |
0.025 |
0.025 |
|
Repeated positioning accuracy (VDI standard) |
mm |
0.008 |
0.008 |
0.010 |
0.010 |
0.012 |
0.016 |
0.016 |
|
Numerical control system |
|
|
FANUC Oi-Mate-MD (Options: Oi-MD/ Mitsubishi M70/ Siemens 828/GSK-983M/KND1000M etc.) |
FANUC Oi-Mate-MD (Options: Oi-MD/ Mitsubishi M70/ Siemens 828/GSK-983M/KND1000M etc.) |
FANUC Oi-Mate-MD (Options: Oi-MD/ Mitsubishi M70/ Siemens 828/GSK-983M/KND1000M etc.) |
FANUC Oi-Mate-MD (Options: Oi-MD/ Mitsubishi M70/ Siemens 828/GSK-983M/KND1000M etc.) |
FANUC Oi-Mate-MD (Options: Oi-MD/ Mitsubishi M70/ Siemens 828/GSK-983M/KND1000M etc.) |
FANUC Oi-Mate-MD (Options: Oi-MD/ Mitsubishi M70/ Siemens 828/GSK-983M/KND1000M etc.) |
FANUC Oi-Mate-MD (Options: Oi-MD/ Mitsubishi M70/ Siemens 828/GSK-983M/KND1000M etc.) |
|
Bleed pressure |
|
mpa. |
0.5-0.7 (flow rate: 500L/min) |
|
Power requirement |
|
|
|
|
|
|
|
|
|
|
Weight |
|
kg |
3000 |
4000 |
5500/7000 |
8500/9000 |
11000 |
15000 |
17000 |
|
Dimension |
|
mm |
|
|
|
|
|
|
|
