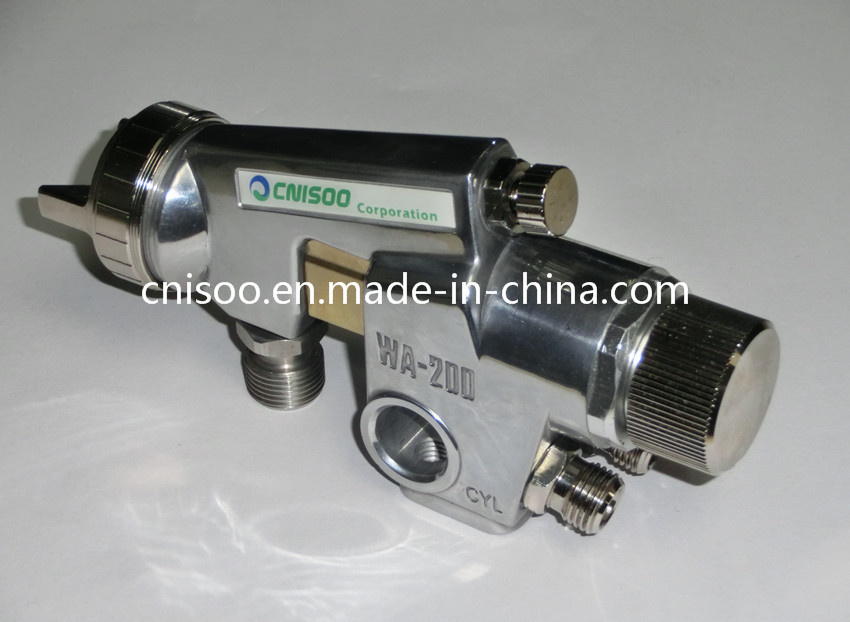

Feature
1.Corrosive paint is available.
2.Excellent in ceramic surface coating.
3.Used in combination with automatic spraying machine, reciprocating spraying machine and spraying robots suitable for mass production.
4.Nozzle and needle are made of 316 stainless steel , make the gun has longer using life .
5.Self-locking hose connect, it's more convenient for connection.
Comparision of this gun with other guns
1.The nozzle, needle and liquid passage of it are made of 316 stainless steel ,it is very anti-corrosion, can spray a variety of corrosive paint.
2.As manufactured by machine after birthed from the mold, it is of good quality.
3.Due to plating process, it has longer using life without oxidization.
Application
1.Most suitable for surface spraying of easy- wear spray material such as Enamel, ceramic enamel and abrasive agent.
2.Big workpiece coating.
Type of feed: pressure Spray distance: 250mm Spray air pressure:0.34 MPa( 3.5kgf/cm²)
Paints joint: G3/8(PF3/8) Air joint:G1(PF1/4)
| Model | Name | Type of feed | Fluid nozzle orifice
mm | Spray distance
mm | Atomizing air Pressure
MPa | Air consumption
l/min | Fluid output
ml/min | Pattern width
mm | Applied air cap | Required air compressor
kw | Application |
| WA-200-122P(V) |
Big |
Pressure | 1.2 |
250 |
0.29 | 530 | 500 | 400 | G2P |
2.2~ |
Big piece spray |
| WA-200-152P | 1.5 | 330 | 270 | 340 | K2 |
| WA-200-202P | 2.0 | 360 | 400 | 320 | R2 |
| WA-200-251P | 2.5 | 500 | 330 | W1 |
| WA-200-201ZP(V) |
Ceramics |
Pressure | 2.0 |
250 |
0.34 |
500
|
760 |
370 | R1Z | 2.2-3.7 | Horo axis spraying, glazed ceramic coating, spraying abrasive material, hard material mold release agent spray |
| WA-200-251ZP(V) | 2,5 | R1Z |
