Delivery time: 30-45days after receiving T/T deposit
Min. Order: 1set
Advantages:
1)XIANGLE has steady world famous parts suppliers(Take-up Roller made in Tanwai, PLC is DELTA brand, made in Japan)
2)More reasonable&scientific design, eg: Drawing cone fully submersible water-solubility drawing oil, Fuction: Clean, cooling, antirust, lubrication
3)Power save, perfect performace
4)Bright&shiny surface
5)20years experience, one and half hours to Shanghai Port
Main technical parameter:
1. Inlet wire: Φ 1.5mm-Φ 1.8mm
2. Outlet wire: Φ 0.5mm-Φ 0.6mm
3. Maximum number of drawing dies: 17
4. Drawing method: Horizontal fully submersible drawing lubricant
5. Maximum Line Speed: 120m/min
6. Control system: PLC Dual inverter control
7. Capstan slip ratio: 15%
8. Body structure: Annealed steel welding
9. Cone pulley: Mold steel vacuum quenching treatment
10. Max. Dia. Of cone: Φ 230mm
11. Dia. Of capstan: Φ 253mm
12. Dia. Of take-up roller(Taiwan): Φ 300mm
13. Max. Amount of load wire: 25kg
14. Main power: 7.5kw
15: Take-up power: 2.2kw
16. Transmission: Synchronous wheel, synchronous belt, flat belt
17. Brake: Free brake
18. Take-up engine transmission: Cycloidal pin gear speed reducer, striangle belt

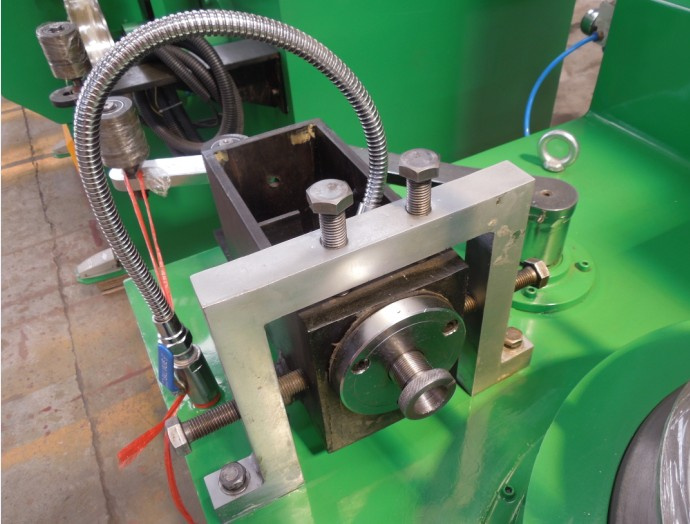

19. Liner adjustment(1): Finished mold universal adjustment
20. Liner adjustment(2): Straightening device adjustment
21. Dimension(L*W*H)mm: 4300mm*1300mm*1800mm
22. Weight(kg): 2900
Jiangyin Xiangle Machinery Manufacturing Co., Ltd. Has established itself as one of China's leading names in the field of Wire Drawing Machines, Annealing Furnace, and other related accessories with our promise of quality products that stay ahead of time.
Our main products are series stainless steel wire drawing machines, Spring wire drawing machine, annealing machine lines, take-up machines, copper wire drawing machine and other related equipments. We believe that perfect high-quality products only come from zero defect production process. We have adopted the advanced production equipment and technology, scientific & standardized management system and strict testing standards to ensure international advanced level on quality, structure, performance and appearance.
Our Management Concept
Quality is the life: To perfect quality is the continual goal of our company staffs all the time
Service is the key: To provide satisfying service is our responsibility.
Innovation is the power: Holding the concept of technology and innovation, we will try our best to develop new product.
Integrity is the principle: Seek truth from fact, manage company with good faith.
We make each component with all our mind and energy; Meet multiple requirements all from clients' interests. We hope to create mutual benefit with our clients!
Your choice, we care! . Please feel free to contact us for further information.
