Water Tank Extrusion Blow Mould Machine for 200-5000L

Water Tank Extrusion Blow Mould Machine for 200-5000L
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T

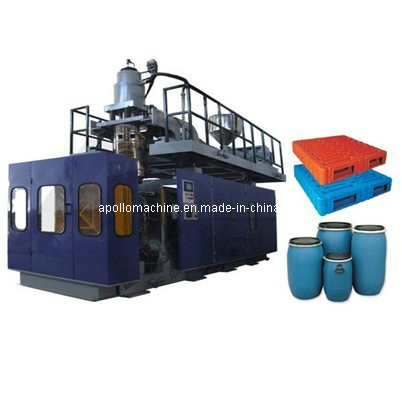

 HDPE LDPE PE PP plastic extrusion blow mold machine

ABLD150 Single station single die head

Specifications

1. HDPE LDPE PE PP plastic bottle making machine

2.European technology and imported spare parts

3.Easy to operate and maintain

4.CE proved





Technical Parameters: ( ABLD150)



Max. Product volume

2000 liters

Screw diameter

150mm

Screw L/D ratio

33L/D

Screw drive power

132KW

Screw heating capacity

36 KW

No.of heating zone

6 zones

Output of HDPE

620-840KG/H

Oil pump drive power

75 KW

Clamping force

1800 KN

Max.size of mold

1730 X 2200mm

Mold stroke

1000-2700mm

Max.die diameter

1000mm

Blowing pressure

1.2 mpa

Air Volume

6 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

240L/MIN

Size of Machine

11.5x7.5x8m

Weight of machine

72 ton


Prod Model: ABLD150
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Extrusion Blow Molding Machine
Raw Material: HDPE
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
We Apollo Machinery, located in the high-speed developing port city-Zhangjiagang, which is nearby to the international big city-Shanghai, specializes in making various kinds of blowing molding machine for the solution for plastic industry. We have specialized in this field for over 10 years. Our company with over 100 staff was established in 1997, occupy 8000 square meters.

Through over 10 years of hard struggle, our company has developed from a small company to Medium and Large size company. We always place our customer's profit on the first place through high quality, responsible price and considerate after-sale sevices.

We can provide blow molding machines for various kinds of plastic products, including cosmetic packaging, medical packing, washing packing, foodstuff packing, lubricate packing, plastic toys, hollow tube, tool boxes, chemical barrel and more. Our machinery are suitable for plastic containers from 5ML to 200L. Our machinery are also suitable for various kinds of plastic processing such as: PP, PE, PVC, PA, ABS, PPE, POM, PPO, HDPE, PVDC, EVOH, PETG and so on. So we are confident that we can meet your various kinds of demands for plastic blow molding machines.

Our products have a great reputation in the blow molding machinery and our products are always warmly welcomed by our new and old customers. Not only our sales in our domestic land, our products are also exported to overseas, such as America area: Canada, Mexico, Argentina, Colombia, Europe area: UK, France, Germany. Russia, Middle East area: Saudi Arabia, Oman, Iran, Turkey and the other countries of Asia: Japan, Philippines, Myanmar, India and more.
