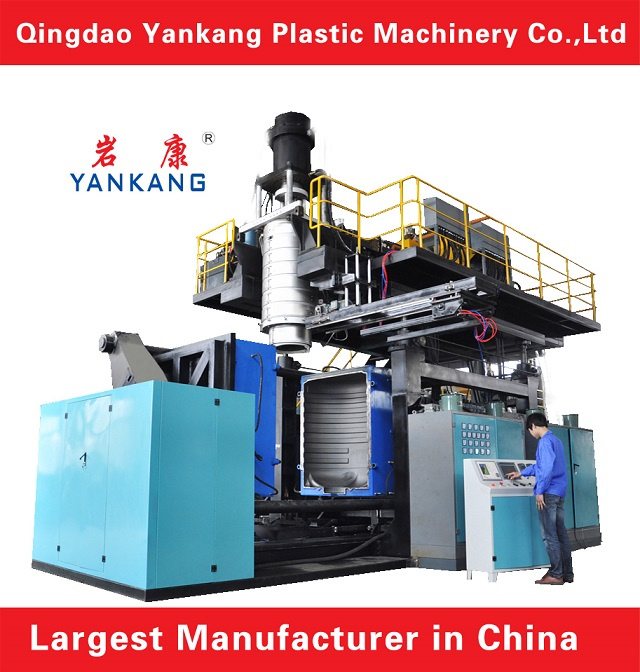

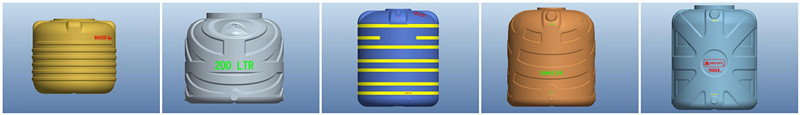

3000L Three layer blow molding machine,can produce 500-3000L water tanks.
1.Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the operation easy.
2.Adopt progressive hydraulic system by ourselves,easy to control.
3.Adopt inverter to control the clamping system,saving a lot of energy.
4.The technology of DIe Head is the same with Germany.5.
Configuration:PARISION CONTROL THINCKNESS CONTROL | MOOG | JAPAN |
PLC | SEIMENS | GERMANY |
TEMPERATURE CONTROL MODULE | SEIMENS | GERMANY |
SERVO VALVE & SERVO TRANSDUCER | MIRAN | ITALY |
INVERTER | SEIMENS | GERMANY |
HYDRAULIC OIL SEAL | DZ | TAIWAN |
INTERMEDIATE RELAY | OMRON | JAPAN |
PNEUMATIC VALVE | AIRTECH | TAIWAN |
HYDRAULIC PUMP & VALVE | YUKEN | JAPAN |
PNEUMATIC SWITCH & CONTACTOR | SEIMENS | GERMANY |
HYDRAULIC MOTOR & SCREW MOTOR | SEIMENS | GERMANY |
REDUCER | GUOMAO | CHINA |
6.Specification
No |
| specifications | 3000 Liter |
|
| Model No. | 3 layers |
|
| Processing material | HDPE/HMWHDPE |
1 | Extruders | Gear Box Type | Hard Surface |
Extruder Drive Motor(Inter) | 75KW |
Extruder Drive Motor(Middle) | 75KW |
Extruder Drive Motor(Outer) | 75KW |
Heating Load | 110KW |
Max Screw Speed | 60RPM |
2 | Accumulator Die Head | Pusher Cylinder | ∮560X400mm |
Heating Load | 90KW |
Parison Control Cylinder | ∮530X50mm |
Die-Core size[Min/Max] | ∮300-700mm |
Max. Parison weight | 80KG |
3 | Moulding Clamping Unit | Clamping Platen Size | 2100X2200mm |
Max Mold Size | 1900X2300mm |
Mould Clamping Force | 2200KN |
Mould Thickness | 1000-2200 |
Clamping Pull Bar | 150mm |
4 | Hydraulic System | Hydraulic Drive motor(Main) | 45KW |
Hydraulic Drive motor(Parison Control) | 7.5KW |
Oil Tank Capacity | 1200L |
5 | Gripper | Gripped Stroke | 350mm |
Discharge Stroke | 2400mm |
6 | Hopper Loader | Loader | 800kg/H 3pcs |
Hopper | 50Kg 3pcs |
7 | Weight |
| 65Ton |
8 | Size |
| 12X4.5X7.2M |
9 | Total Power |
| 350KW |
10 | Average power |
| 250KW |

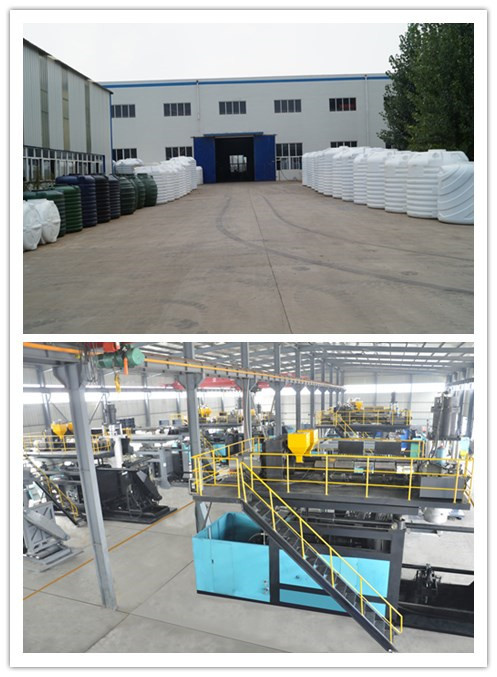

Qingdao YANKANG Plastics Machinery Co., Ltd., is the largest professional manufacturer of blow molding machine for 200L upto 10000L with single layer to five layers in China. It is 40 munites driving from Qingdao international Airport.
When you work with YANKANG, you get comprehensive technical support starting with pre-sales consultations, though to the training and service needed to make your machine work profitably. Our trained personnel will analyze your production requirements, conduct a thorough project study, and provide you with total blow mold plant planning.
We have amassed many years of experience in the blow molding industry, strive to advance blow mold technology, and are always creating new ways to optimize plastic machine performance. Our global sales continue to rise. You can gind YANKANG plastic blow molding machinery on 5 continents and in 80 countries! Such as India, Sri Lanka, Africa, America, Iraq, Iran, Saudi Arabia, Indonesia, Ethiopia. We take this as a major indicator of the trust YANKANG has earned among its clients and the firm grasp we have of market trends. YANKANG Plastic Machinery, with years of blow molding technological experience is the reliable and trusted source for blow molding machines and knowledge.
Customer's satisfaction is our biggest pursuit. We believe that quality is the life of an enterprise!
