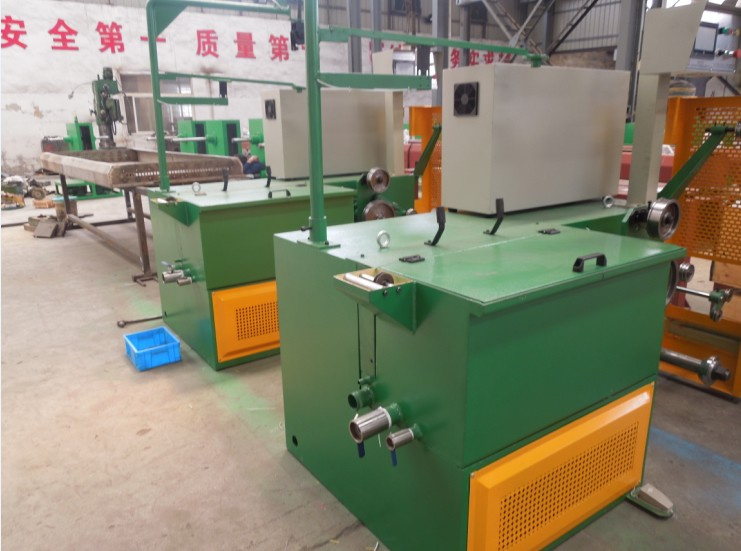

Wire Drawing Machine withΦ 2.5 mm to Φ 2.0mm Raw Material Diameter
1. Inlet wire: Φ 2.5 mm-Φ 2.0mm
2. Outlet wire: Φ 1.0mm-Φ 0.8mm
3. Maximum modulus: 8
4. Drawing method: Horizontal two-cones method
5. Maximum Line Speed: 150m/min
6. Control system: PLC Dual inverter control
7. Tension control: Automatically adjust potentiometer
8. Capstan slip ratio: 12%
9. Body structure: Annealed steel plate welding
10. Cone pulley: Mold steel vacuum annealing treatment
11. Max. Amount of load wire: 50kg-200kg
12. Main engine power: 11kw
13: Take-up engine power: 1.5kw
14. Traverse power: 90W
15. Take-up bobbins: Φ 300mm-Φ 500mm
16. Transmission: Synchronous wheel, flat belt
17. Brake: Electromagnetic Brake
18. Colour: Green, yellow
Jiangyin Xiangle Machinery Manufacturing Co., Ltd. Has established itself as one of China's leading names in the field of Wire Drawing Machines, Annealing Furnace, and other related accessories with our promise of quality products that stay ahead of time.
Our main products are series stainless steel wire drawing machines, Spring wire drawing machine, annealing machine lines, take-up machines, copper wire drawing machine and other related equipments. We believe that perfect high-quality products only come from zero defect production process. We have adopted the advanced production equipment and technology, scientific & standardized management system and strict testing standards to ensure international advanced level on quality, structure, performance and appearance.
