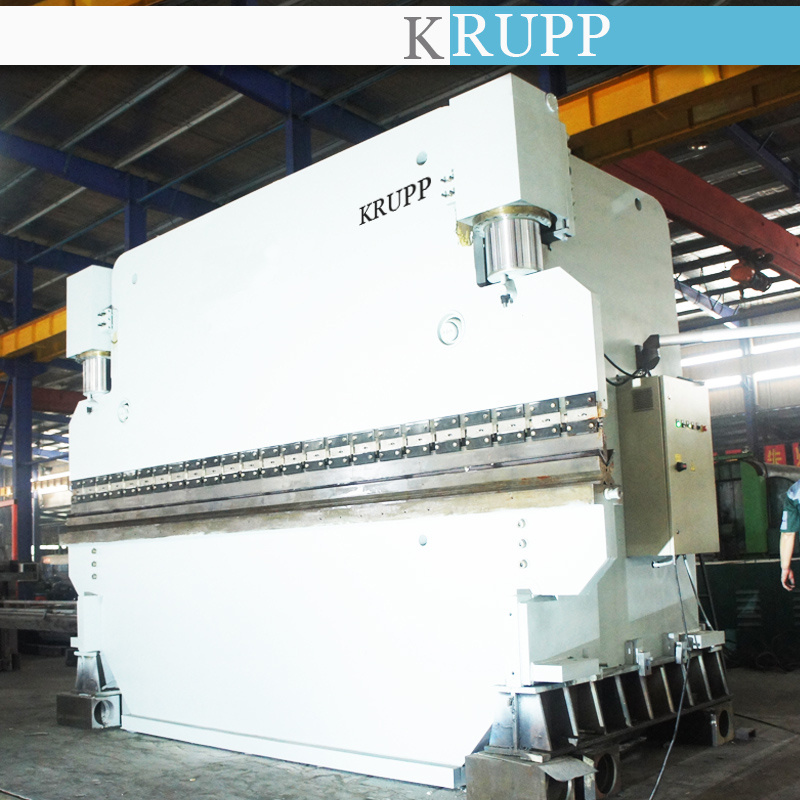

Wc67y Series Steel Metal Cutting and Bending Machine

Wc67y Series Steel Metal Cutting and Bending Machine
Price: US $ 7450SET
Trade Terms: FOB,CFR,CIF
Min Order: 1SET
Pay Type: L/C,T/T,D/P
1.All steel welded structure,vibrating treatment of aging for removal of internal stress with high strength and good rigidity.
2.Torsion shaft forced synchronization of mechanical limit stopper balance with high precision. 3.Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.
 4.Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.
5.Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
6.Multiple machine combined operation is possible.

Model
(WC67Y)
Nominal
Pressure
 (kn)
Length
of table
 (mm)
Distance Between
Housing (mm)
Throat
Depth
(mm)
Stroke
(mm)
Open
High
(mm)
Main
 Motor
(kW)
Dimensions
(L x W x H) (mm)
40/22004002200180022010034042260x1200x2070
40/25004002500200022010035042560x1200x2070
50/25005002500200025010035042560x1200x1900
63/2500630250020002501203505.52560x1250x2110
63/3200630320026002501203505.53260x1250x2110
80/3200800320026002501203707.53260x1250x2190
80/4000800400032002501203707.54060x1320x2250
100/32001000320026003201203807.53260x1350x2400
100/40001000400032003201203807.54060x1350x2420
125/3200125032002600320120400113260x1420x2550
125/4000125040003200320120400114060x1420x2550
160/3200160032002600320200480113260x1520x2700
160/4000160040003200320200480114060x1520x2800
160/5000160050004000320200480115060x1700x2850
160/6000160060005000320200480116060x1700x2900
200/3200200032002600350200490153260x1600x2850
200/4000200040003200350200490154060x1600x2880
200/5000200050004000350200490155060x1800x2950
200/6000200060005000350200490156060x1800x3000
250/400025004000320040025056018.54060x2100x2920
250/500025005000400040025056018.55060x2100x2970
250/600025006000500040025056018.56060x2100x3050
300/4000300040003200400250560224060X2170X3280
300/5000300050004000400250600225060x2230x3330
300/6000300060005000400250600226060x2230x3420
400/4000400040003200450250600374060x2350x3300
400/5000400050004000450250600375060x2350x3380
400/6000400060005000450250600376060x2350x3450
500/4000500040003200500300660454060x2600x3600
500/5000500050004000500300660455060x2600x3600
500/6000500060005000500300660456060x2600x3650
600/4000600040003200600300700554060x2600x3600
600/5000600050004000600300700555060x2600x3700
600/6000600060005000600300700556060x2600x3800
     The above data is just for your reference,if there is any disaccord please refer to actual data




Prod Model: wc67y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type For Pipe And Tube Bending Machine: Press Brake
Processing: Aluminum,Stainless Steel Plate,Carbon Steel
Color: Customized
Sealing Element: Imported
Ma'anshan Krupp Machinery Trade Co., Ltd is located in Ma'anshan Bowang

Industrial park. We are near to Nanjing South station and Nanjing Lukou airport, which is convenient to be visited.

Our company adopts international advanced management mode and imports Japanese and German technology. We are the enterprises with collection brand, research and development, design and manufacture.

We passed ISO9001: 2008 international quality system certification and has obtained many patent. All machines are with CE certification.

Our company are professional in producing metal forming machine, including CNC press brake, shearing machine, rolling machine, combined punching shearing machine, hydraulic notching machine, punching machine and all kinds ofmechanical tools, die.

We have rich clients in many countries and regions. Beside offer the machines with good quality, we also have experienced after sales service team. If thereis need, our engineers can go to the buyer's side to offer training and installation at the earliest time.

"Quality Create Future" is our concept. We'll try our best to achieve every product.
