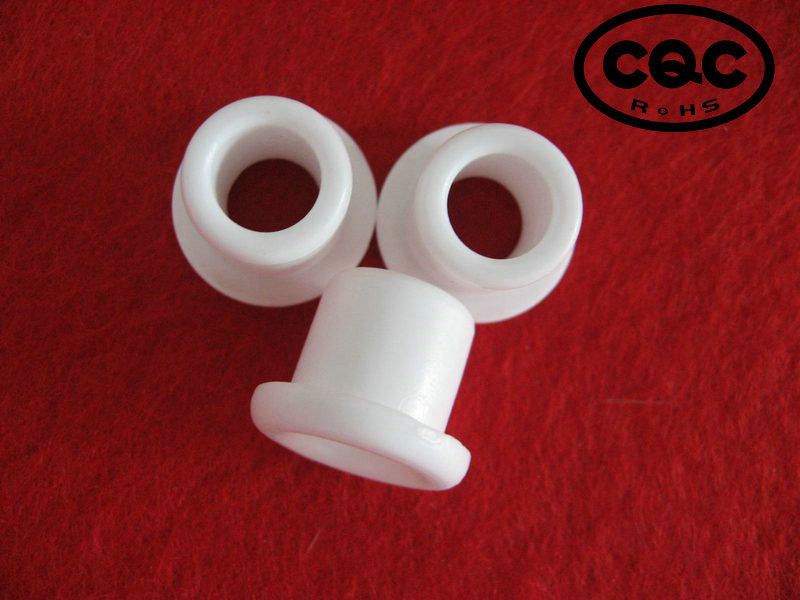

wear resistance 99% alumina ceramic eyelet for textile machinery
Material: 95%, 99% Alumina ceramic, titania oxide ceramic
Color can be pink, Ivory,black, yellow etc.
Surface: Polishing or Glazing
Features:
1. these textile ceramic parts do not wear easily, low friction
2. desirable surface fineness
3. suitable for use in textile machinery and in fine spinning and kintting machines
4. we can produce textile ceramic products according to clients specifications and evern the
molds and drawings.
Item | Test Condition | Unit Symbol | 95% Alumina ceramics | 99% Alumina ceramics | 99.7% Alumina ceramics |
The main chemical ingredient |
|
| Al2O3 | Al2O3 | Al2O3 |
Bulk Density |
| g/cm3 | 3.6 | 3.89 | 3.96 |
Maximum Use Temperature |
|
| 1450°C | 1600°C | 1650°C |
Water absorption |
| % | 0 | 0 | 0 |
ROHS Hardness |
|
| ≥85 | ≥89 | ≥89 |
Flexural strength | 20° C | MPa (psi x 103) | 358 (52) | 550 | 550 |
Compressive Strength | 20° C | MPa (psi x 103) | 2068 (300) | 2600(377) | 2600(377) |
Fracture Toughness | K(I c) | Mpa m1/2 | 4-5 | 5.6 | 6 |
Coefficient of thermal expansion | 25-1000° C | 1X 10-6/°C | 7.6 | 7.9 | 8.2 |
Coefficient of thermal conductivity | 20° C | W/m °K | 16 | 30.0 | 30.4 |
Thermal Shock Resistance | Tc | °C | 250 | 200 | 200 |
Dielectricity constant | 1MHz.25°C |
| 9 | 9.7 | 9.7 |
Dielectric strength |
| ac-kV/mm (ac V/mil) | 8.3 (210) | 8.7 (220) | 8.7 (220) |
Volume Resistivity | 100°C | ohm-cm | > 1013 | > 1014 | > 1014 |
