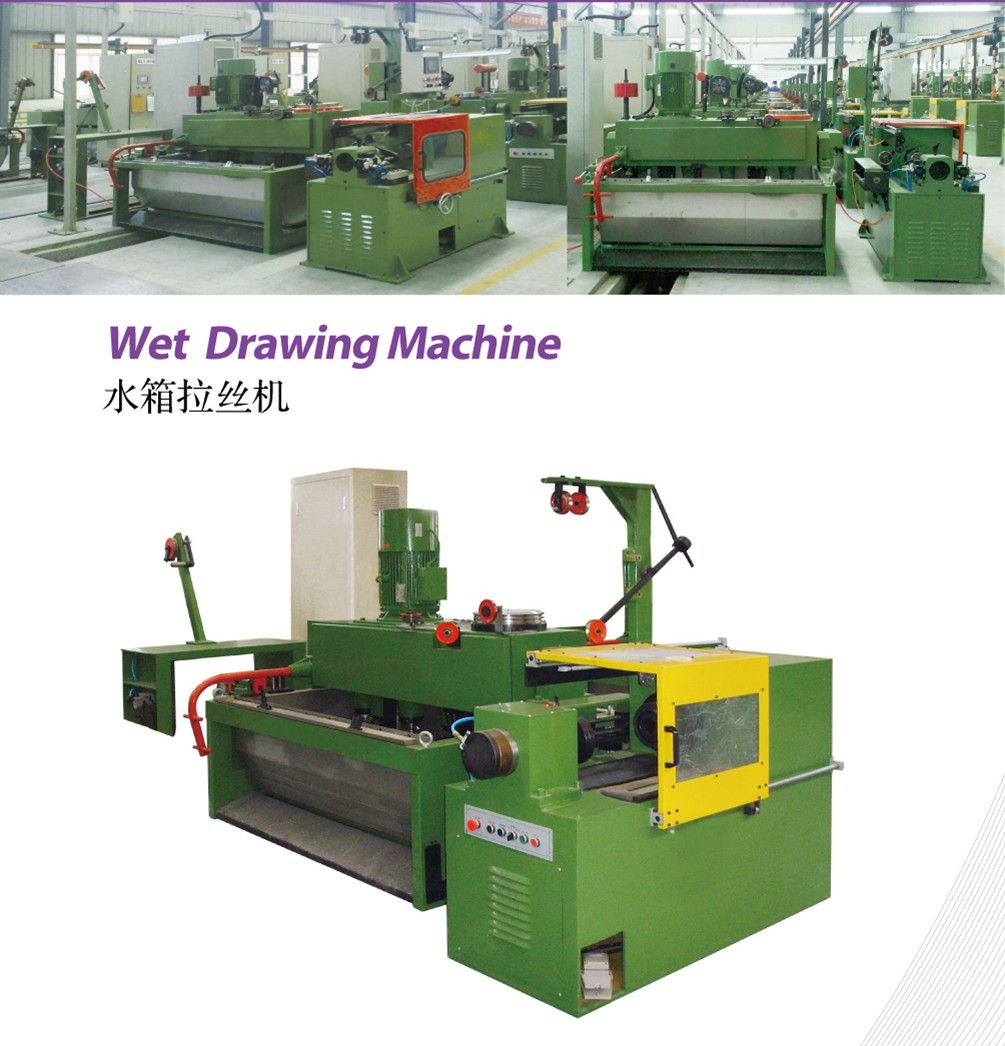

Wet Type Wire Drawing Machine

Wet Type Wire Drawing Machine
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Specifications
1. Stainless steel wire from 0.12-0.3mm
2. Full immersion
3. Dual motor and dual inverter.
4. Stepping motor traverse

1. Usage:

This type is used for drawing S. S wire from 0.6-1.0mm to 0.12mm-0.30mm


2. Advantage:
1). Full immersed lubrication system, transmission by teeth belt, constant tension, low noise
2). Special tool steel Capstan
3). PLC control, dual motor and dual inverter
4). Special alignment device at final die position, keep wire verticality and quality, which is good for next process
5). Stepping motor traverse, pitch adjustable, smooth traversing.
6). Protection device for wire disorder; Machine auto stop if mother wire disorder or break.

3. After-sell service
3-1. Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem

3-2. Guarantees
Since the shipment date, 12 month for mechanical part, and 6 month for electrical part.

4. Main Spec:
Machine type JCJX-24B/A
Control system Traditional analog type
Computer digital control
Inverter control Dual Inverter control
Drawing dies No./Max. 24
Inlet diameter Ø  0.60--1.00mm
Outlet diameter Ø  0.12--0.30mm
Drawing line speed 200~500m/min
Frame Welded by steel
Capstan Tool steel
Main motor 7.5/11KW
Spooler motor 4KW
Spool bobbin size Φ300
or according to customers requirements
Traversing unit Stepping motor
Transmission type Teeth belt + Flat belt
Max .loading capacity 50KG
Lubrication type Spray type
Power source 380V 50/60HZ or others
Machine dimension (mm) 2000×1600×1900
Machine weight 2500KG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Zhangjiagang Sanyuantai Machinery Co., Ltd is an equipment manufacturer engaged in service for steel cord and metal manufacturers. With an experienced design team, insisting on the purpose of company of " Quality for survival, Reputation to develop, Technology lights path, Service creates brand", following the business philosophy of " Honest, Practical, and Innovative", the company continuously improves the product quality and technical content in order to help your business take off.

The company products mainly include straight wire drawing machine, wet drawing machine, double twist stranding machine, wrapping machine, etc. These products have been exported overseas, such as Korea, Japan, US, and other countries.

Welcome to visit our company!
