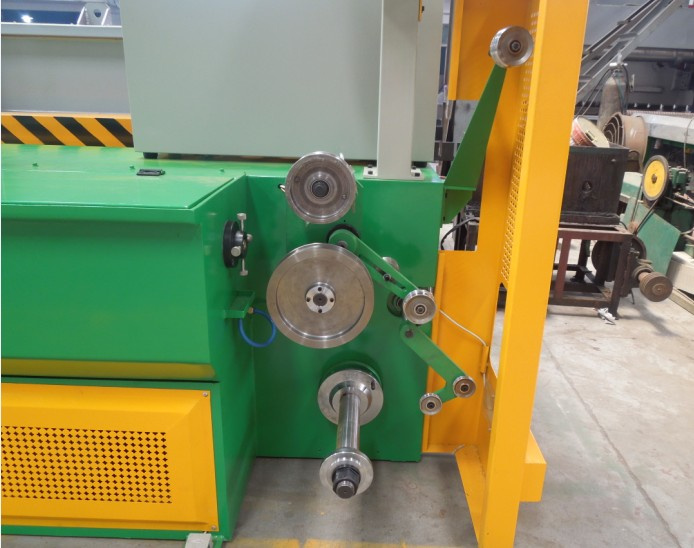

CL-15D/B
1. Inlet wire: Φ 1.6mm-Φ 1.2mm
2. Outlet wire: Φ 0.6mm-Φ 0.3mm
3. Maximum modulus: 15
4. Drawing method: Horizontal four-tower wheel method
5. Maximum Line Speed: 250m/min
6. Control system: PLC Dual inverter control
7. Tension control: Automatically adjust potentiometer
8. Capstan slip ratio: 15.6%
9. Body structure: Annealed steel welding
10. Round tower: Mold steel vacuum annealing treatment
11. Max. Dia. Of round tower: 230mm
12. Dia. Of capstan: 253mm
13. Max. Amount of load wire: 50kg-100kg
14. Main engine power: 4kw
15: Take-up engine power: 1.5kw
16. Traverse power: 90W
17. Brake: 10kg Electromagnetic Brake Overall
18. Dimension(L*W*H)mm: 2700mm*1150mm*2000mm
19. Weight(kg): 2100
Jiangyin Xiangle Machinery Manufacturing Co., Ltd. Has established itself as one of China's leading names in the field of Wire Drawing Machines, Annealing Furnace, and other related accessories with our promise of quality products that stay ahead of time.
Our main products are series stainless steel wire drawing machines, Spring wire drawing machine, annealing machine lines, take-up machines, copper wire drawing machine and other related equipments. We believe that perfect high-quality products only come from zero defect production process. We have adopted the advanced production equipment and technology, scientific & standardized management system and strict testing standards to ensure international advanced level on quality, structure, performance and appearance.
Our Management Concept
Quality is the life: To perfect quality is the continual goal of our company staffs all the time
Service is the key: To provide satisfying service is our responsibility.
Innovation is the power: Holding the concept of technology and innovation, we will try our best to develop new product.
Integrity is the principle: Seek truth from fact, manage company with good faith.
We make each component with all our mind and energy; Meet multiple requirements all from clients' interests. We hope to create mutual benefit with our clients!
Your choice, we care! . Please feel free to contact us for further information.
