Main parameter
Inlet wire: 1.2mm-0.8mm
Outlet wire: 0.4mm-0.2mm
Maximum modulus: 22
Maximum Line Speed: 600m/min
Advantage:
1). XIANGLE use Inovance Brand PLC device
2). Safe in operation, low in noise
3). Machine's body and other key components and parts are produced by our own factory, quality is reliable
4)Quality Strength: Test material before production, Test running machine before shippment
|

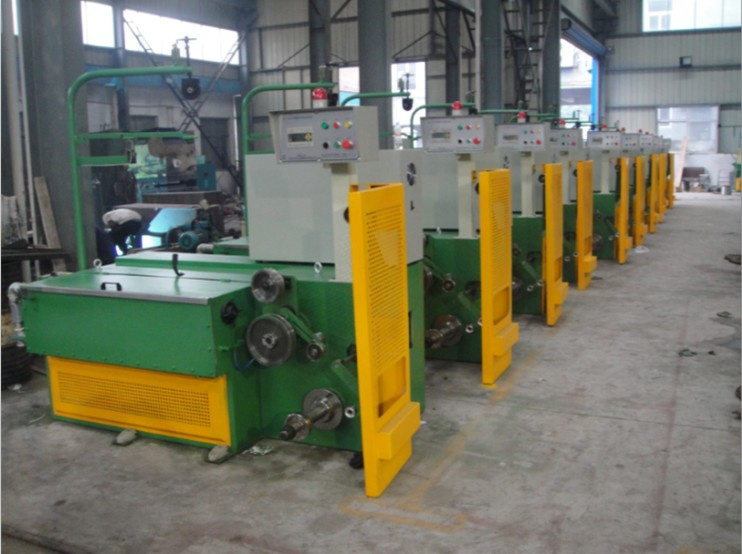

CL-22D Technical parameter |
|
Inverter Control |
PLC Double inverter control |
|
main machine structure |
four cones in horizontal |
|
Inlet Dia |
1.2~0.8mm |
|
Outlet Dia |
0.4~0.2mm |
|
Max number of drawing dies |
22 |
|
Max line speed(m/min) |
600m/min |
|
Material of Drawing Cone |
High Abrasion Resistance Mould Steel |
|
Slip ratio of m/c: |
15.6% |
|
Main motor power(k w) |
7.5k w |
|
take-up motor |
1.5kw |
|
capstan Dia (mm) |
200mm |
|
Transmission type |
flat belt |
|
Take-up bobbin size(mm) |
250-300mm |
|
Traversing type |
Steeper motor |
|
Tension control |
weight balance type |
|
Lubrication type |
Fully immersion |
|
Brake |
10kg Electromagnetic Brake |
|
Weight |
1600kg |
Jiangyin Xiangle Machinery Manufacturing Co., Ltd. Has established itself as one of China's leading names in the field of Wire Drawing Machines, Annealing Furnace, and other related accessories with our promise of quality products that stay ahead of time.
Our main products are series stainless steel wire drawing machines, Spring wire drawing machine, annealing machine lines, take-up machines, copper wire drawing machine and other related equipments. We believe that perfect high-quality products only come from zero defect production process. We have adopted the advanced production equipment and technology, scientific & standardized management system and strict testing standards to ensure international advanced level on quality, structure, performance and appearance.
Our Management Concept
Quality is the life: To perfect quality is the continual goal of our company staffs all the time
Service is the key: To provide satisfying service is our responsibility.
Innovation is the power: Holding the concept of technology and innovation, we will try our best to develop new product.
Integrity is the principle: Seek truth from fact, manage company with good faith.
We make each component with all our mind and energy; Meet multiple requirements all from clients' interests. We hope to create mutual benefit with our clients!
Your choice, we care! . Please feel free to contact us for further information.
