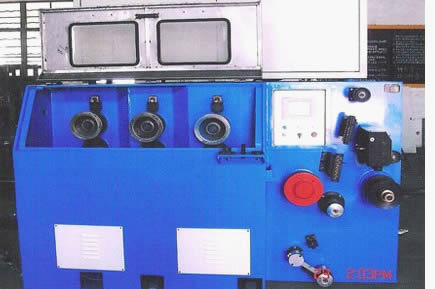

Compared with straight line wire drawing machine, wet wire drawing machine has two notable characteristics. First, in the drawing process, there are varying degrees of relative sliding between the drawing wire and the spool (except finished spool). Second, when the wet wire drawing machine is in operation, wire, spool and wire drawing die are immersed in or be sprayed by cooling lubricating fluid.
Wet wire drawing machine has a broad market for its compact structure, small footprint and high drawing-intensive as well as no torsion in its running time. It is well suited for high speed drawing for good conditions of cooling and lubricating of drawing wires.
While in the drawing process, the relative sliding of drawing wire and the surface of spool consumes much power and abrasive wear of spool surface. Owing to the structure restriction of this wire drawing machine, it is more suitable for drawing wires of smaller diameters.
Wet wire drawing machine is available for drawing mild steel, carbon steel, stainless steel, copper, aluminum and alloys.
Sever types of wet wire drawing machines are provided and each of them has its own features. You can select the right one according to your particular conditions.
25 Dies wet wire drawing machine
Turnover type wet wire drawing machine
High-speed wet wire drawing machine
25 Dies wet wire drawing machine
Main technical parameters:
Inlet diameter: Φ 0.9-2.0mm
Inlet strength: 1350MPa
Outlet diameter: Φ 0.15-0.41mm
Drawing passes: 25; Average unit pressure: 13%
Max drawing speed: 25m / s
Motor power: Tank - 37KW AC inverter motor and spool - 5.5KW
Cone pulley: Monolithic assembly, surface coating - tungsten carbide, HRC58-62
Transmission Type: Synchronous belt
Application
Available for mild, medium and high carbon steel.
Turnover type wet wire drawing machine
Applied in drawing rope steel wire, steel rod, galvanized zinc iron wire, silicon slice saw wire, etc.
Technical parameters:
Item LT21/275 LT23/280 LT25/230
Drawing drafts 21drafts 23drafts 25drafts
Max. Inlet diameter Φ1.80mm Φ1.50mm Φ1.50mm
Min. Outlet diameter Φ0.25mm Φ0.10mm Φ0.10mm
Drawing speed 20m/s 20m/s 20m/s
Motor power 22KW 18.5-30KW 18.5-30KW
Inlet wire tensile strength ≤ 1250Mpa
Transmission mode Timing belt, AC frequency inverter control speed
Capstan production chart Supersonic spray with WC, service life: 22000 hours
Cooling system Capstan submerged in lubrication and cooling, tractor is hollow, recyclable water cooling inside, be suitable to high speed drawing.
Tensile strength system Consist with tight and loose pulley, tensile cylinder is adjustable.
Arrange wire device Ball screw, driven by frequency inverter motor or servo motor, realize precision lay wire and flat arrange wire.
Steel wire linearity Design and assemble all kinds of straightener, coil diameter of finished wire is stable and adjustable.
Take up mode I-spooler take-up
Control mode AC frequency invert + PLC + man-machine interface + constant, complete digital logic control
Drawing materials Rope steel wire, steel rod, galvanized zinc iron wire, silicon slice saw wire, etc.
High-speed wet wire drawing machine
Characteristics:
Innovation design and rational manufacturing process insures no leak in 3 years.
Box type welding machine structure, safety and beauty, insure high speed drawing reliable and stable.
Complete digital logic control, man-machine communication, status display, information service, etc.
Tension spooling and meter precision make steel wire better linearity.
Special design and control, satisfied with all kinds of I-spooler take up wire.
Parameters:
Anping Junchi wire drawing machinery Co., Ltd., a professional wire drawing machine manufacturer in China, has been engaged in fabricating wire drawing machines and other auxiliaries for 15 years. Our company has accumulated rich experience of developing, designing and manufacturing qualified products with easy operation and safety. Wire drawing machines can be classified into two kinds by different lubrication conditions: Dry drawing and wet drawing. Generally, straight line wire drawing machine is a kind of dry drawing machine, for its wire, coil and other related parts are not submersed in lubrication fluid. This drawing machine has better productivity due to higher drawing speeds with twist-free operation. As a result of good cooling condition, low torsion, less wire deviation, the finish wire has a better quality.
In contrast to dry drawing, wet wire drawing is notable for its wire, coil are soaked in lubrication liquid. This makes sure good lubrication condition and reduces friction force between the wire and equipment. It is ideal for drawing fine wires, ferrous or non-ferrous.
In addition, our company still produces related auxiliary, such as pointing machine, straightening and cutting machine, wire butt welding machine, wire payoff machine, vertical take-up machine. There are essential elements for a wire drawing industry and will improve the productivity.
Anping Junchi wire drawing machinery Co., Ltd. Always has been doing endeavor to manufacture first-class equipment to meet with various requirements of our customers'.
