| Price: | US $ 9500/Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

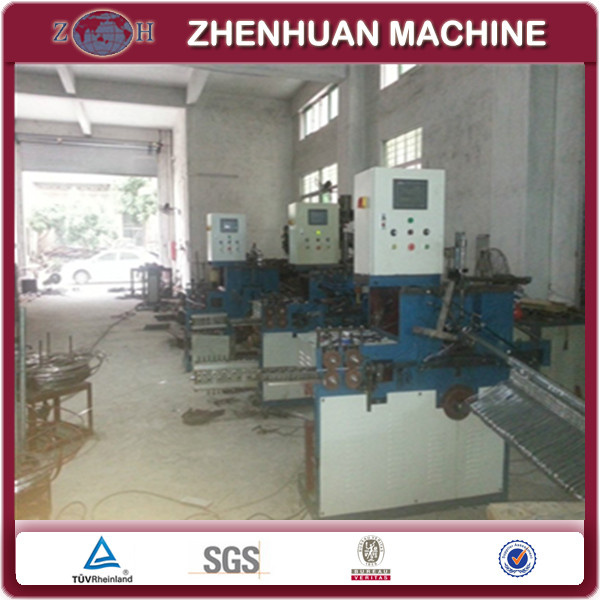

I. product description of the Wire clothes hanger making machine
a. CNC automatic hanger forming machine feed mechanism 750W-2000W servo motor control, which is characterized by feeding speed, high precision length.
b. fully automatic CNC hanger molding machine of the use of three-phase 380V 1.5KW motor inverter control, easy to adjust the molding speed
c. the automatic CNC hanger molding machine operation by man-machine interface and touch panel operation buttons for automatic operation and manual operation.
II. Technical parameters of the Wire clothes hanger making machine
Hanger size: 28-48 mm
Table size: 1850 x 1000 x 1680 mm
Weight: 950 kg
Wire diameter: 1.6 ~ 5.0 mm
Packing size(Clothes hanger machine): 1400 x 1000 x 1600 mm
Raw material: stainless steel wire, iron wire, galvanized wire
output: 35 pcs/min
Serve motor power: 2.0 kW
Main motor power: 2.2 kW
III. Main advantage of the Wire clothes hanger making machine
a. Length Preferring standards
b. The speed can be adjusted according to diameter, any of the speed.
c. The high speed is fast, the fastest production can produce 45 per minute.
d. Most convenient replacement mold (hangers styles) convenient and simple, and the screen enter the required wire length, moving knife position on the line
e. The aircraft can be adapted to the production of: 201 stainless steel, 410 stainless iron, plating line, ordinary wire coated wire and aluminum wire.
IV. Price of the Wire clothes hanger making machine
Price basis: FOB Shanghai, China.
Payment: 30% down payment by T/T in advance, the balance by T/T before shipment.
Lead-time: within 30 days after receiving down payment
Our company will be your reliable and professional supplier of the post-tension steel pipe making machine in China. We have been in this line for more than 10 years and have provided the corrugated post-tension tube forming machines to many countries all over the world!
Add: No. 243, Ninghai Road, Rugao City, Jiangsu Province, China 226500
Tel: 0513-87628369
Fax: 0513-87635890
| Prod Model: | YJJ-35 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: | 35 Pieces Per Minute |
| Wire Dia: | 1.6 ~ 5.0mm |
| Serve Motor Power: | 2.0 Kw |
| Power: | 380V,3 Phase, 50Hz |
| Table Size: | 1850X1000X1680mm |
| Weight: | About 950kg |
| Hanger Size: | 28-48 Mm |
| Packing Size(Clothes Hanger Machine): | 1400 X 1000 X 1600 Mm |
| Packing Size(Supply Frame): | 1200 X 1200 X 1000 Mm |
| Raw Material: | Stainless Steel Wire, Iron Wire, Galvanized Wire |
