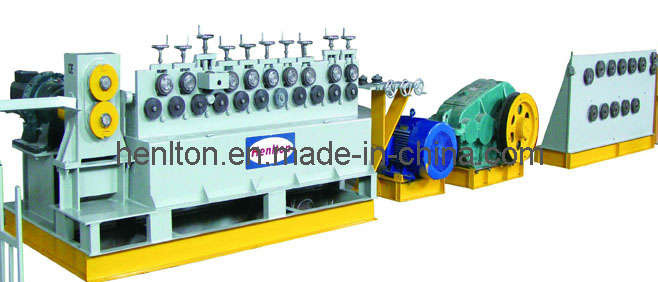

Range of inlet wire diameter is 5mm~12mm, our wire drawing machine can process round bar and deformed bar, maximum reducing diameter is 1mm, the maximum speed of wire drawing machine can up to 130m/min, these series of wire drawing machine suitable for construction site, steel bar processing factory.
In order not to reduce the property of the steel bar, it should pay attention to the material property specification and qualified the related national standard, while extending and straightening processing.
|
Technical Parameters: |
|
Model |
GTS5-12AA |
GTS5-12AB |
GTS5-12AC |
|
Steel Bar Type |
Round Bar, Deformed bar |
Round Bar, Deformed bar |
Round Bar, Deformed bar |
|
Range of Diameter (mm) |
5-12 |
5-12 |
5-12 |
|
Maximum Reducing Diameter (mm) |
1 |
1 |
1 |
|
Maximum Speed (m/min) |
130 |
130 |
130 |
|
Actual Output (Ton/Month) |
900 |
1000 |
1200 |
|
Actual Power Consumption (degree/ton) |
12 |
12 |
12.5 |
|
Rolling Yield (%) |
99.6 |
99.9 |
99.9 |
|
Install Area length× width (m× m) |
29× 3 |
29× 3 |
31× 3 |
|
Installed Capacity (Kw) |
75 |
75 |
76 |
|
Speed Control Mode |
Frequency Conversion |
Frequency Conversion |
Frequency Conversion |
|
Straightening Error(mm/m) |
≤ 3 |
≤ 3 |
≤ 3 |
|
Weight of Equipment (ton) |
6 |
6 |
6.5 |
Chongqing henlton mechanical & electrical equipment Co., Ltd.Is developing from southwest cemented carbide tooling Co., Ltd.Our firm is focus on mechanical cold-rolled steel bar, carbide depth processing and offering technology service.Our company are good at researching, developing and making wire cold rolling line, cold rolling machine, cold rolling mill, straightening and cutting machine, rolling machine, cold-rolled ribbed steel bars production line, making new third reinforced straightening machine and wire drawing machine etc.We have got much praised from every corner of China.
Recent years, our company is inputting a batch of cold-rolled ribbed steel units, a great number of twisted steel cold rolling units and a serial of cold rolling mills.
GZB cold rolling equipment designed sophisticated;The fastest rate can up to 180 meters per minute.Besides, it saves much energy.It just only takes 12 degree per ton, range of the inlet diameter is 4mm-12mm, It is one of the most salable equipments.
GTS wire straightening and cutting machine will bring you much value high efficiency and lower comsumption, our GTS5-12 straightening machine can straightening 5mm~12mm steel bar.
Our straightening machines are high efficiency and maximum speed can up to 130m/min, suitable for construction site, wire straightening factory.
Carbide ribbed roller which our company developed have a good quality.Compared to steel roll, it will reduce production cost sharply.
You get rich, while we get developing.Let's share the fruits that all the devices bring for us.Cooperate with us, we'll have a wonderful tomorrow.
