Specifications

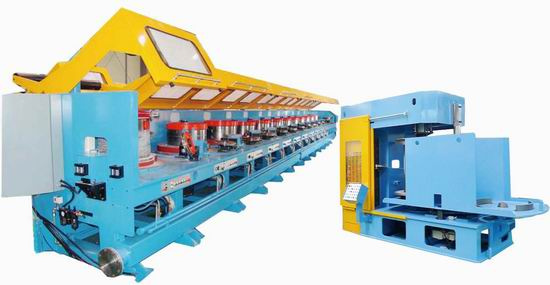

Wire drawing machine
For high&low carbon steel wire
Max. Inlet wire: 5.0mm
Min. Outlet wire: 1.0mm
High efficiency.
The wire drawing machine seriesof our company have absorbed pith from other company in the same industry both at home and broad in the machinery design proccess, different finished products fromou machines have different configurations, which makes us in the leading position of concerning the product characteristics for user; The electric control system adopts AC frequency-variation frequency-variation speed adjusting drive and PLC logical control, and takes the most popular PROFIBUS field-bus type in the world, which not only operates stably and reliably with low energy loss, but also greatly improves the production efficiency. It is applicable to drawing spring steel wires, tyre rib steel wires, steel wires for ropes, optical fiber steel wires, CO2 shield welding wires, flux cores welectrodes for arc welding, alloy and stainless steel wires, aluminum clas wires. Under-relaxation pre-stressed steel wires and so on.
All the products of ourcompany aie manufactured according eo the national industry standard, enterprise standard and advanced international group standard, and have already been widely used in wire rope area, welding wire area, alloy wire area, rubber frame material area and pre-stressed steel wire area.
------------------------------------------------------------------------------------------------------
Suitable material: For stainless steel wire, spring steel wire, steel rope wire, welding wire, steel fibre, tire bead wire, Al clad steel wire and PC strand wire.
Technical parameter:
|
Model(Block diameter) |
300 |
350 |
400 |
450 |
500 |
560 |
600 |
700 |
800 |
900 |
1200 |
|
Strength of inlet wire/MPa |
≤1250 |
|
Number of Block |
2~11 |
2~11 |
2~11 |
2~12 |
2~12 |
2~12 |
2~12 |
2~9 |
2~9 |
2~9 |
2~9 |
|
Maximum diameter of inlet wire(mm) |
2.8 |
3.5 |
4.2 |
5 |
5.5 |
6.5 |
8 |
10 |
12.7 |
14 |
16 |
|
Minimum diameter of outlet wire(mm) |
0.5 |
0.6 |
0.75 |
1 |
1.2 |
1.4 |
1.6 |
2.2 |
2.6 |
3 |
5 |
|
Highest drawing speed(m/s) |
~25 |
~20 |
~20 |
~16 |
~15 |
~15 |
~12 |
~12 |
~8 |
~7 |
~6 |
|
Drawing power(kw) |
7.5~18.5 |
11~22 |
11~30 |
15~37 |
22~45 |
22~55 |
30~75 |
45~90 |
55~110 |
90~132 |
110~160 |
|
Transportation system |
two grade belt transmission;double enveloping worm wheels; gearbox with hard tooth sureface |
|
Way of speed adjusting |
AC Frequency conversion speed adjusting or DC speed adjusting |
|
Way of control |
Profibus field bus control system, touching screen show, human-computer communication, long-distance diagnose function |
|
Way of pay-off |
Spooler pay-off,high pay-off frame, type pay-off,duck-nip pay-off,can pay-off without stop work |
|
Way of take-up |
Spooler take-up, trunk take-up, headstand take-up, and all can take-up wire without stop work |
|
Main function |
Slowdown to stop at fixed length automatically, wire broken test and stop work automatically,cut off any block to compose new technical process freely, slowdown to stop automatically when the protecting shield is open, show of all kinds of fault information and the solution, inspection and control of all kinds of running information |
|
Material that can be drawn |
steel wire(High, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire,rubber tube wire, spring steel wire,cord wire and so on), |
|
Welding wire(Air protecting welding wire,submerged arc welding wire, flux cored wire and so on) |
|
electric wire and cable(Aluminum-clad steel wire,copper wire, aluminum wire and so on) |
|
alloy wire and other kinds of metal wire |
Zhangjiagang Sanyuantai Machinery Co., Ltd is an equipment manufacturer engaged in service for steel cord and metal manufacturers. With an experienced design team, insisting on the purpose of company of " Quality for survival, Reputation to develop, Technology lights path, Service creates brand", following the business philosophy of " Honest, Practical, and Innovative", the company continuously improves the product quality and technical content in order to help your business take off.
The company products mainly include straight wire drawing machine, wet drawing machine, double twist stranding machine, wrapping machine, etc. These products have been exported overseas, such as Korea, Japan, US, and other countries.
Welcome to visit our company!
