LHD 450/13 Slip Type
Heavy-Duty Aluminum Wire Drawing Machine
1. GENERAL DESCRIPTION

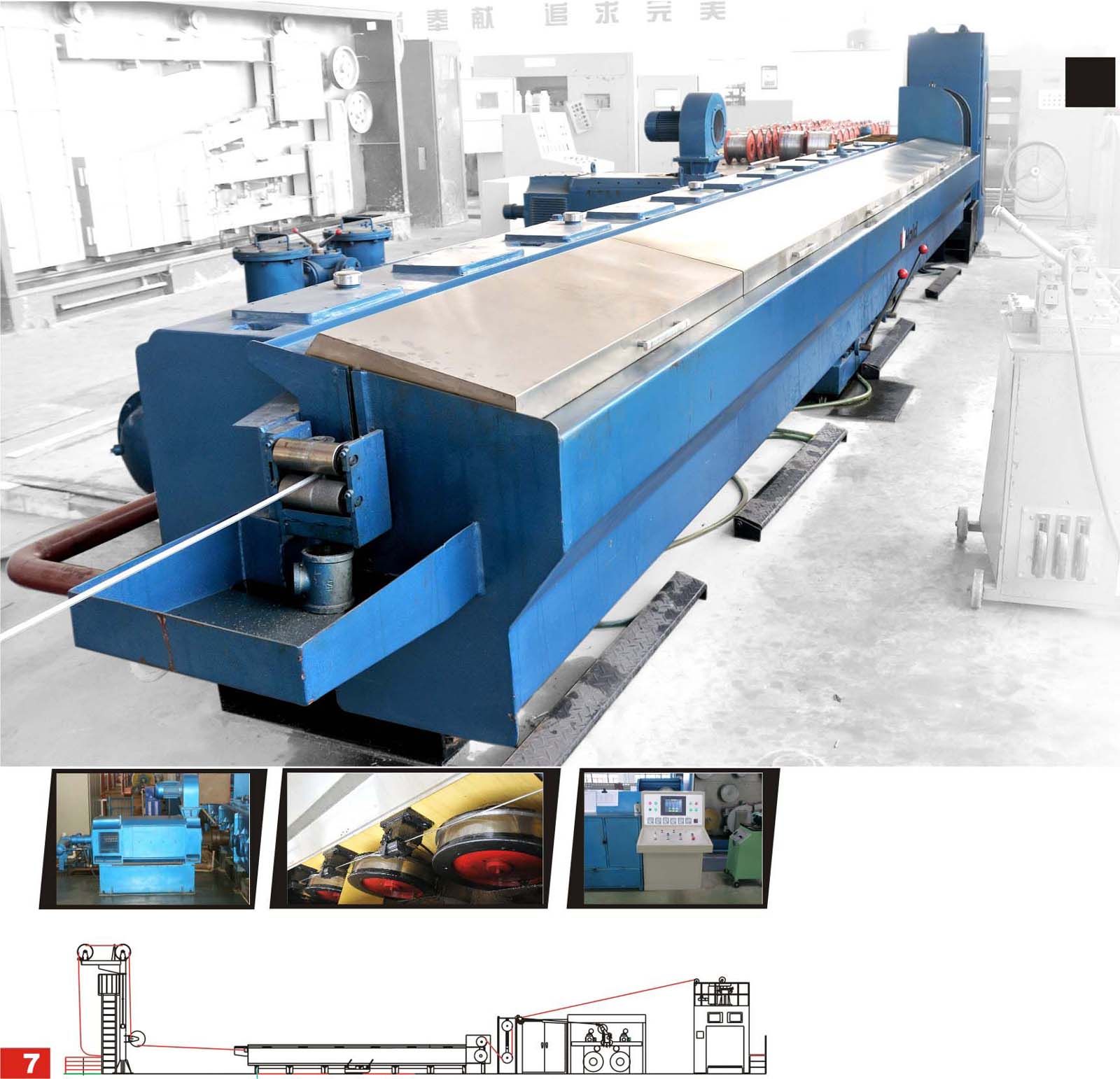

This machine is used to draw φ 1.7-φ 5.0mm aluminum wires from φ 9.5mm (φ 12mm) aluminum wire rods...The drawing blocks are mounted in one row. The constant-speed wheel and the other 12 drawing block are driven by two motors respectively. Such design makes easy operation and change dies quickly.
2. TECHNICAL PARAMETER
2.1 Inlet wire φ 9.5mm (φ 12mm)
2.2 Outlet wire φ 1.7-φ 5.0mm
2.3 Max speed of drawing 23m/s
2.4 Drawing block size φ 450mm
2.5 Max number of passes 13
2.6 Die dimension φ 38× 25
2.7 Capacity of the accumulator 7m
2.8 Dual-reel spooling bobbin size PND500~PND630
2.9 Main motor power 250kW (DC)
2.10 Power of motor for constant speed wheel 55kW (DC)
2.11 Power of motor for dual-reel take up 30kW× 2 (DC )
2.12 Machine dimension 28000× 4200× 5000mm
3. MACHINE COMPONENTS
3.1 Cantilever payoff stand 1set
3.2 Main drawing machine 1set
3.3 Accumulator 1set
3.4 φ 500-φ 630 automatic dual-reel take-up 1set
3.5 Dog mould-piercing mill 1set
3.6 Oil-feeding center of main machine 1set
3.7 Supply center of wire drawing liquid 1set
3.8 Electric control and operating desk 1set
