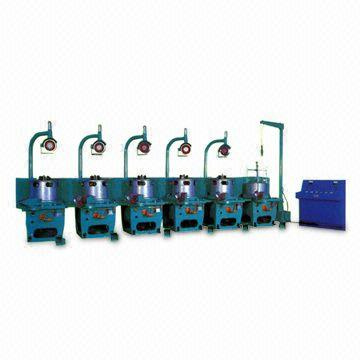

Wire Drawing Machine (SHL-WDM001)

Wire Drawing Machine (SHL-WDM001)
Price: US $ 10589set
Trade Terms: FOB,CIF
Min Order: 1set
Pay Type: L/C,T/T
Wire drawing machine
LW1-6/550 wire drawing machines, idrived by gears, are capable of drawing rod wires of high-, medium-, low-carbon steel, copper, aluminum and appliable to manufacturing industries such as wood screw, nail, conducting wire rope for electrician use, spring etc. With electrical control, this kind of machine is safe in operation, low in noise, and high in capacity.

Specifications:
Model: LW1-6/550
Diameter of the spool (mm): 550
Drawing wire range (mm): 6.5-2.2
Speed of the spool (rpm): 27-168
Power of a single machine (kw): 15-22
Weight (kg): 1400
Overall dimensions (LxWxH): 6050x1685x2100
Number of pot: 4

Wire drawing machine(Water tank type)

Main parameter as following:
1. Dia. Of the speed lock wheel: F315mm
2. Quantity of dies: 9
3. Dia. Of a feeding wire: 1.7mm
4. Dia. The output wires: 1.12× 1.12mm, the minimum: 0.35× 0.35mm
5. Cumulative reduction: 85%
6. Mean reduction ratio: 20%
7. Drawing speed: 300-800m/min
8. Associated motor (frequency control): YCT-160-4-11kw
9. External diemnsion: 1500× 1000× 1000mm (L*W*H)
10. Weight: 1500kg
Prod Model: SHL-WDM001
Markets: North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Metal Wire Drawing Machine: Iron Wire Drawing Machine
Anping ShengHua Metal Wire Mesh Factory located in the famous "silk screen of the township" --- Hebei Anping county, is a large enterprise that produce and sale kinds of wire mesh machines and wire mesh products, is a professional enterprise that gather design and produce wire mesh machine, produce wire mesh products and processing and trade integrative. We have been a "sophisticated quality, timely delivery, reasonable prices, excellent service" for the purposes of customer service, and in production principles, and won new and old clients of the masses.

Company equipment, advanced processes, internal management science, quality assurance system, company-based, reputable, trusted by both domestic and foreign customers. ISO9001: 2000 purchased products through international quality certifications, products are exported to Southeast Asia, the Middle East, the United States, Japan, Africa and other countries and regions.

Main products: Wire Mesh Machine: Wire Mesh: Stainless steel wire mesh, Chain link fence, Welded wire mesh, Wire mesh fence, Hexagonal wire netting; Chain link fence machine, Non shuttle weaving machine, Crimped wire mesh machine, Barbed wire machine, Razor barded wire machine, Window screening machine, Welded wire mesh machine, Expanded metal machine, Keel equipment, Clean ball machine, Wiredrawing machines; Expanded metal mesh etc. Widely used in petroleum, chemical, construction, civil, shield and other various industries. Products and exports throughout Europe, Africa, Southeast Asia and other countries and regions.

I always adhere to the company to survive the quality, credibility and development to the purposes and is willing to make friends in the world, for prosperity and development of screen industries, and community service go hand in hand to create

Brilliant.

Silk Affect Four Seas heart, woven Five Continents intelligence network. Anping Shenghua Metal Wire Mesh Machine Factory let you use the most favourable prices, the quickest way to buy most of their products.

While few managers welcome friends to discuss operational plant, let us go hand in hand for a better tomorrow!
