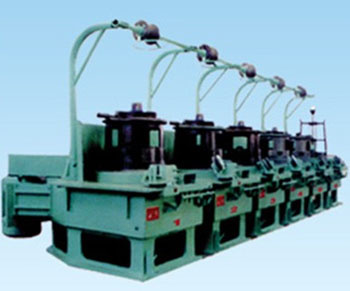

ZL 550 wire drawing machine can be used in drawing metal wires made of steel, aluminum, copper, etc. While operating, it can complete the drawing procedures with machine set according to the specifications at once, from feeding to finished product. The speed of the rear roll is increasing in sequence along with the thinning and lengthening of the wire rods. It is widely applied to the manufacturing of standard parts (e. G. Welding rod, wire nail, screw, etc), lead, wire rope, spring etc.
This machine has complete electrical system, perfect protection system and tap water seal cooling system, featured by easy combination, high productivity and convenient operation and management.
|
No. |
Name |
Specs & Parameter |
|
1 |
Diameter of Roll |
550mm |
|
2 |
Number of Roll |
1-6 |
|
3 |
Max. Diameter of Feeding |
Φ6.5mm |
|
4 |
Min. Diameter of Discharging |
Φ1.76mm |
|
5 |
Center Distance of Roll Installation |
1100mm |
|
6 |
Water Consumption of Cooling System |
4M³/h (base unit) |
|
7 |
Dimensions |
2205mm*1100mm*2168mm |
|
8 |
Single Motor |
Y200L1-6-B3 18.5KW 97-R.P.M |
|
9 |
Total Motor Power |
18.5kw*head (s) |
|
10 |
Weight |
3T |
In China, Handan Harvest Welding Machinery Imp & Exp Co., Ltd. was specialized in producing and export kinds of complete welding electrode production line. Now, our products have sold to more than 60 countries and area.
With rich experience, delicate equipment, advancing process, stable quality and strong technical force, Harvest has grown into a comprehensive mechanical Industry company integrating R&D, design, manufacture, sales and service. If interested, welcome to consult for a further.
