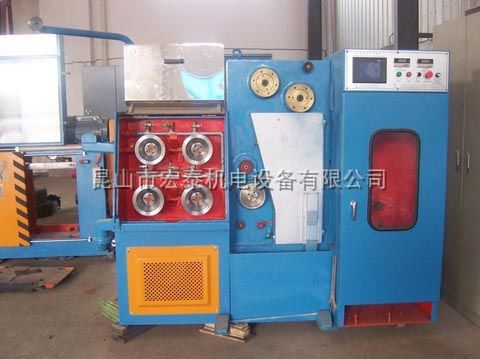

1)Machine Type: HT-22DT
2)Intlet Diameter: 0.8~1.2mm
3)Outlet Diameter: 0.10~0.32mm
4)Drawing Line Speed: 2000m/min
5)Drawing Dies No. /Max.: 22
6)Slip Ratio Of M/C: 0.15
7)Fix Speed Capstan Slip Ratio: 0.08
8)Capstan: Ceramic Plasma
9)Capstandia. (Max. ): 194mm
10)Fix Speed Capstan Dia.: 159mm
11)Frame: Ironed Cast
12)Main Motor: 11Kw Three Phase Inductor Motor
13)Annealing Power: 16KW
14)Spooler Motor: 3.7Kw Three Phase Inductor Motor
15)Annealing Method: Dc Three-Section Annealing
16)Spooler Control: Pid Synchronous Control Spooler
17)Inverter Control: Dual Inverter Control
18)Transmission Type: By Fiat Belts
19)Send-Out Method: Over Head
20)Traversing Unit: Flat Belt+Synchronous Motor
21)Tension Control: Weight Balance By Swing Arm
22)Lubrication Type: Spray Type
23)Suitable Diameter Of Spool: 300
24)Capacity For Wire Receiving: 50-60
25)Bobbin Loading & Unloading Type: Shaft Brake
26)Power Source: 380V
27)Brake: Magnetic Brake
28)Machine Dimension: 2100L X 1600W X 1700H (mm)
29)Machine Weight: 3000KG
This is Eric from Kunshan Hongtai Machinery & Electric Co., Ltd., it is my honor to write to you. By this mail, we are pleased to introduce Kunshan Hongtai Machinery & Electric Co., Ltd founded in 2006, which is located in the one of top 100 economical cities-Kunshan City with fast and efficient transportation network. It lies to the west of the Shanghai-Nanjing expressway, to the west of Shanghai, to the east of Shuzhou.
The company specializes in making wire & cable equipment. We own more than 2, 000 square meter international standard workshop and acquire rich experience in enterprise management. During our company's development in more than 2 years, we have built one powerful technology and R&D team, which is consisted of many experts, engineers and technical men. Import the latest German technology and many world famous companies, such as Japan NSK, Switzerland HABSIT, Shenzhen INOVANCE, are parts suppliers of our company.
With strict production, high quality, and considerate service, we have earned a very good worldwide reputation around the whole China and USA, EU, Russia, Iran, Sri Lanka, India, Singapore, Vietnam ETC. Our target is to work hard to make HONTA become the first class machinery brand in the world. Welcome to visit our company to learn more.
The company is able to serve both domestic and global markets. Our main projects are as below for your reference:
1. Various specifications of wire drawing machine
2. Double Twist Bunching Machine
3. Annealing & Tinning machine
4. Extrusion machine
5. Annealer
6. Other wire&cable equipment
Please just send us the inquiry with specific description and quantity. Upon your demand we can send you at any time our latest offer at the best price.
Looking forward to hearring from you and hope to be of service to you.
