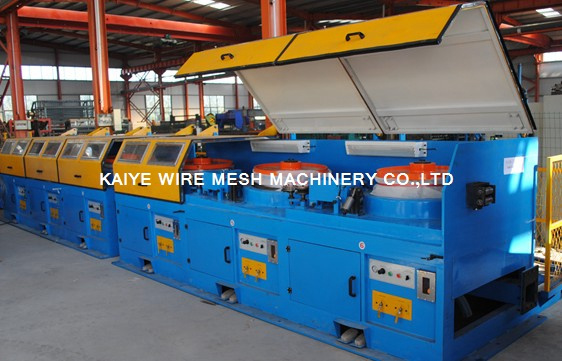

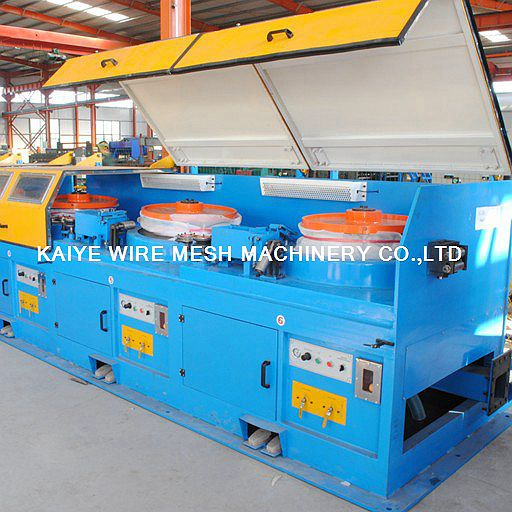

Wire Drawing Machine
| Price: |
US $ 15000-36000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
Production Line Technical Parameter:

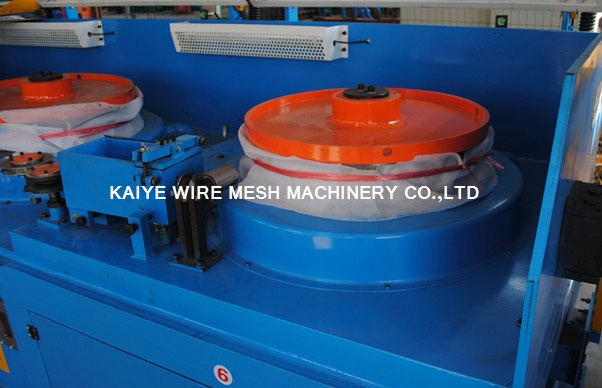

1. Capstan: Adopted the cast steel with tungsten carbide sprayed (or wearing resistance alloy), hardness HRC> 60, good wear resistance. With air cooling and narrow tube water cooling for choose. Reasonable taper designed to ensure that steel wire is not breaking and chaos
2. Die-box: Water cooling, with reasonable installation, adjustable on up and down, left and right way, with wire press devices to reduce the vibration of steel wire, so that sure the line is not often occur wire mess status. Optional rotary die boxes, pressure die-boxes or die-boxes with a debris-remove device
3. Tuning Adjustment mechanism: Tuning roller surface with wear resistant coating, with pneumatic anti-tension tuning, the tension can be adjusted
4. Control method: Speed adjust by AC frequency converter, whole digital control, touch screen man-machine interface

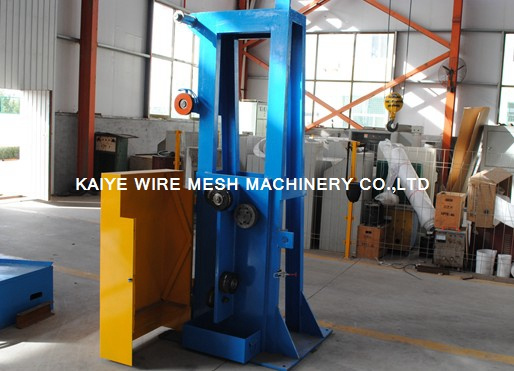

5. Take-up coil method: Optional Vertical Take-up coiler or H-type coiler
6. Security and environmental protection: This machine lines are adopted fully enclosed protection system, good security; And we can design a dust-remove pipeline system according to user needs to reduce dust pollution
7. Suitable drawing Material: Welding wire (Gas protection welding wire, submerged arc welding wire, flux cored wire, etc); Steel wire (High, medium and low carbon steel wire, stainless steel wire, pre-stressed steel wire, tire steel wire, hose wire, spring steel wire, steel cord, etc)
| KY-LZ200 | KY-LZ400 | KY-LZ6500 | KY-LZ1000 | KY-LZ2000 |
| Capstan type | 160/200/250/300 | 300/350/400 | 400/450/550 | 550/620/710 | 710/900/1200 |
| Drawing passes | <13 | <13 | <13 | <13 | <13 |
| Wire inlet strength(N/mm 2 ) | ≤ 1350 | ≤ 1350 | ≤ 1300 | ≤ 1300 | ≤ 1100 |
| Max wire diameter inlet(mm) | 2 | 4 | 6.5 | 10 | 20 |
| Min wire diameter exit (mm) | 0.15 | 0.3 | 0.5 | 1 | 2 |
| Max total wire reduction (%) | 94 | 94 | 94 | 94 | 94 |
| Max speed (m/min) | 1000 | 1200 | 1200 | 600 | 600 |
| Motor power(KW) | 1.5-5.5 | 5.5-15 | 7.5-45 | 30-55 | 45-160 |
| Type of take up | Spool/stripper capstan | Spool/stripper capstan | Spool/Spider | Spool/Spider | Spool |
| Control system | PLC, IPC, high speed I/O, network |
| Noise lever(dB) | Below 82
|
| Prod Model: |
KY-LZ400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Years Free Warranty |
| After Sales Service: |
Reply Within 24 Hours |
| Color: |
According to Customer's Request |
| Type: |
LZ Straight-Line Metal Drawing Machine |
| Usage: |
Rope Wire |
KaiYe Wire Mesh Machinery Co., Ltd. (Original China Anping Jia Sheng Welding equipment Factory) was founded in 1998, which is a professional manufacturer in wire mesh machine field of China with sophisticated technology. We have ISO9001: 2008, and SGS certification. Our customers are from all over the world, such as the United States, Brazil, Mexico, Malaysia, Australia, India, Russia, Iran, Kazakhstan etc.
In order to speed up the development and promote export, enhance overall competitiveness, our company set up a wholly owned subsidiary --ShiJiaZhuang Golden Harvest industry &trade Co., Ltd. By the efforts of all staff, our company has now developed into a research and development, design, manufacturing, sales for the integration of large-scale professional welding equipment manufacturing enterprises.
Our wire mesh machinery technology is advanced, Aesthetically pleasing, stable performance, low noise, easy operation, save energy and high efficiency.
In order to supply better service for our customers, We insist on the following principles.
1. Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee, and once the equipment damage during this period of time, we supply free of charge and will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete after-sales service
5. We can making machines according to customer's requirements.
