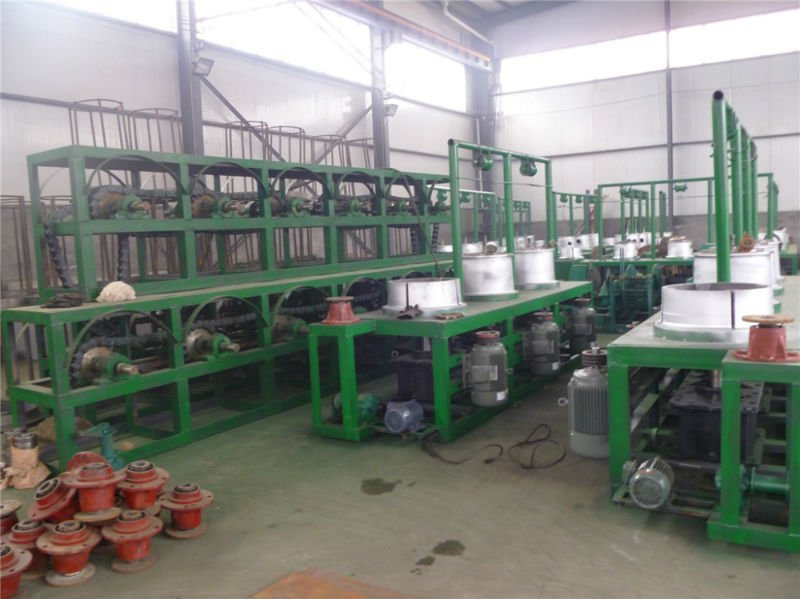

Pulley Type Wire Drawing Machine is also called Dry Type Wire Drawing Machine. It is a ideal equipment drawing wire stock of high, medium and carbon steel, as well as copper, alumium, and alloy. The machines are applied to drawing wire in the factories such as wire-steel factory, metal mesh factory and nail making factory etc.
Structure: The equipment consists of main reduction box. Die casing, wheel frame, sash brace and electeical control system. The spinning drawing blocks are driven by JZT series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body. The gear pair are lubricated with oil.
Structure:
The equipment consists of main reduction box. Die casing, wheel frame, sash brace and electeical control system. The spinning drawing blocks which was coated with tungsten steel to keep long life span are driven by JZT series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body. The gear pair are lubricated with oil.
Specifications:
Model LW-1-4/560 LW-1-6/560 LW-1-8/560
Dia. Of draw block (mm) 560-600 560-600 560-600
No. Of Drawing die 4 6 8
Max. Input diameter
(mm)
5.5-6.5 5.5-6.5 5.5-6.5
Output diameter
(mm) 3.4-4.0 2.6-3.0 2.0-2.2
Produce capacity
(kgs/10h) 5000 4000 3500
Motor power (kw) 45 65.5 80
Weight (kg) 1560 2000 2450
Overall dimention (mm) 4100x1100x1850 6000x1000x1850 7900x900x1750
KLEX METAL WIRE MESH Co., Limited was established in 1997 in Anping county where there is the largest source of wire mesh all over the world. It has developed into two factories"Klex Metal Wire Mesh Factory"and"Klex Metal Mesh Machine Manufacture" during 16 years since it was built.
Klex Metal Wire Mesh Factory professionally manufactures metal wire products and wire mesh. They are cold drawn steel iron wire, nail wire, stainless steel wire, black annealed wire, galvanized wire, PVC coated wire, razor wire, barbed wire, common nails, stainless steel wire mesh, brass wire mesh, filter wire mesh, crimped wire mesh, chain link fence netting, hexagonal wire mesh, gabion basket, welded wire mesh, expanded metal mesh, and perforated metal mesh.
Klex Metal Mesh Machine Manufacture mainly produces wire drawing machine, full equipment of annealing and galvanizing on metal wire, nail making machine, wire cutting straightening machine, welded mesh machine and cleaning ball making machine. We can design new type automatic machines skillfully with numerical control technology(PLC part) according to the samples and drawings of client's metal products.
We hope to cooperate with you by our high-quality products, reasonable price, and perfect service sincerely and heartly.
