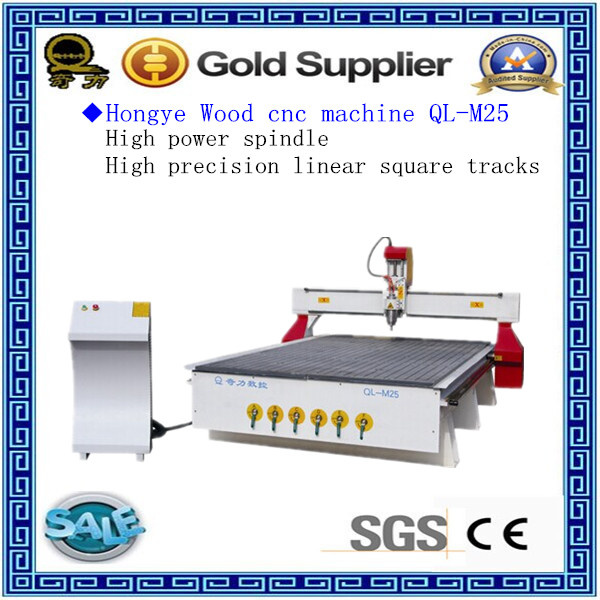

Wood CNC Wood Carving Machine QL-1325 CNC Wood Machine
Our Company is a professional manufacturer for CNC Routers, mainly used for advertisement, woodworking, stones, furnitures, etc.
Characristic:
Highest speed at more than 32m/min and highest efficiency.
Durable and high accuracy.
High power spindle made of best steel.
CNC Woodworking Machine is with two motors and unique two rack driving. Stable movement and no deformation or vibration after a long-time work at a high speed.
Special Axle X dust-proof system protects Axle X and ensures its high accuracy.
DSP system, no need of computer.
The main application field of industry:
1, Woodworking: Three-dimensional wave plate processing, cupboard doors, wooden doors, wooden doors process, doors, screens, process window processing, video game cabinets and panels, computer table and plate Auxiliary furniture products processing.
2, advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, plastic sheeting, PVC pipe a variety of materials advertising the production of decorative products.
3, metal industry: A sculpture of copper, aluminum, iron and other metal molds,
4, Stone Granite, marble, Qingshi, sandstone, and other stone carvings
5, other industries: A variety of large-scale relief sculpture, video carving, widely used in process industries.
Standard Configurations
Square Tube Lathe Bed, absorption table-board
X Y with racks, all with square guides
Axis Y with two motors
DSP System
4.5 KW Spindle and Transducer
Large Leadshine driver
5.5 KW High-power Vacuum Pump
Auto Lubrication System
Product overview:
QL -M25 is common type woodworking machine with high performance configuration. The request on several parts are even higher than of stone router, so that the engraving and cutting work on hard or thick materials could be done easily. Most working need on various materials can be met as a typical of multi-functional machines.
Products features:
1. Square tube lathe bed with more solid structure and strong stability because of low center of gravity.
2. DSP hand-held control system, with U disk available and no need of computer, provide high independence and great convenience for operation.
3. Vacuum table in six districts can fix materials of different sizes effectively and easily and vacuum pump of strong adsorption increase the performance up to 30m³ /h.
4. High precision linear square tracks, with ball sliders in two arrays and four rows, lakes large load bearing and stable running.
5. High power spindle with good rigidity not only demonstrates superior performance in woodworking application, is also propitious to engrave and cut on copper, aluminum, iron and other metals.
Application:
Furniture decoration industry: A large flat plate engraving, wood, panel furniture carving, wood art murals, wood cabinet doors carving.
Wood products processing: Sewing machine table, electrical counter table, sports equipment, artwork, photo frame, jewelry box.
Our compony
Our samples
Please contact me, I will quickly reply you, detailed introduction of our products
| Technical Data |
| Working Area | 1300mm*2500mm*200mm |
| Table Size | 1480mm*3000mm |
| Max. Speed | > 20m/min |
| Clamping | By Suction |
| Processor | DSP/ Speed 100MHZ |
| Interface | USB |
| Command Code | G Code*. u00*. mmg*. plt |
| Working Software | DSP |
| Power (not including spindle) | 1840w |
| Working Voltage | AC380V/50HZ |
| Spindle Power | 4.5kw |
| Spindle Running Speed | 0-24000rpm |
| Motor | Stepper |
Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.
The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
