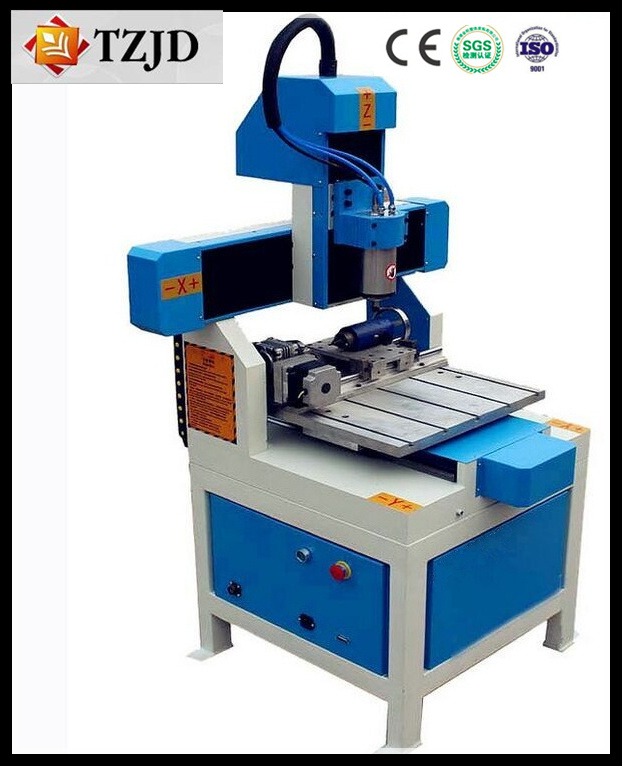

Wood Craft CNC Machine 4 Axis Milling Machine

Wood Craft CNC Machine 4 Axis Milling Machine
Price: US $ 2600-3100/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Wood Craft CNC Machine 4 axis Milling machine

1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed drive motor, also servo motors for optional
5. Memory function ensures the processing point when the blade is broken or having to postpone the process.
6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.
7. This type machine can support these functions: Drilling/milling, engraving/carving, cutting.
8. It widely used for small materials working, without noise & high-power. Many gear speed regulation and control function & Curve and linear speed independent control.
9. Water tank system on the body & water-cooled system automatically.
10. Double spindles can be worked at the same time, largely improve your working efficiency.

Applicable materials:
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board, PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.

DescriptionParameter
TZJD-4040
Working Area (X*Y*Zmm)400mm*400mm*150mm
Max Engraving Speed 6000mm/min
FrameCast Steel
Spindle power(KW)1.5 KW/2.2KW/3KW
Max. Power Consumption(Without spindle)1.2KW
Spindle Speed     6000-24000rpm
Resolution0.005mm
Repeatability0.01mm
VoltageAC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motorStepper(option:Servo motor)
Working Dictate        G Code*.u00*.mmg*.plt
Operating systemNc-studio/DSP optional
Software environmentWindows98/2000/xp/7/8
InterfaceUSB
Flash memory128M(U Disk)
Software CompatabilityType3,,Ucancam,Artcam Software)
Diamerer of cutter3.175, 6mm, 12.7mm, 2mm,1mm, etc.
Running EnvironemtTemperature: 0-45
Relative humidity: 30%-75%
Machine necessaryDust collector system, spindle cover,
Japan Panasonic Servo motor, Auto-oiling system,
Tool-sensor, water tank system, water-cooled system, rotary attachment.

Prod Model: TZJD-4040
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type: CNC Engraving Machine
Machine Condition: New
Machine Color: White, Blue, Also as Demands
Working Area: 400mm*400mm*150mm
Working Table: T-Slot Table
Guide: Hiwin Square Linear
Motor Driver: Stepper, Servo
Spindle: 0.8kw, 1.5kw, 2.2kw Water-Cooling
Controller: Ncstudio
Software: Type3 and Artcam
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.

The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

Tengzhou Jianda CNC Machine Co., Ltd  Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.



Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.



Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
