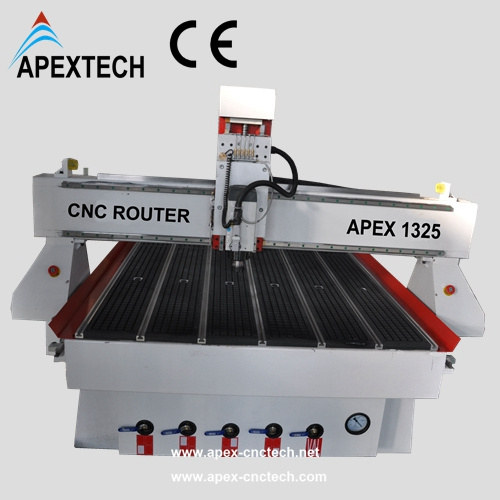

Wood Engraving Machine Cheap 1325 Wood Design Carving Machine

Wood Engraving Machine Cheap 1325 Wood Design Carving Machine
Price: US $ 5500-6000/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Description
Woodworking CNC Router Application: This cnc router is widely used for cutting, milling, drilling, engraving, very suitable for woodworking industries like furniture, doors, cabinets, speakers, decoration, plastics and other industries.
1. Parameter
All of these models can be customized according to customer requirements.
With Certification: CE, ISO9001

NO.

Description

Parameter

1

X,Y,Z working area

1300*2500*200mm

2

Drive and motor

Yako stepper motor/driver; yaskawa servo motor/driver

3

Spindle

3kw/4.5kw/6kw watercooling spindle;
3kw/4.5kw/6kw HSD aircooling spindle

4

Inverter

Delta frequency inverter

5

Control system

NCstudio/ Mach3/DSP controller

6

X, Y, Z Travelling Positioning Accuracy

±0.05/300mm

7

X, Y, Z Travelling Repositioning Accuracy

±0.05mm

8

Frame

Big thickened Steel Square Tubes, thickness up to 8mm

9

X, Y structure

Rack and pinion, Hiwin square rails on X, Y axis

10

Z structure

Taiwan TBI Ballscrew, Hiwin square rails on Z axis

11

Max Rapid Travel Rate

30,000mm/min

12

Max working speed

18,000mm/min

13

Working voltage

AC220V/380V, single/three phase

14

Command languages

G code

15

Running Environment  Temperature

0 degree - 45 degree

16

Software

Type3 English version; Artcam English version

17

Net weight

1550KGS

18

Gross weight

1750KGS

19

Relative Humidity

30% - 75%

20

Guarantee

One year from the date of commission

21





Optional Accessories

Rotary system
Mist-cooling system
Dust collector/ Dust hoods for three axis
Vacuum pump
850w Yaskawa/800W Panasonic Servo motors


2 Application
1. Wooden plate processing: wood carving, cutting, hollowing-out and hole-drilling on the three-dimensional
wave board processing, wooden doors, window processing, cabinets doors and panels, computer table and plate furniture auxiliary processing.

2. Advertising industry processing: Acrylic cutting, Advertising signs, logo production, forming system
module, a variety of the production of advertising decorative products.

3. Mold material industry: the wooden, copper, aluminumand other metal molds, as well as artificial marble,
sand, plastic sheeting, PVC pipe, and other non-metallic mold.

4. Other: Aeronautic wood mold, propeller, automotive froth mold. Three dimensional curved surface of
instruments like violin, erhu, dance and etc,  Also suitable for engraving and cutting on iron plate and the other
metal material.

3. Machine Package
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.


4.Guarantee & After Sales Service
1) The whole machine guarantee is 12 months except for special parts.
2) Main parts(excluding the consumables and the person damaged) shall be changed free of charge if there is any problem during the warranty period, we will provide the consumable parts at an agency price when you need replacement.
3) 24 hours technical support by phone, email or msn, skype etc.
4) Software is on update for free.
5) Provide for English manual and CD video of machine using and maintaining.

5. FAQ:
1. Guarantee & After-sale Service?
1.1 One year warranty under normal use and we supply lifetime maintenance;
1.2 Technical support by Phone, Email, Skype, WhatsApp, MSN around the clock;
1.3 Free Training to make sure you master the operation of the CNC Router;
1.4 Friendly English Operation Manual, popular and easy to understand.
2. OEM Service Available?
2.1 Usually, we will manufacture the machine as our regular design;
2.2 X,Y,Z Working Area could be customer-oriented designing;
2.3 Special configuration could be customer-oriented designing.
3. Delivery Time( Production Procedure)?
3.1 For 3 Axis Machine with standard specification, usually 25 working days;
3.2 For 4 Axis Machine with standard specification, usually 35 working days;
3.3 For 5 Axis Machine, OEM or Non-standard models, usually 95 working days.

6. Certification of Machine
With CE,SGS certification.

7. APEX CNC Router Features/Advantages
1). Big size thicken lathe bed structure, adopting steel pipe tubes for machine frame, and steel made gantry ,more stable, can work over 7 years without distortion.
2). Adopt high power driver and motor, double motor on y axis. which lead the machine run at 20m/min for processing speed, traveling speed can up to 40m/min.
3). Lubrication system on 3 axis: Lubrication pipe connecting to all linear guide which can lubricate them in time by manual oil lubrication pump for lasting machine lifetime.
4). Hard limit stop and electronic limit stop on 3 axis protect the machine beyond the working area.
5). Our machine table is all specific T-slot combine with bakelite  vacuum table with enough vacuum suction holes, we can increase the vacuum hole number according to your need.
6). Adopting strong wire chain, with high soft shielding twisted-pair cable, which can afford 220ºC at most,with much lifetime than the common 120ºC.
7). Manual oil lubrication pump, it lubricates every point of the machine to prevent the machine from rusting.
8). Large size Taiwan TBI ball screws,no distortion,good stability.
9). Taiwan HIWIN rail linear bearing ,double slippers,bearing heavy,working steadily.
10). Emergency stop on both sides of the machine and on control cabinet, it can protect the machine from any misoperation damage to the machine.
11). Large-size synchronousbelt and synchronizing wheel in x,y,z axis,top performance.
12). 22mm thickness gantry structure guarantee the good stability and high processing.
13). French Schneider AC contactor and Hugeton EMI filter.
14). Helical Rack and pinion drive, Hiwin square rail linear bearing 25mm. More stability and higher precision.

8. Contact us
China CNC Router-CNC Wood Router-Buy CNC Router-Distributor Wanted
www.apex-cnctech.net / www.apex-cnctech.com
Tel/Fax: +86-0531-69925891
Mobile: +86-15963103061

Prod Model: APEX A1325
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Apex A1325
Size: 1300*2500*200mm
Working Speed: 15m/MIM
Driving Motor: Stepper Motor
Inverter: Delta/Fuling/Best
Spindle: Watercooling/Aircooling
Software: Art Cam, Visual Mill, Type3
X,Y Axis Transmission: Helical Rack and Pinion
Z Axistransmission: Ball Screw
Export Markets: Global
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Manual
Controlling Mode: CNC
Certification: FDA
China CNC Router-CNC Wood Router-Buy CNC Router

APEX CNC Technology Co., Ltd is a professional China CNC manufacturer Specializing in exporting CNC Router, China CNC Router-CNC Wood Router-Wood CNC Router, CNC Engraver, CNC Woodworking Machine, Mini CNC Router, ATC CNC Router, CNC Router Machine For Metal, CNC Router Machine For Wood, CNC Router Engraving, CNC Router For Sale, Desktop CNC Router, Advertising CNC Router, Machining, CNC Router 4axis, CNC Router 5axis, Column CNC Machine / Cylinder CNC Router, Custom Made CNC Router, CNC Plasma cutting machine, China CNC Machining, CNC Machining Parts, Fabric Laser machine, Laser cutting machine, Vinyl cuttting plotter.

APEX CNC products are widely used in many industries, such as the woodworking 2D/3D industry, advertising industry, stone engraving and sign marking, furniture processing, decoration electronic fixtures, wood industry and other gifts industry. They can engrave and cut wood, acrylic, stone, leather, glass, plastic sheet, metal sheet and other materials.

APEX CNC Technology Co., Ltd has set up in major cities across

Domestic market more than 20 agents and we provide customers

Online Negotiating, order Confirmation, Delivery Date, Installation and

Adjusting Guidance, Daily Maintenance and After sale Service. Our

Products is not only throughout the country, but also exported to

Europe, the United States, the Middle East, Southeast Asia, Africa

And other regions.

APEX CNC has received the high praise from customers due to our comprehensive cost-effective and sound

Service system. Pursuing the faith of "Innovation and Development", Jinan APEX CNC Technology Co., Ltd

Keeps the leading position among the CNC woodworking equipment industry due to the high reliability and top

Quality of our products.

Welcome to visit to APEX CNC, and hope to copperate with you!

www.apex-cnctech.net / www.apex-cnctech.com

Tel/Fax: +86-0531-69925891

Mobile: +86-15963103061
