Wood Pellet Mill Machine
| Price: |
US $ 5000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

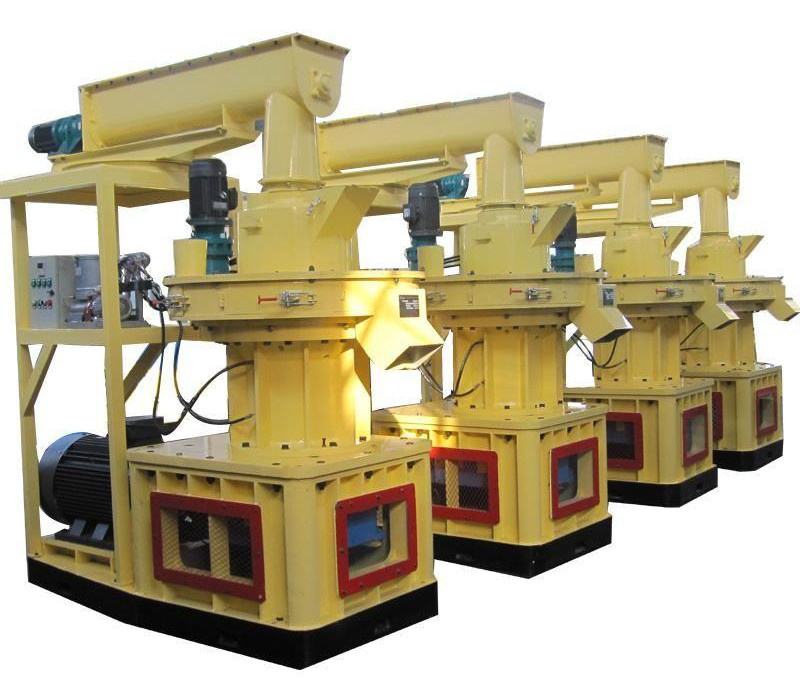

Wood Pellet Mill Machine
1. biomass wood pellet machine Characteristics:
1) Vertical feed, directly in place
2) Static model, Pinch roller rotation, Material centrifugal, uniformly distributed around
3) 2 layers grinding tool, Up and down dual-use, Reduce cost, Increase benefit.
4) Circular mould, Vertical structure, Conducive to granulating chamber radiator cooling
5) Independent frequency conversion discharge device, to ensure the particles forming rate.
6) Independent lubrication, High pressure filter, Clean and unobstructed.
7) High density granulating molding equipment.
2. biomass wood pellet machine Using scope and purpose:
1). Scope: sawdust, straw, cotton stalk, rice husk, peanut shell, bamboo powder, palm and other plant waste; cement, ash, carbon powder, paper, and other chemical raw materials which are difficult to be adhesive and molding.
2). Purpose: reuse of waste residues for biofuel plant, biomass power plant, wood processing plant, chemical plant, winery.
Biomass Pellet Mill Techncial Parameters:| Type | Capacity | Power | Production Size | Weight | Size |
| (T/H) | (KW) | (MM) | (T) | (MM) |
| ZL450 | 0.5-0.7 | 45 | Φ4-12 | 5.5 | 2600x1200x2300 |
| ZL560 | 1-1.5 | 90 | Φ4-12 | 6 | 2600x1300x2310 |
| ZL850 | 2-3 | 220 | Φ4-12 | 13.5 | 3380x1480x3180 |
| ZL1050 | 5-6 | 355 | Φ4-30 | 22 | 4200x1850x3680 |
| ZL1250 | 8-9 | 415 | Φ4-30 | 25 | 4600x1950x3880 |
| Prod Model: |
zL450-ZL1250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
| Type: |
Ring Die Pellet Mill |
Henan LanJi Machinery Manufacturing Co., Ltd. is a jiont-stock mining machinery manufacturing enterprises integrated in scientific research, production and marketing. It is located at the Hig-Tech development Zone Zhengzhou, China with an area of 80 thousand square meters. Equipments are more than 200 pieces, including large and medium sized metal processing, riveting and installing equipments. Engineers are more than 50 persons.
The leading products of our company include: Beneficiation equipment, crushing equipment, sand making equipment, cement equipment, Aerated concrete block production line. Widely used in the industries of metallurgy, mining, railway, high-way, building materials, refactory, ceramic industry, etc. Complete set of ore beneficiation equipment include ball mill, crusher, magnetic separator, flotation machine, spiral classifier, rotary dryer, widely used to separate the non-ferrous metals such as iron ore, copper ore, gold ore, lead&zinc, manganese ore, molybdenum ore, etc. And the Non-metallic Minerals like fluorite, quartz, etc. Jaw crusher, impact crusher, sand making machine, vibrating screen, sand washing machine, belt conveyor are widely used for the airport, railway, high-way, road, buliding, etc. Aerated concrete block has been one important part to the new buliding materials. We can provide program design, process flow design, standard and non-standard design for clients.
Our company has passed ISO9001-2008 quality certificate, the produce sell well to domestic and abroad, Such as South Asia, Russia, Central Asia, Africa, Middle-east, etc.
Our company's tenetis "Advanced technology, quality first, sincere service, reputation first". We can ensure our clients without worry after buying by one set of complete after-sales service and quality-tracking system.
We sincerely hope to cooperate with the clients from all over the world to achieving mutual benefits and promotion, ans touching our theory through cooperation!
