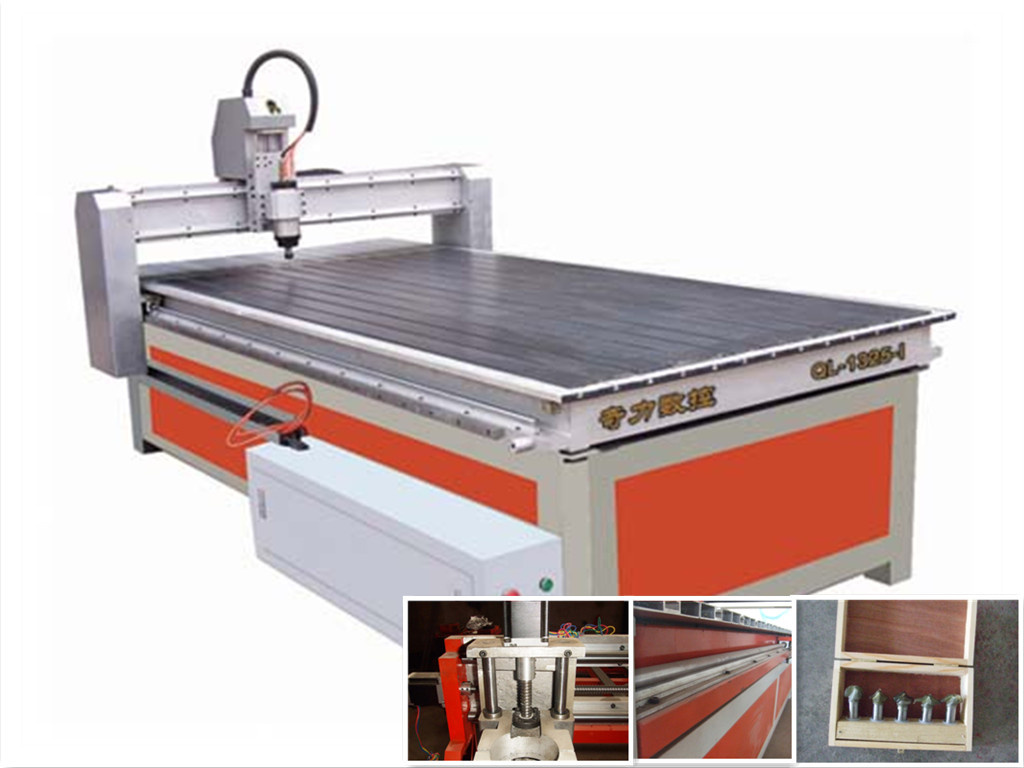

hot sale high quality 3.0kw water cooling spindle 1325 cnc wood router
This CNC Router is used for wood working factory.
1.Whole lathe bed is in steel structure of high stabulity
2.Racks and gears transmission with high-speed motor keeps smooth movement in fast andaccuracy
3.Breakpoint resorting function is enable, if the machine can't work studdenly when it is working.
4.Auto lubrication system ,ensuring machine's precision and service time.
Features
3.0KW HSD Spindle (Option: 6KW HSD Spindle, 3.5KW Chinese Spindle)
Vacuum Table (Option: T-Slot Vacuum Table)
nese THK Linear Rail
Stepper System (Option: Servo System)
Option: Pump (Becker or Chinese)
Specifiction and technical paremeters:
Description | Standard Configurations | Options |
Machine structure | Steel structure Lathe Bed | |
Working table | T-slot | Vacuum table |
Spindle | 3kw water-cooling | Customization power ,air-cooling |
Transmission | Rack | Ball screw |
Guides type | round guides | Square guides |
Drive motor | Stepper 450 | Servo |
Drive | Leadshine 860 | |
Oil injection system | Auto | Original |
Head quantity | 2 heads | Customization |
Control system | NCSTUDIO system | DSP |
Technical Parameters |
Model | QL-1325 |
X Y Working Area | 1300mm*2500mm |
Z Working Area | >120mm |
Table Size | 1440mm*3000mm |
Max. Speed | 8m/min |
Max. Working Speed | 6m/min |
Working Delicacy | 0.01mm |
Repositioning Accuracy | 0.05mm |
Feeding Height | 120mm |
Command Code | G Code*.u00*.mmg*.plt |
Working Software | Windows98/2000/xp |
Power (not including spindle) | 1500w |
Working Voltage | AC380V/50HZ |
Spindle Power | 3kw |
Spindle Running Speed | 0-24000rpm |
Motor | Stepper |
Company Information
Our company:
Jinan Hongye cnc machine is a high-technology enterprise which is specialized in developing
andmanufacturing advanced high grade CNC Router.Having around 12 years' experience, our company ranks in the front of the fields and enjoys good honor from worldwide.
Meanwhile, our products has been granted CE and SGS certificate. Now we have three main series machines and around 50 models: CNC engraving machine, 3D woodworking machine and laser engraving machine.
And we wish you knew that perfect quality and good after-sales service is our specialty.
Our Services
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
Warranty and After service
1. Our warranty is 12 months counting from the date when the Machine arrives at the port of destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can't be solved by customers, our engineer can go to door to help.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
