wpc board/profile extrusion machine/wood plastic door board machinery
Characteristics of the equipment
This machine uses the special designed screw and barrel, die and extrusion process to produce plastic and wood products.The series of products are: One step thick plastic and wood plate extrusion machine, one step plastic and wood profile extrusion machine, one step plastic and wood decoration plate extrusion machine, plastic and wood pelletizing machine and different kinds of plastic and wood dies.
Configuration
Components |
Amount |
1,Conical double screw extruder SJSZ-80/156 |
1 set |
2,Extruder Mould |
1 set |
3,Vacuum calibrating and forming table |
1 set |
4, Cooling Table |
1 set |
5,Haul-off unit |
1 set |
6, Cutting Unit |
1 set |
7, Stacker |
1 set |
8, Control system |
1 set |
Main Technique Parameter
1,Conical double screw extruder SJSZ-80/156
a) Output: 300-400kg/h
b) Transmission system:
High torque output vertical reducer gear box
Structure: vertical
Provided with outside-circulation cooling system
Imported thrust bearing and high-torque output
Material of Gear: 20CrMnTi,with gear grinding technical treatment and cementite
2,Extruder Mould
a) Structure: special design for PVC WPC board
b) Width of die: 1400mm
c)Thickness: 12-20mm
d) Material: 5CrNiMo, high quality alloy
3,Vacuum calibrating and forming table
Max. calibrating width: 1450mm
Calibrating table length:2000mm
Vacuum pump power:5.5kw*2 units
Max. exhausting volume:80m3/min
Water pump power:4kw
4, Cooling Table
a) Total length of roller bracket 5000mm
b) Cooling Roller
Diameter: Ø63mm
Length: 1320mm

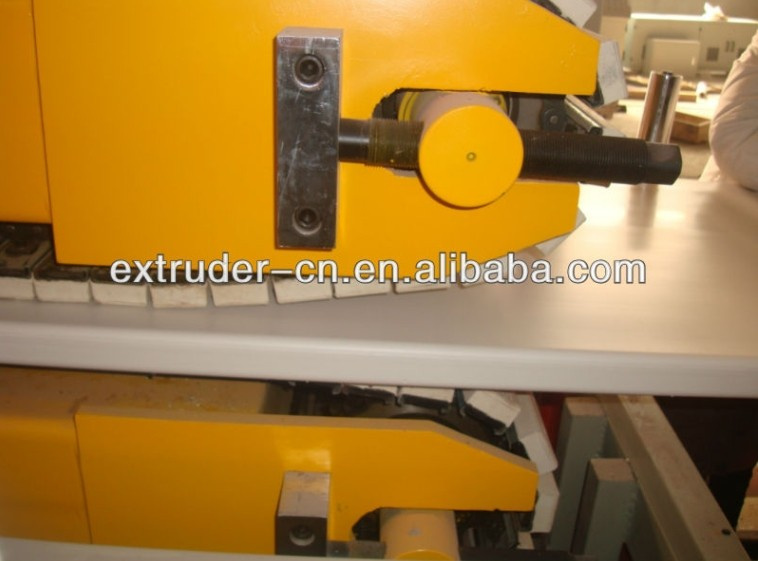

5,Haul-off unit
Max. pulling width:1450mm
Max pulling thickness:20mm
Pair roller qty: 7 pairs
Driven motor power:5.5kw
6, Cutting Machine
Rack type synchronize pressing unit
Special design flat cutting motor: 2.2kW
With non-pole cylinder left and right moving system
Main technical data of WPC extrusion line: |
Type of extruder |
Conical twin-screw extruder |
Model |
SJZ65/132 |
SJZ80/156 |
SJZ92/188 |
Driving motor power |
37KW |
55KW |
110KW |
Output |
120Kg/h |
210Kg/h |
330Kg/h |
Central height |
1000mm |
1000mm |
1050mm |
SJZ92/188 PVC/PE WPC (Foam) Profile Extrusion Line
High output
Easy operation
Low energy consumption
PVC/PE WPC (Foam) Profile Extrusion Line mainly used for extrusion production of PVC/PE /WPC window&door profile andother decoration profiles.
PVC/PE WPC (Foam) Profile Extrusion Line can be combined with different types of extruders and accessory machineries according to the size of products. Adopted ceramic heaters, high-quality thermocontrollers, air-cooling blowers, inverter speed adjusting or DC speed adjusting, and screw core cooling. For calibrating table adopted special cooling system, which can guarantee the high cooling effective. For haul-off machine adopted special lifting technology, which works stably with big haul-off force. Cutting machine works together with extrusion line synchronously, installed with length-setting unit, which can guarantee trim and high-speed cutting, uniform length of cutting.
Name of equipments |
Spec./Model |
YF210 |
YF240 |
YF500 |
YF800 |
Extruder |
Extruder model |
LSZ51/105 |
LSZ65/132 |
LSZ80/156 |
LSZ92/188 |
Dimension(m) |
3.3*1.45*2.1 |
3.45*1.45*2.25 |
5*1.54*2.28 |
6.2*1.55*2.7 |
Capacity(kg/h) |
50-150 |
80-250 |
100-350 |
200-600 |
Installed paower(KW) |
25 |
64 |
115 |
168 |
Sizing table |
Dimension(m) |
4.2*1*1.1 |
5.8*1.*1.1 |
6.5*1.5*1.1 |
6.5*1.5*1.1 |
Installed paower(KW) |
18 |
24 |
30 |
43 |
Hauling and cutting machine |
Dimension(m) |
5.8*1.1*1.7 |
5.8*1.1*1.7 |
3.1*1.3*1.7
2.2*1.45*1.8 |
3.55*1.85*1.6
2.5*1.8*1.6 |
Hauling speed (m/min) |
0-4 |
0-4 |
0-3 |
0-2 |
Hauling force (N) |
30000 |
30000 |
35000 |
50000 |
Max cutting area and width (mm) |
240*65 |
240*65 |
500*80 |
800*80 |
Installed power (KW) |
6 |
6 |
8 |
8 |
Stacker |
Stacking length(mm) |
6 |
6 |
6 |
6 |
