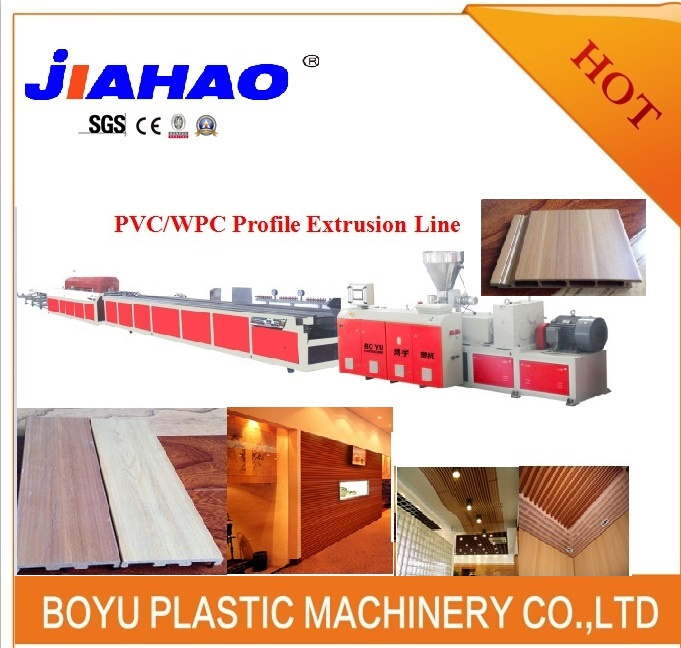

PVC Wood Plastic Profile Extrusion line
PVC WPC is mainly used for producing PVC+wood
flour,shirting board,door border line,door pocket line ,louvre blade,picture frame,
edge sheet of furniture,doorcase,door pocket,upright post,stair railing,etc. Wood Plastic WPC Deck machinery adopting
the special Plastic Wood-plastic technology and formula from our company,can design different product
according to different board section and purpose.With different mould and double
screw extruder and Single Screw Extruders special for Wood Plastic WPC Deck machinery,
can produce different wood-plastic board by vacuum forming machine,tractor,
cutting machine,and upengder,etc.
Special technology has been adopted for tractor,so Wood Plastic WPC Deck machinery has many advantages,such as
run steadily,high reliability,stronger traction, Wood Plastic WPC Deck machinery vacuum forming device adopts special
oversize vortex cooling system in order to satisfy the actual demand of producing
wide board with convenience for forming,cutting device keeps pace with the board
pulling speed with rational design,stable operation,automatic scale cutting,and
equipped with dust reclaimer.
Specification:
1. The material is PVC+ wood powder
2. With the special woo-plastic technology and formula of our company.
3. Different mould can produce different proudcts
4.Stable working and reliable.
Main technology parameter of extruder
| Model | SJSZ45/100 | SJSZ51/105 | SJSZ55/120 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
Power of drive motor
(kw) | 15 | 18.5 | 22 | 37 | 55 | 110 |
Screw diameter
(mm) | Ø45/Ø100 | Ø51/Ø105 | Ø55/120 | Ø65/Ø132 | Ø80/Ø156 | Ø92/188 |
| No.of screw | 2 | 2 | 2 | 2 | 2 | 2 |
| Rotational speed | 36 | 36 | 36 | 36 | 36 | 36 |
| Nm torsional moment of screw | 3148 | 6000 | 7000 | 10000 | 14000 | 32000 |
Capacity PVC powder
(kg/h) | 70 | 100 | 150 | 250 | 400 | 750 |
| Central height(mm) | 1000 | 1000 | 1000 | 100 | 1000 | 1100 |
| Equipment model | MSYF150 | MSYF180 | MSYF240 | MSYF300 |
| Maximum section width(mm) | 150 | 180 | 240 | 300 |
| Total power of auxiliaries(kw) | 15 | 18.7 | 27.5 | 33.1 |
| Cooling water capacity(m3/h) | 5 | 5 | 5 | 7 |
| Compressed air pressure (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
Eco-wood Greener- wood Lesco WPC Profile Extrusion Line ( CE )
lesco wpc profile extrusion line, pvc wpc ecological profile making machine, greener wood wpc pvc natural profile production line
Product Description
1. Application of wood plastic composite pvc wpc lesco greener profiles:
our wpc wood plastic composite profile extrusion machine, compounding domestic and abroad technology, with characters of high automatic level, steady performance, large output and high efficiency. it is most professional for producing various kinds of wpc profiles both outdoor and indoor by changing different moulds----that means in same extrusion machine line, you can produce different wpc profiles by just changing different moulds!
2. Production process for pvc wpc lesco greener wood profiles:
pvc powder+wood powder+additives, color pigment→ mixing → extrusion line ( twin-screw extruder → ecological wpc profile extrusion die → profile moulds→ vacuum calibration platform →haul-off → cutter →stacker → finished product) → surface finish processing ( sanding, embossing,etc)
3. Equipment list for Eco-wood Greener-wood Lesco WPC Profile Extrusion Line
3.1 Twin screw extruder 65/132 or 50/104
3.2 Extrusion die
3.3 Profile moulds
3.4 Vacuum Calibrating Table
3.5 haul-off machine
3.6 Cutting machine
3.7 Tilting table
3.8 Electrical control cabinet
4.Composition of wpc profiles production line
(1) conical twin screw extruder
(2) die and mould for wpc profiles
(3) vacuum sizing cooling table
(4) haul off and cutter
(5) reversal stacker
wpc profile samples in our wpc production center in qingdao city
Company Information
WUXI BOYU Plastic Machinery Co., LTD is a professional manufacturer who is devoted to macromolecule science and plastic machinery and equipment, is the director member of WPC (Plastic &Wood Production Council of Chinese Plastic Community), now we are Plastic Engineering Technology Research Institute of wuxi Science and Technology University Test and Industrialization center.
We cooperated with many domestic universities to develop special plastic machines to meet domestic and foreign customer's requirement and have a strong association with many macromolecule and chemical majors of many universities. At the same time we bring in and absorb advanced processing engineering of foreign plastic machines to realize chain service of technique and machines.
Our Services
After-sale service, technology and installation:
(1)The supplier provide service manual and maintenance instruction of main electric appliances, limb, usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing.
(2)The supplier is responsible for installation, debugging and training. We will realize guarantee of repair; replacement and refund of substandard products within one year after the machine leaves factory.And half a year for electric parts. Fittings of the machine will be supplied at preferential price after one year.
Some of our main leading products:
pvc edge banding extrusion line with three color printing machine
PP,PE,PVC plastic single wall corrugated flexible pipe extrusion line
SJ-92/188 PVC WPC Door Panel Production linr of turn key project
PP,PE,PVC WPC wood plastic profile extrusion line
PVC ceiling panel, trunking profiles, door windowextrusion line
pvc, wood plastic wpc production line
pvc wpccrust foam board extrusion machine lineW=1220mm thickness 5-25mm CE certificated
FAQ
WHY CHOOSE BOYU?
(1)We are engaged in macromolecule science, is the director member of WPC (plastic & wood production council of Chinese plastic community)
(2)We cooperated with many domestic universities to develop special plastic machines to meet domestic and foreign customer's requirement.
(3)We become the test and industrialization centre of plastic engineering technology research institute of wuxi Science and Technology University.
(4) we bring in and absorb advanced processing engineering of foreign plastic machines to realize chain service of technics and machines.
(5) We have experiences in this field since 1980s
(6) We have our production bases for WPC and plastic product in China with large scales, which shows our machine's production power
(7) We have strong technical teams and cooperate with China scientific institution to develop, improve and test our machine, to ensure what customers get are the most reliable machines from China.
(8) We select the most reliable mechanical and electrical parts for our machine with all famous reliable brands, with European CE certificated.
(9) We put our heart into every business with aim of long term cooperation.
(10) We have perfect service system-- Our president is devoting himself to pre-sale, on-sale and after-sale service. WEIER JUST DO WIN-WIN BUSINESS!!!
We would like to try our best to help every customer who will be devoting himself to this project succeed and looking forward to long term pleasant cooperation!
We have running production centers for wpc profile panels, welcome to contact with us and also visit our running Eco-wood Greener-wood Lesco WPC Profile Extrusion Lines!
