Home Mould Products Xhnotion - Pneumatic One Touch Tube Fittings with 100% Tested

Xhnotion - Pneumatic One Touch Tube Fittings with 100% Tested

Xhnotion - Pneumatic One Touch Tube Fittings with 100% Tested
Price: US $ 0.84/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 200/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
FEATURES

1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
9. Conform ISO7.1, BS21, DIN2999 standard.

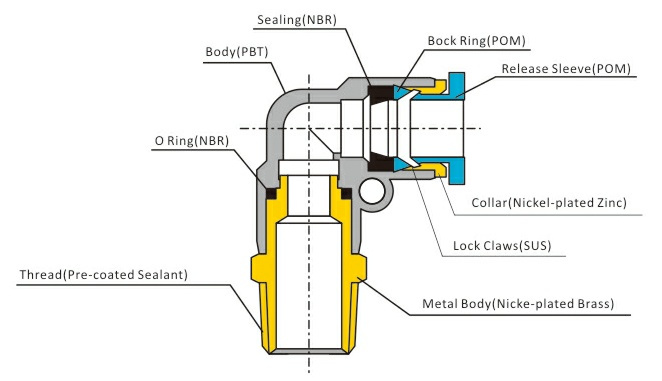

MATERIAL CONSTRUCTION

Plastic BodyPBT
Metal BodyNickel Plated Brass or Brass
Release ButtonPOM
Grip RingStainless Steel
Thread SealantTeflon
O-RingNBR


SPECIFICATIONS
Operating Pressure0 - 150 PSI       0 - 990 kpa
Operating Temperature0 - 60 °C         32 to 140°F
ApplicationAir, water
Recommended Tubing MaterialPolyurethane, Nylon, Polyethylene, and Polypropylene
TypesStraight, Elbow, Tee, X, Y, etc.
CapacityOver 1000000pcs/month
Marketing AreaAll over the world



FITTINGS ADVANTAGE

1)  Raw Material conforms to ROHS standards.
2) Imported Teflon adhesive for pre-coated sealant.

 3) Multiple color and shape for button and body
Blue and oval button with black body as regular,
Black or gray round button is available, too.

4)  5% tested by water at 10 bar100% tested by air and appearance test.

5) 1 year quality assurance after shipment.

6) Custom fitting as your drawing or we make drawing as your sample.

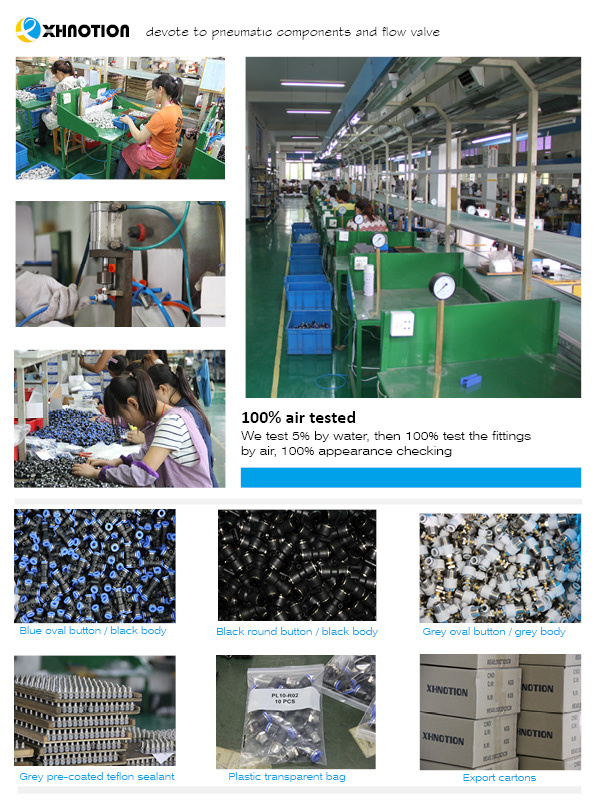

WORKSHOP SHOW


WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

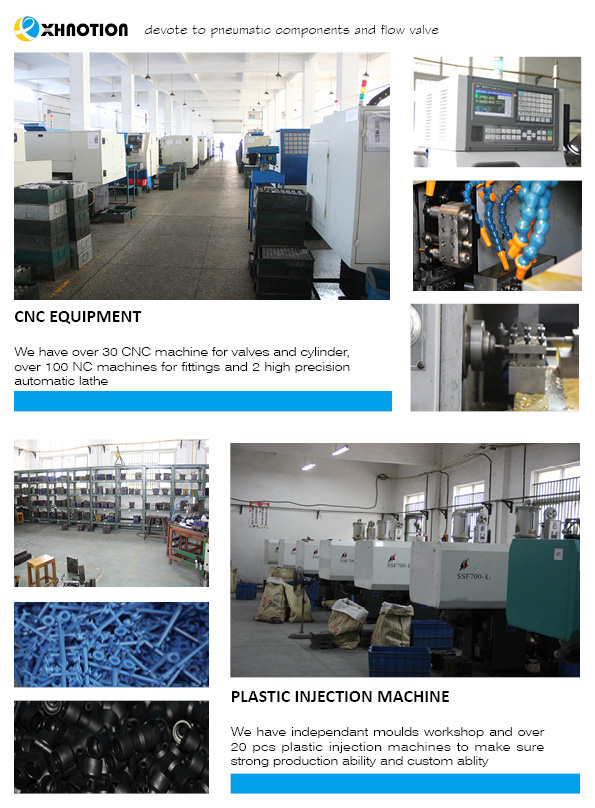

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.


FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy

For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


For other size, please refer to below table.
Model [ΦD-T]
Tube(Metric)-Thread(R)Tube(Inch)-Thread(NPT)
PKB 4-M5PKB 6-03PKB 5/32-U10
PKB 4-M6PKB 8-01PKB 5/32-N01
PKB 4-01PKB 8-02PKB 5/32-N02
PKB 4-02PKB 8-03PKB 1/4-N01
PKB 4-03PKB 8-04PKB 1/4-N02
PKB 6-M5 PKB 1/4-N03
PKB 6-M6 PKB 5/16-N01
PKB 6-01 PKB 5/16-N02
PKB 6-02 PKB 5/16-N03



Prod Model: PKB8-02
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 3mm-16mm
Thread: M5,M6, 1/8, 1/4, 3/8, 1/2
Standard: GB
Material: Plastic
Connection: Female
XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below items

Pneumatic fittings, plastic, brass, stainless steel push in fittings

Pneumatic quick coupling, air tool kits, air blow gun

Pneumatic muffler, silencer, filter

Air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc

Solenoid control valve for water, air, diesel, oil

Air cylinder, air preparation, pneumatic directional valve

Modular hose, water push in fitting

Ball valve, brass connector

WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder

Our production is strictly under the control of ISO9001: 2000, and many products get CE approval. Since founded in 1997, we have marketed over 70 countries and firmly established our reputation for the excellence of our design, quality, service and pricing.
