XPS Insulation Foam Board Extrusion Line
Price: |
US $ 170000-200000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Product Description
XPS Insulation Foam Board Production Line
Application & Features:
Comparing with other traditional insulation materials, such as EPS, PU and Rock wool, XPS is improved in insulation, moisture proof, compressive strength, durability, convenient installation and low cost.
XPS is widely applied to heat preservation and insulation systems, moisture proof and obstruct systems, with promising potential market.

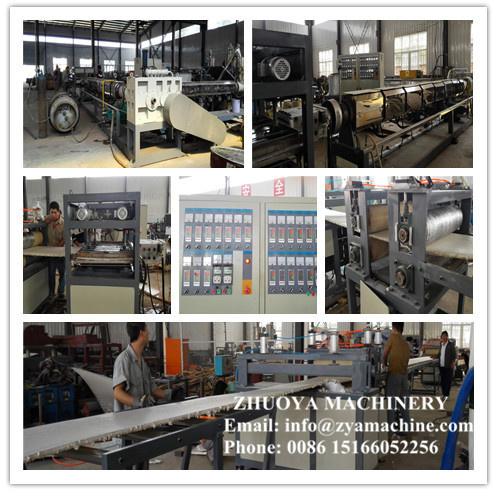

Main configuration:
Feeding system/First extruder/Hydraulic mesh exchanger/
Second extruder/Mould/Calibrator/First haul-off unit/Longitudinal cutter/Cross cutter/Second haul-off unit/Controlling system/Packaging system.Model | Unit | XPS-135/150 | XPS-150/170 | XPS-170/200 |
Extruder |
| 135/150 | 150/170 | 170/200 |
Heating power | kw | 50 | 52 | 58 | 68 | 78 | 100 |
Driving motor power | kw | 75 | 90 | 90 | 110 | 110 | 132 |
Thickness of board | mm | 20,25,30,40,50,60,75,80 | 20,25,30,40,50,60,75,100 | 40,50,60,75,100,120 |
Width of board | mm | 600,900 | 600,900,1200 | 600,900,1200 |
Length of board | mm | 1200,1250,2450,2500 |
Edge of board |
| SS flat head (SL lap joint, RC rain groove) |
Output | kg/h | 280-320 | 300-360 | 380-500 |
Installed capacity | kw | 300 | 380 | 400 |
Dimensions(L×W×H) | mm | 35000×10000×4000 | 35000×10000×4000 | 35000×10000×4000 |
Total weight | T | 28 | 30 | 33 |
Prod Model: |
SJ135, SJ150 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output: |
250kg/H |
Thickness: |
20mm-60mm |
Width Scope: |
Max.800mm |
Screw Size: |
Single Screw |
Board Layers: |
Single Plate |
Automation: |
Automatic |
Computerized: |
Non-Computerized |
Certification: |
ISO9001:2008 |
Product Type: |
XPS Board |
QingDao Zhuoya Machinery Co., Ltd. is the science and technology knowledge-intensive corporation integrated with research and development, fabrication, sales and service, professionally engaged in the manufacture of plastics processing complete equipment.
The company always obeys the principle of "credit is the basis, quality is the life, innovation is the pursue, service is the main ", keeps the quality promise for customers, focuses on introducing and cultivating talent, cooperates with many science and research institutes, has strong technology power and perfect testing means, integrates advanced technology advantages and rigid equipments and has introduced many technologists with working experience in research and development and fabrication of plastics processing whole equipments, and understanding and experience accumulation in plastics process and plastics machinery design matching; All of these have ensured high quality and excellent performance of our fabrication of plastics machinery equipments.
