Yao Borosilicate Glass Tube

Yao Borosilicate Glass Tube
Price: US $ 0.1-0.3/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: T/T
The advantages of borosilicate glass consist in its multifunctionalism. Borosilicate glass combines high heat resistance with high stability against chemical aggressions. The long-term service temperature is around 450°C. Furthermore, the glass is resistant to water, neutral and acid solutions, strong acids and saline solutions as well as to chlorine, bromine, iodine and organic substances. These characteristics allow the application where soda-lime glass fails.Owing to its high optical translucency, borosilicate glass already transmits part of UV-B radiation and UV-A radiation very much.

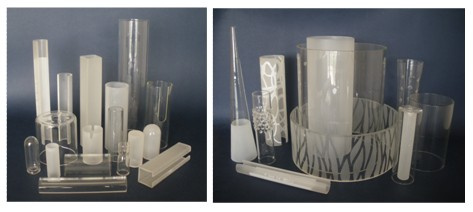

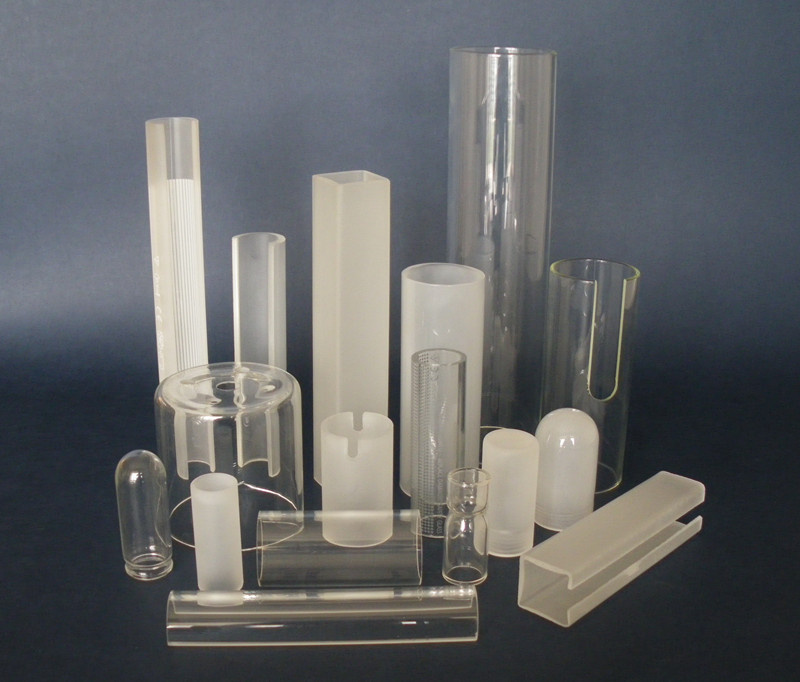

Yao glass supply wide range of borosilicate and quartz glass tube. With special technic of heat moulding,precision machines provide the pipes to obtain bordering, flanges, amendments of diameter, hollowing, with very restricted tolerances.Colored borosilicate glass tubes are also available.

Edge treatment
For the production of thermally toughened safety glass, the minimum requirement of edge finishing is an arrissed edge. In many cases, however, we recommend a ground edge due to stability reasons. The edge finishing is made on round and form grinding machines, double edgers as well as on CNC-working units. Our standard edge finishing is the C-edge (= pencil edge). On request, we can also produce other edge forms such as straight edge with arriss, bevelled edge and facets.On basis of ground edge,we make farther machining to provide polished edge, which is the best finish of edge.In this way, you can see throught from the side of glass.
Edge typePolished edgeGrinded edgeCut chamfered edge
Surface finishclearsandblastedSilk-screen printing

Holes
The holes in the glass are produced with tolerances different from those known of metal working due to the characteristics of the material glass. Glass is first slightly drilled from the bottom and then drilled through the complete glass from the top with a hollow diamond drill. Holes are generally available in diameters of 4 to 240 mm. Bigger hole diameters and inner edge treatment such as polishing are possible on request.

Printing
We make decoration of the glass surface by silk screen printing with ceramic colours. The colour is first applied to the glass surface, dried up and finally, during the process of thermal toughening, it melts with the glass so that a decoration which is resistant to scratches is produced. Apart from ceramic colours, organic glass colours may be used.
Prod Model: YAO-0110301
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Glass
Style: Modern
Shape: Round
Shanghai Yao Glass Co., Ltd have 15 years' experience as one of the leading manufacturers and exporters of lighting glass in China. Continuous innovation and use of the latest technology make us an expert partner worldwide in lighting field. We have the highest standards of excellence and experience in glass manufacturing and material choosing. With these standards we can ensure the high-quality products and the prosperous future for you.

Yao Glass's products include Tempered glass, Blown glass, Pressed glass, Crystal glass, and Borosicilcate glass. Please don't hesistate to view our web showroom to get more info. Of our products.
